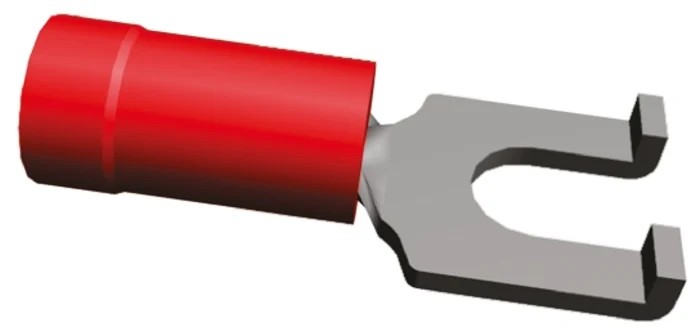

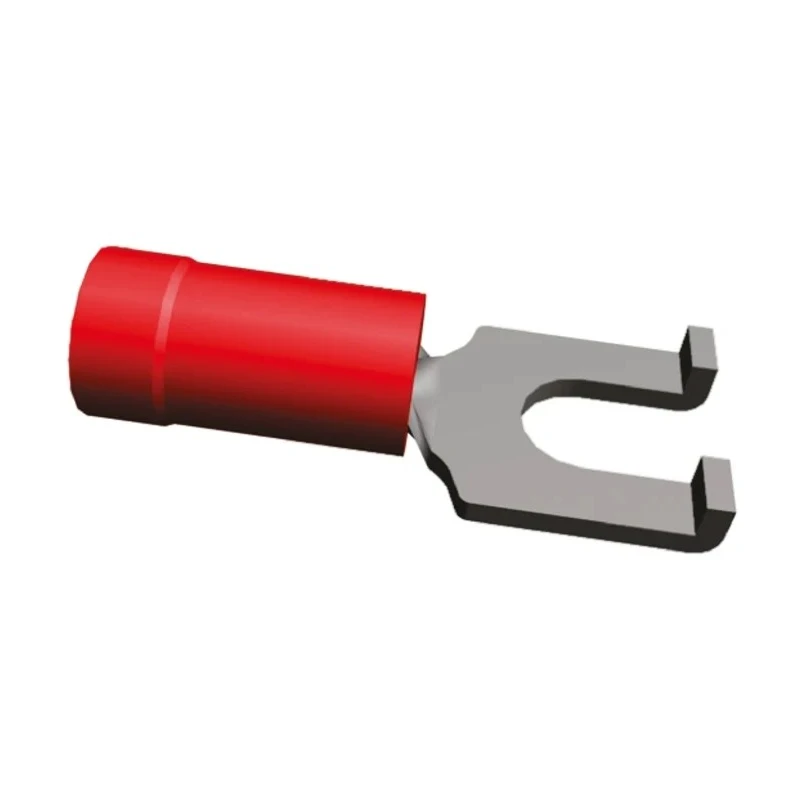

TE Connectivity PLASTI-GRIP Insulated Fork Terminal 22 AWG to 16 AWG M4 Stud Size Vinyl Red 324169
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 324169 |
| Width | 10.57mm |
| Insulation | Insulated |
| Overall Length | 21.39mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M4 |
Key Features
- Constructed from high conductivity copper with tin plating for reliable electrical contact.
- Features a 94V-0 rated high dielectric strength vinyl insulated sleeve for safety.
- Serrated inner barrel ensures secure crimping with maximum tensile strength.
- Funnelled entry aids easy insertion of stripped wires.
- Compact overall length of 21.39 mm with 10.57 mm width for tight installations.
- Suitable for industrial, electrical, and electronic wiring applications.
- Red color indicates wire size compatibility from 0.26 mm² to 1.65 mm².
- RoHS compliant for environmental and safety standards.
Product Description
TE Connectivity 324169 PLASTI-GRIP insulated fork terminal offers a high-quality solution for terminating wires in electrical and electronic systems. Engineered for wire sizes ranging from 22 AWG to 16 AWG, this terminal features a robust copper contact with tin plating that ensures excellent conductivity and corrosion resistance.
The terminal incorporates a red vinyl insulation sleeve rated at 94V-0 for high dielectric strength and safety, suitable for various industrial and manufacturing environments including HVAC, automotive, and electrical panel assemblies. Its serrated inner barrel design provides maximum electrical contact and tensile strength after crimping, ensuring a durable, reliable connection.
The funnelled entry on the wire barrel simplifies the insertion of stripped wires, promoting better installation efficiency and reducing the risk of damage. With an overall length of 21.39 mm and a width of 10.57 mm, the compact form factor facilitates easy use in dense wiring configurations.
This Fork Terminal supports stud size M4 and covers a wire size range from 0.26 mm² to 1.65 mm², making it versatile for many wiring tasks. The red color coding assists in quick identification of wire gauge compatibility.
TE Connectivity's PLASTI-GRIP series terminals are designed with quality and safety in mind, ensuring compliance with industry standards without sacrificing performance. These terminals are ideal for use in industrial manufacturing, electrical maintenance, construction wiring, and laboratory equipment setups.
Constructed from high conductivity copper with tin plating for reliable electrical contact. Features a 94V-0 rated high dielectric strength vinyl insulated sleeve for safety. Serrated inner barrel ensures secure crimping with maximum tensile strength.
Funnelled entry aids easy insertion of stripped wires. Compact size with 21.39 mm length and 10.57 mm width. Supports wire sizes 22 AWG to 16 AWG and M4 stud size. Red insulation indicates wire size range from 0.26 mm² to 1.65 mm².
Suitable for industrial, electrical, automotive, and HVAC wiring applications. Explore EnvMart's extensive category of wire terminals and splices for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes ranging from 22 AWG to 16 AWG, which corresponds to a cross-sectional area of 0.26 mm² to 1.65 mm².
It is compatible with an M4 stud size, making it suitable for various electrical connections.
The terminal is constructed from high conductivity copper with tin plating, ensuring reliable electrical contact and corrosion resistance.
The overall length of this terminal is 21.39 mm and its width is 10.57 mm, allowing for compact installations.
It features a vinyl insulation sleeve rated at 94V-0, providing high dielectric strength for safety in electrical applications.
The serrated inner barrel design ensures secure crimping with maximum tensile strength, enhancing the reliability of the electrical connection.
The funnelled entry aids in the easy insertion of stripped wires, promoting better installation efficiency and reducing the risk of damage.
Yes, it is RoHS compliant, adhering to environmental and safety standards for electronic components.
This terminal is suitable for various industrial, electrical, automotive, and HVAC wiring applications.
The terminal is red, which indicates its wire size compatibility, aiding in quick identification during installation.
The terminal is manufactured in India, ensuring compliance with applicable standards.
This terminal belongs to the PLASTI-GRIP series, which is designed for quality and safety in electrical connections.
