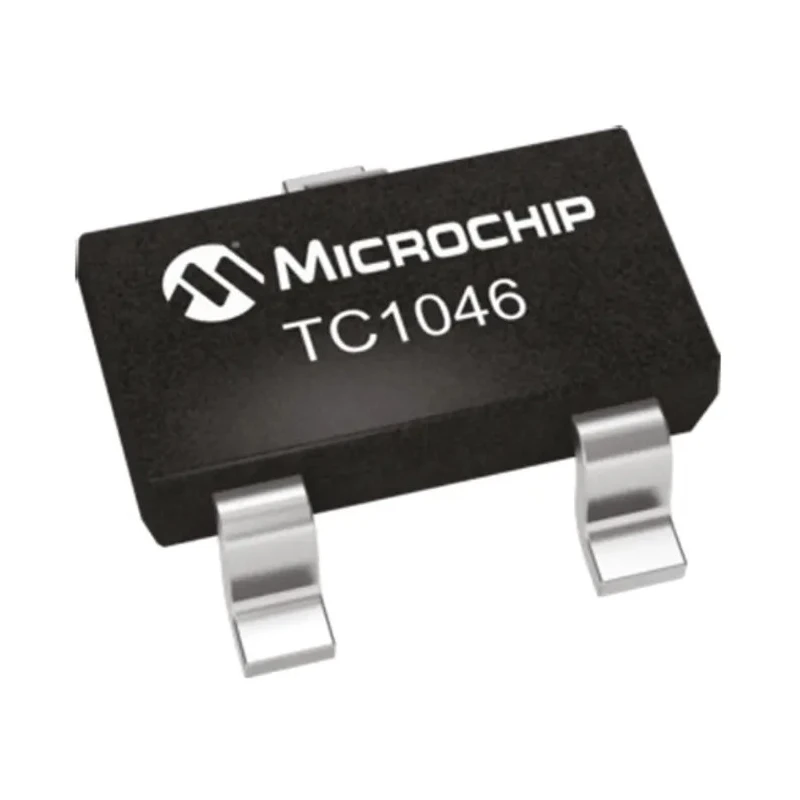

Microchip Voltage Output Voltage Temperature Sensor Surface Mount 3-Pin SOT-23 ±2°C Accuracy TC1046
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | TC1046 |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | TC1046 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 4.4V |
| Minimum Supply Voltage | 2.7V |
| Sensor Gain | 6.25mV/°C |
Key Features
- Operates in supply voltage range of 2.7 V to 4.4 V.
- Measures temperatures from -40°C to +125°C.
- Offers analogue output proportional to temperature.
- Compact surface-mount SOT-23 package with dimensions 3.05mm × 1.4mm × 1.02mm.
- Sensor gain of 6.25 mV/°C for precise temperature correlation.
- Suitable for automotive-independent and mobile applications.
- Designed for temperature regulation, controlled fans, and measurement applications.
- Reliable 3-pin design ensures stable operation.
Product Description
Microchip TC1046 is a voltage output voltage Temperature Sensor featuring analogue interface and surface mount 3-pin SOT-23 package. This sensor achieves ±2°C accuracy over a temperature range from -40°C to +125°C, making it suitable for precise temperature monitoring and control in electronics, mobile devices, and temperature regulation systems.
The device operates with a supply voltage between 2.7 V and 4.4 V, providing a linear voltage output proportional to temperature via a sensor gain of 6.25 mV/°C. Its compact dimensions (length 3.05 mm, width 1.4 mm, height 1.02 mm) enable seamless board integration in space-constrained applications.
Typical industrial and commercial uses include temperature regulation, temperature controlled fans, mobile phones, and precision temperature measurement needs. This analogue sensor outputs voltage linearly correlated to temperature, simplifying interfacing and signal conditioning in various embedded systems.
The package type is SOT-23, optimized for surface mount technology, promoting reliable soldering and robust mechanical stability. While it is not specified for automotive standards, the sensor suits a wide range of general electronics thermal sensing applications.
Its 3-pin configuration ensures easy connectivity and stable electrical performance. The TC1046 series sensors are designed to meet demanding industrial and laboratory requirements for temperature-to-voltage conversion.
Operates with supply voltage from 2.7 V to 4.4 V. Analogue voltage output proportional to measured temperature. Temperature measurement range from -40°C up to +125°C. Compact SOT-23 package dimensioned 3.05 mm × 1.4 mm × 1.02 mm.
Sensor gain rated at 6.25 mV/°C. Surface mount design for PCB integration. Ideal for industrial, commercial, laboratory, and consumer electronics applications. Accuracy guaranteed within ±2°C. 3-pin interface enables straightforward system integration.
EnvMart offers this sensor for customers needing reliable and precise temperature sensing solutions across various electronic and industrial fields.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures temperatures from -40°C to +125°C.
The TC1046 has an accuracy of ±2°C.
This model operates with a supply voltage between 2.7 V and 4.4 V.
It offers an analogue voltage output that is proportional to the measured temperature.
The dimensions of the SOT-23 package are 3.05 mm in length, 1.4 mm in width, and 1.02 mm in height.
The sensor gain is rated at 6.25 mV/°C, allowing for precise temperature correlation.
It features a 3-pin configuration for easy connectivity.
It is suitable for temperature regulation, controlled fans, and precision temperature measurement in various electronic devices.
This model is designed for surface mount installation.
It uses an analogue interface for output.
The TC1046 is manufactured in India.
Typical uses include applications in mobile phones, industrial, commercial, and laboratory settings for temperature sensing.
