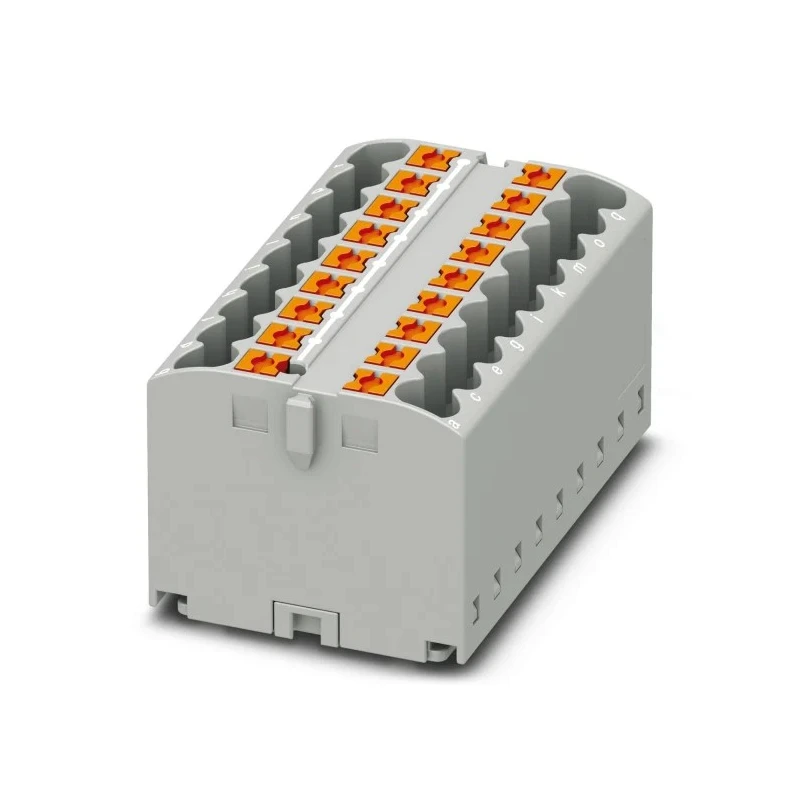

Phoenix Contact Grey PTFIX Series Distribution Block 18-Way 24A 500V 3273438

Phoenix Contact 3273438 is a grey PTFIX Series distribution block designed to provide an efficient 18-way power distribution solution with a current rating of 24 A and voltage rating of 500 V. It features a robust polyamide housing that offers superior insulation and protection against electric shock, making it well suited for industrial, manufacturing, and commercial electrical applications.

This distribution block includes push-in connection technology that allows for fast and reliable wiring of solid or stranded conductors without the need for additional tools. It supports conductors with ferrules from 0.34 mm² and accommodates cables ranging from 0.14 to 4 mm² cross-sectional area or 26 to 12 AWG sizes.

The block is highly versatile for mounting; it can be installed on DIN rails, directly, or with adhesive methods, enabling flexible configurations while saving installation space due to its compact size (46.5 mm width, 28.2 mm length, and 21.2 mm height). The transverse mounting design further optimizes space on DIN rails.

Engineered to operate reliably in harsh conditions, it withstands temperatures from -35°C up to 105°C and complies with CSA safety standards, ensuring durability and safety in demanding environments.

Compatible with standard plug-in bridges for ease of expansion, it offers options for 6, 12, and 18 terminal points, supporting scalable electrical distribution systems. The block also includes testing options for all common test probes, facilitating maintenance and quality checks.

The block features push-in connectors allowing quick and tool-free conductor connections. Supports cable cross-sectional areas from 0.14 to 4 mm² and wire sizes from 26 to 12 AWG. Constructed from polyamide housing providing excellent insulation and shock protection.

Designed for DIN rail, direct or adhesive mounting for versatile installation options. Compact dimensions of 46.5 mm width, 28.2 mm length, and 21.2 mm height save space in setups. Operating temperature range from -35°C to 105°C ensures reliable performance in various environments.

Meets CSA standards for safety and durability. Suitable for industrial electrical distribution, manufacturing, and commercial power distribution applications.

This product is ideal for electrical distribution needs across industrial, manufacturing, water treatment plants, commercial power systems, and HVAC installations. For those seeking reliable, efficient, and compact power distribution, this PTFIX series distribution block by Phoenix Contact is an optimal choice. Explore more Distribution Blocks and other power connector solutions in the Electronics & Electricals category on EnvMart.
