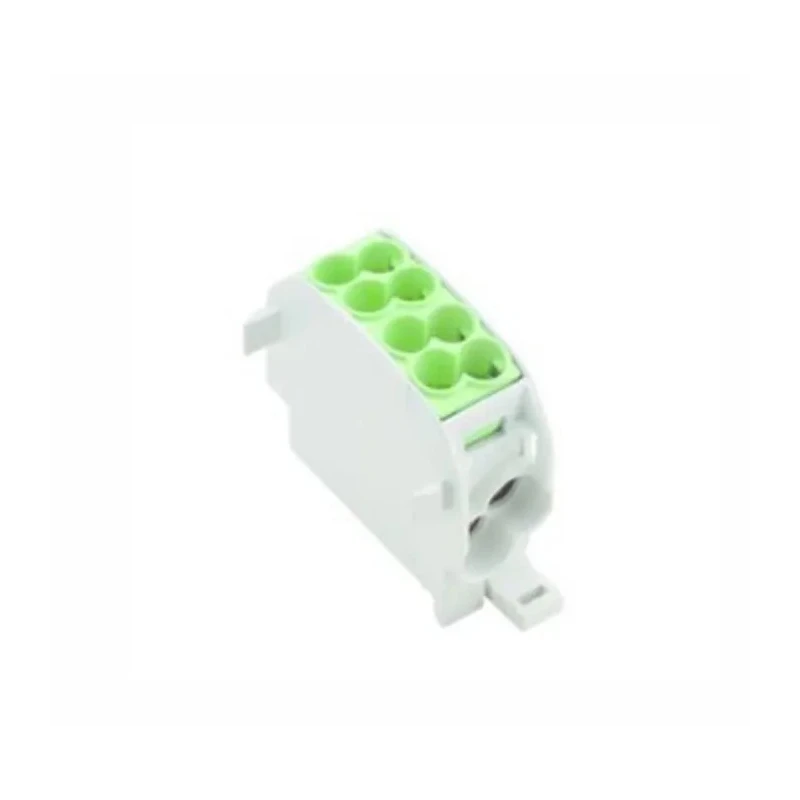

Weidmüller Distribution Block 2 Way 1 kV AC 1kV DC 152A Green 1560650000

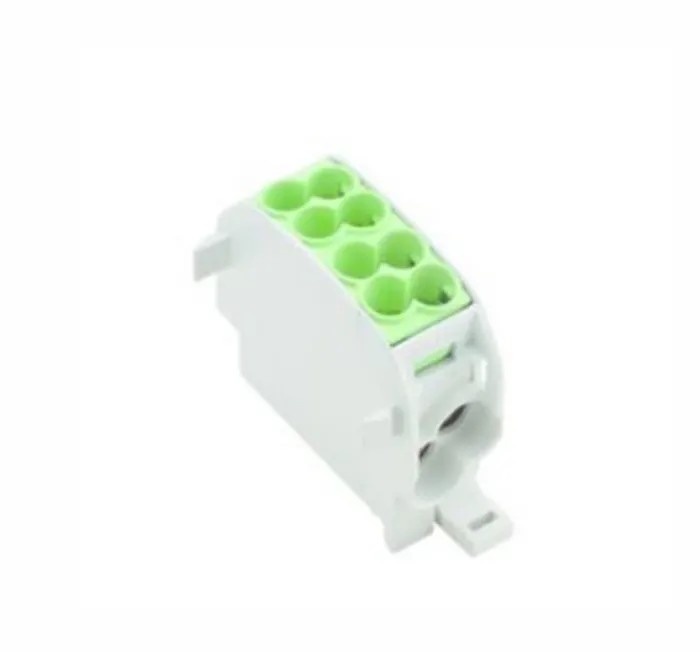

Weidmüller 1560650000 Distribution Block is a 2-way power distribution block designed to safely distribute electricity with a nominal current rating of 152A and voltage ratings of 1 kV AC and 1 kV DC. It features a robust Wemid housing which ensures electrical insulation, durability, and safety in demanding industrial and commercial electrical installations. Its green housing color aids in easy identification in panel assemblies.

This distribution block employs screw clamp terminals, suitable for secure wire connections on both load and line sides, supporting wire sizes from 14 AWG on the load side and 14 to 4 AWG on the line side. The terminals are designed for mounting on symmetric 'Top Hat' DIN rails (BS5584:1978, EN 50022), ensuring compatibility with standard electrical enclosures and systems.

The device operates reliably over a wide temperature range from -50°C up to 130°C, making it suitable for various harsh environments encountered in industrial, manufacturing, electrical panel building, and power distribution applications. The current bars are constructed from 10 mm electrolytic copper to ensure superior conductivity and loading beyond nominal ratings.

The housing is made from nylon 6.6, providing self-extinguishing properties to UL94V-0 standards and is free from cadmium and halogen substances, aligning with modern safety and environmental requirements.

Key features include screw connection technology, compatibility with terminal rails and mounting plates, and compliance with touch-proof safety standards BS 3042. This product is ideal for industrial automation panels, electrical control systems, and power supply distribution networks.

The distribution block supports 2 ways for power distribution. Rated for voltage of up to 1 kV AC and 1 kV DC ensuring high reliability. Current carrying capacity is 152 amperes for robust electrical performance. Housing is made of Wemid material, providing durability and insulation.

Screw type terminations on load and line sides for secure connection. Wire size support: Load side 14 AWG; Line side 14 to 4 AWG wires. Operates under temperatures ranging from -50°C minimum to 130°C maximum. Designed for mounting on Top Hat DIN Rail compliant with BS5584:1978, EN 50022.

Color coded green for easy identification and safety compliance.
