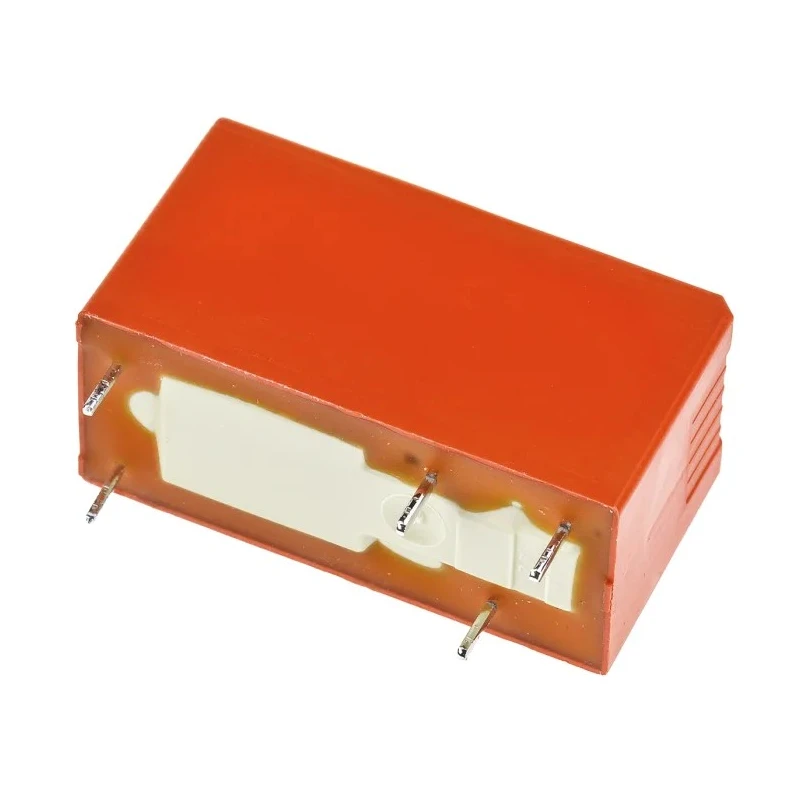

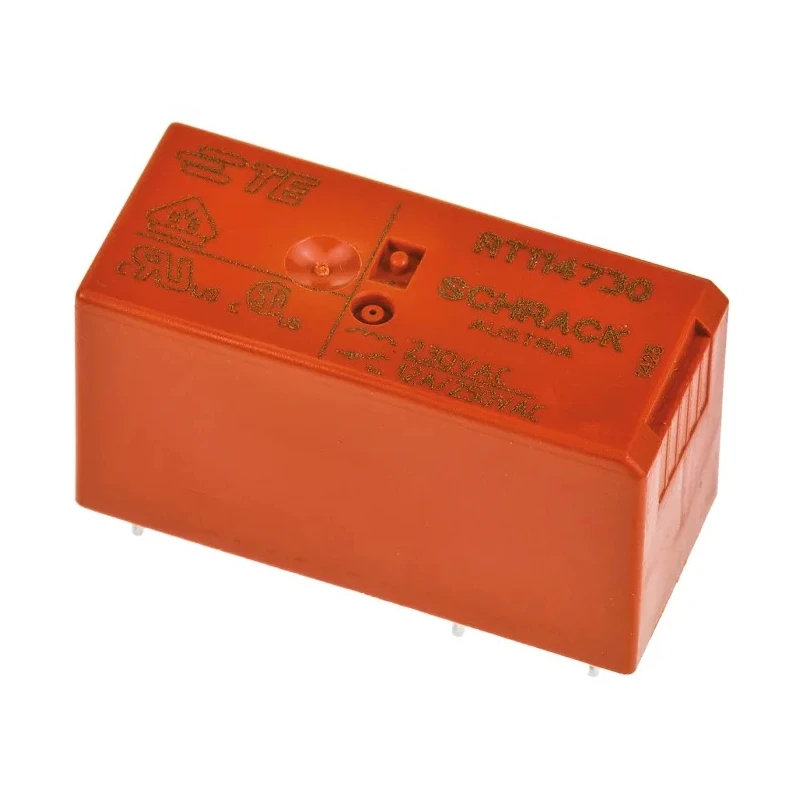

TE Connectivity Power Relay PCB Mount SPDT 12A Switching Current, 230V AC Coil RT114730
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT114730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The relay has a coil voltage of 230V AC with a coil resistance of 32.5 kΩ.
- Designed for switching AC voltages up to 400V with a power rating of 3 kVA.
- Compact dimensions include a length of 29mm, width of 12.7mm, and height of 15.7mm.
- Contact configuration is Single Pole Double Throw (SPDT) using Silver Nickel Alloy material for durability.
- Operating temperature range from -40°C to 70°C ensures reliability in harsh environments.
- Mount type is PCB with solder terminal connection suitable for through-hole mounting.
- Coil power consumption is low at 250 mW, enhancing energy efficiency.
- Complies with IEC 60335-1, RoHS, and VDE standards ensuring quality and safety.
Product Description
TE Connectivity RT114730 Power Relay is a precision-engineered electrical component designed for PCB mounting in power relay circuits. With a coil voltage of 230V AC and a high switching current capacity of 12A, this SPDT relay facilitates reliable switching in industrial automation, heating control systems, security lighting, and domestic applications.
This relay belongs to the RT1 series, characterized by 3.5mm pinning and flux-proof construction, enhancing durability and performance in demanding environments. Its compact footprint measures 29mm in length, 12.7mm in width, and 15.7mm in height, making it ideal for densely populated circuit boards.
The relay contacts are made from Silver Nickel Alloy, ensuring excellent conductivity and long life through frequent switching cycles. Operating within a wide temperature range of -40°C to 70°C provides a high tolerance for diverse environmental conditions, suitable for various industrial and commercial applications.
Key design features include a coil resistance of 32.5 kΩ and coil power of 250 mW, supporting efficient energy usage. The relay can switch AC voltages up to 400V with a maximum switching power of 3 kVA, providing robust functionality for heavy load switching.
Certified to meet IEC 60335-1, RoHS, and VDE standards, the TE Connectivity RT114730 ensures compliance with international safety and environmental requirements. This makes it suitable for integration in automation systems, interface modules, and other electrical control setups.
The relay’s PCB mount and solder terminal interface allow easy integration into printed circuit boards for streamlined assembly. Its SPDT contact configuration supports flexible switching options in circuit design. Applications include industrial automation, heating control, security lighting, and domestic electrical devices.
The compact RT1 series relay is flux proof, protecting the device from contaminants and improving reliability. Manufactured in Austria, the component offers high quality and durability. Discover more high-quality relays and power switching components from EnvMart for professional electrical and automation solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 230V AC.
This model has a maximum switching current capacity of 12A.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
This relay can switch AC voltages up to 400V.
The contacts are made from Silver Nickel Alloy, which provides excellent conductivity.
The operating temperature range is from -40°C to 70°C.
The coil resistance is 32.5 kΩ.
The coil power consumption is low at 250 mW, enhancing energy efficiency.
It complies with IEC 60335-1, RoHS, and VDE standards.
This relay is designed for PCB mounting with a solder terminal connection.
It is suitable for applications in industrial automation, heating control, security lighting, and domestic electrical devices.
