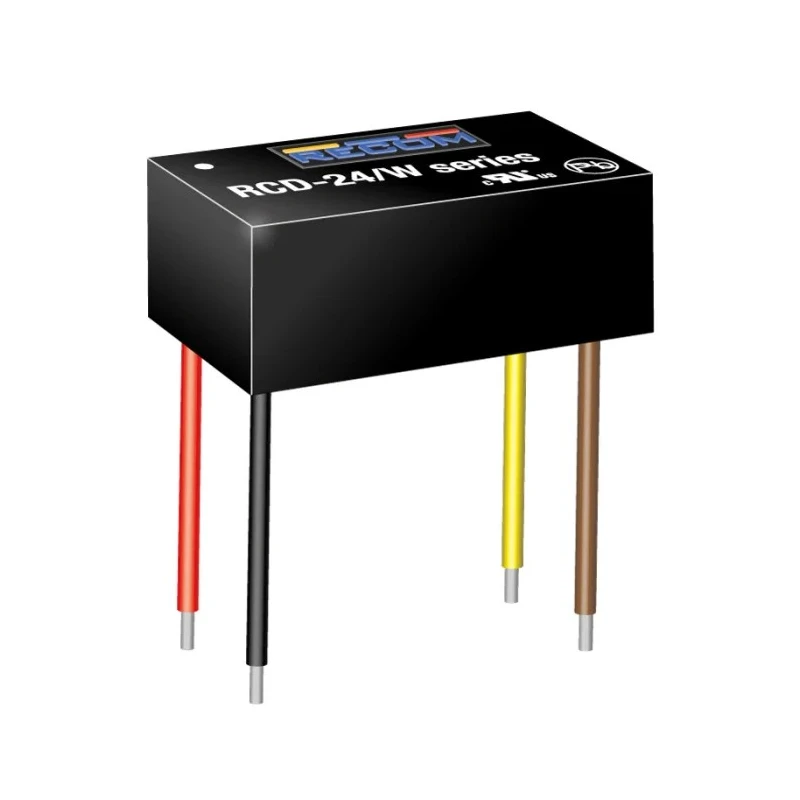

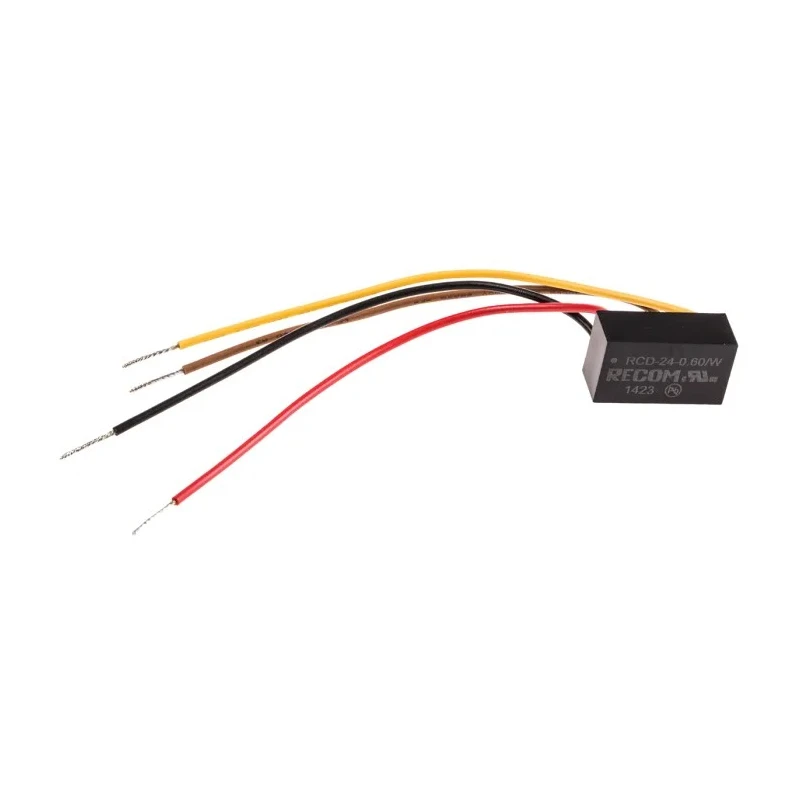

Recom IP67 Enclosed Constant Current LED Driver, 1 Output, 2V to 35V DC, 21W, 600mA PWM
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | IP67 |
| IP Rating | IP67 |
| Series | RCD-24 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Solder |
| Maximum Output Power | 21W |
| Input Voltage | 36V dc |
| Output Voltage | 2, 35V dc |
| Power Dissipation | 800mW |
| Standards/Approvals | UL, RoHS, EN |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Driver Current | 600mA |
| LED Voltage | 36, 4.5V |
| Recom IP67 1 Output LED Driver, 35V dc, 21 W, 700mA PWMBrand | Recom |
| Recom IP67 1 Output LED Driver, 2V, 35 V, 18 W, 500mA PWM LED DriverBrand | Recom |
Key Features
- Operates with input voltages ranging from 4.5 V to 36 V DC for versatile power supply compatibility.
- Outputs a constant current of 600 mA with output voltage from 2 V up to 35 V DC.

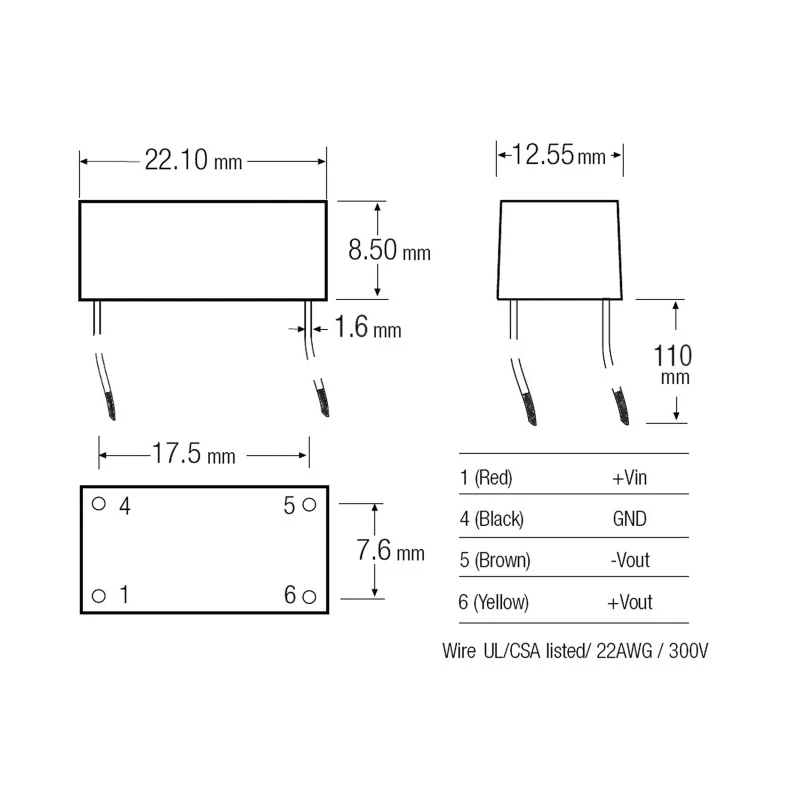

- Compact dimensions of 22.1 mm length, 12.6 mm width, and 8.5 mm height facilitate easy installation in confined spaces.
- IP67 ingress protection rating ensures durability against dust and limited water immersion.
- Incorporates low quiescent current of 200 μA to minimize power consumption when switched off.
- Features a maximum ripple voltage of 150 mV to reduce electrical noise interference.
- Equipped with short-circuit protection to enhance system safety and reliability.
- Meets UL, RoHS, and EN standards ensuring compliance with industry regulations.
Product Description
Recom RCD-24-0.60/W is a high-performance constant current LED Driver designed for demanding industrial and commercial lighting systems. It features a robust IP67-rated enclosure that provides protection against dust ingress and temporary immersion in water, ensuring reliable operation in harsh environments.
This LED driver delivers a stable output current of 600 mA, with output voltages spanning from 2 V to 35 V DC, suitable for powering various LED array configurations with a maximum output power of 21 W. Its PWM dimming capability enables smooth brightness adjustment without flicker, ideal for energy-efficient lighting control.
The driver operates within an input voltage range of 4.5 to 36 V DC, allowing compatibility with common DC power supplies found in automotive and industrial settings. Its compact size (22.1 mm by 12.6 mm by 8.5 mm) facilitates integration in constrained spaces.
Energy efficiency is optimized with quiescent current as low as 200 μA during off states, and ripple voltage is minimized to 150 mV, reducing electrical noise that can interfere with sensitive electronics. The unit includes built-in short-circuit protection to prevent damage to the driver and connected LEDs under fault conditions.
Compliance with UL, RoHS, and EN standards guarantees the product meets stringent safety and environmental criteria. Typical applications include automotive lighting systems, warehouse illumination, and offshore installations where durability and consistent LED performance are critical.
Operates on a wide input voltage range from 4.5 V to 36 V DC. Provides constant current output at 600 mA with a maximum power rating of 21 W. Compact, enclosed design with an IP67 rating for dust and water resistance. Low power consumption in standby mode with 200 μA quiescent current.
Low electrical noise with maximum ripple voltage of 150 mV. Short-circuit protection enhances operational safety. Meets UL, RoHS, and EN regulatory standards. Suitable for automotive, warehouse, and offshore lighting applications.
Wired connections with solder terminals for secure installation.
This Recom LED Driver is an excellent choice for engineers and system integrators seeking a reliable, energy-efficient solution for LED illumination under challenging environmental conditions. Explore the full range of Recom LED drivers at EnvMart for your industrial and commercial lighting projects.
Explore more products in our LED Lighting Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range is from 4.5 V to 36 V DC.
The maximum output power is 21 W.
The dimensions are 22.1 mm in length, 12.6 mm in width, and 8.5 mm in height.
The output voltage can range from 2 V to 35 V DC.
Yes, it includes short-circuit protection to enhance system safety and reliability.
It supports PWM dimming for smooth brightness adjustment.
It meets UL, RoHS, and EN standards, ensuring compliance with industry regulations.
It uses solder terminals for secure installation.
The quiescent current is as low as 200 μA, minimizing power consumption when off.
It is suitable for automotive lighting systems, warehouse illumination, and offshore installations.
