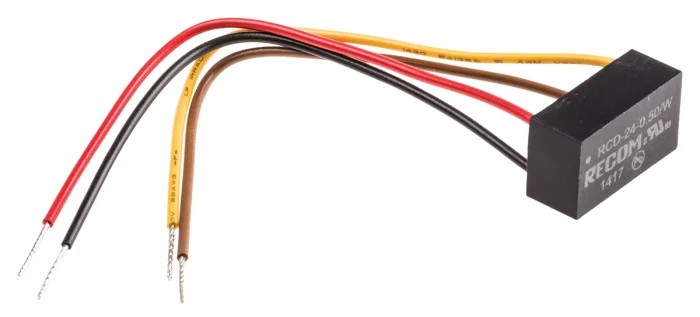

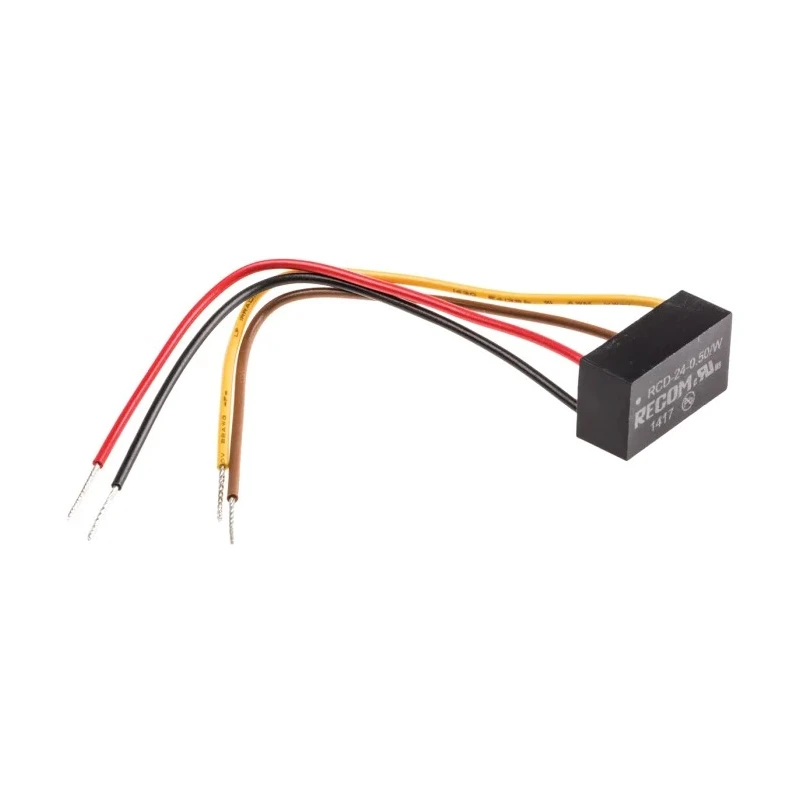

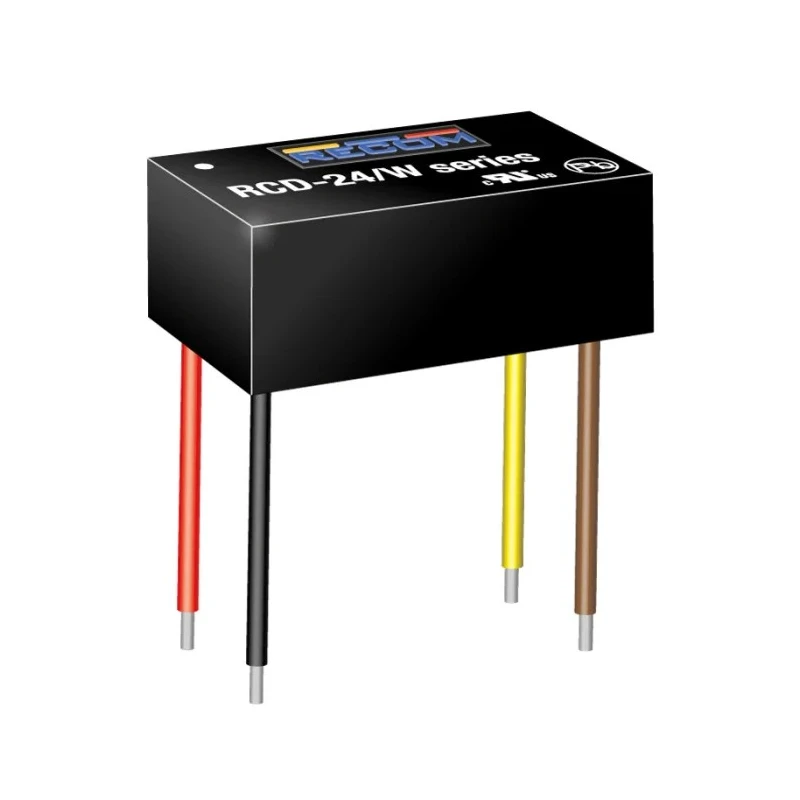

Recom IP67 1 Output PWM LED Driver, 2V to 35V Output Voltage, 18W Power, 500mA Constant Current
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | IP67 |
| IP Rating | IP67 |
| Series | RCD-24 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Solder |
| Maximum Output Power | 18W |
| Input Voltage | 36, 4.5V |
| Output Voltage | 2, 35V |
| Power Dissipation | 800mW |
| Standards/Approvals | UL, EN, RoHS |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Recom IP67 1 Output LED Driver, 35V, 17.5 W PWMBrand | Recom |
| Driver Current | 500mA |
| LED Voltage | 36, 4.5V |
| MEAN WELL IP67 1 Output LED Driver, 25V, 6 V, 17.5 W, 700mA LED DriverBrand | MEAN WELL |
| Recom IP67 1 Output LED Driver, 2V dc, 35 V dc, 21 W, 600mA PWM LED DriverBrand | Recom |
Key Features
- Operates within an input voltage range of 4.5V to 36V DC for diverse applications.
- Provides a constant current of 500mA using PWM dimming operation for precise LED control.
- Compact enclosed design with IP67 rating ensures protection against dust and water ingress.
- Features solder terminals and built-in short circuit protection for reliability and safety.
- High efficiency up to 96% reduces energy loss during operation.
- Compliance with UL, EN, and RoHS standards guarantees quality and safety.
- Operating mode is constant current suitable for driving multiple LEDs consistently.
- Power dissipation of 800mW enables stable thermal management in installations.
Product Description
Recom model RCD-24-0.50/W is a robust IP67-rated single output LED driver designed for electronic applications requiring a constant current supply. It operates over an input voltage range from 4.5V to 36V DC and supplies a regulated output current of 500mA with an output voltage range between 2V and 35V. The unit is constructed with an insulated plastic casing and epoxy resin potting for electrical safety and durability under harsh environments.
This PWM dimmable LED driver offers a maximum output power of 18W and features solder terminals that simplify installation. Its compact enclosed design meets IP67 ingress protection, making it resistant to dust and temporary water immersion, compliant with UL, EN, and RoHS standards. The driver includes protection mechanisms such as short circuit protection and features a high efficiency rating of up to 96%, reducing system energy waste.
Typical industrial and commercial applications include powering electronic advertising displays, signalling systems, and telecommunications equipment. Its constant current operating mode ensures stable LED performance and longevity. The product is manufactured in Taiwan, Province of China, assuring high production standards and reliability.
Input voltage range of 4.5 to 36V DC. Output current of 500mA constant current. Maximum output power of 18W. IP67 rated for dust-tight and water protection. High efficiency up to 96% minimizes power loss. PWM dimming operation supported.
Solder terminal type for connectivity. Protection against short circuits. Compliance with UL, EN, and RoHS standards. Compact enclosed configuration for durable installation.
Choose this Recom LED driver for reliable, efficient power delivery to sensitive lighting applications across industrial, commercial, and telecommunication environments. EnvMart recommends this product for advanced LED lighting system implementations requiring robust protection and constant current operation.
Explore more products in our LED Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within an input voltage range of 4.5V to 36V DC.
The maximum output power is 18W.
It supplies a constant output current of 500mA.
The output voltage range is between 2V and 35V.
This model supports PWM dimming operation for precise LED control.
It features a compact enclosed design with an IP67 rating, ensuring protection against dust and water ingress.
It includes built-in short circuit protection for reliability and safety during operation.
It is compliant with UL, EN, and RoHS standards, ensuring quality and safety.
It features solder terminals for connectivity.
Typical applications include powering electronic advertising displays, signalling systems, and telecommunications equipment.
The power dissipation is 800mW, enabling stable thermal management in installations.
It is manufactured in Taiwan, Province of China.
