Recom Enclosed IP67 Rated PWM Constant Current LED Driver 2V Output, 35V, 10.5W, 300mA

Free Delivery in India | Lowest Global Shipping Charges

Recom Enclosed IP67 Rated PWM Constant Current LED Driver 2V Output, 35V, 10.5W, 300mA

Name: Recom Enclosed IP67 Rated PWM Constant Current LED Driver 2V Output, 35V, 10.5W, 300mA
Brand: Recom
SKU: 204927
Price: 20.22 USD
Availability: InStock



Category LED Lighting Components Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Model	IP67
IP Rating	IP67
Series	RCD-24
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	1
Terminal type	Solder
Maximum Output Power	10.5W
Input Voltage	36, 4.5V
Output Voltage	2, 35V
Power Dissipation	800mW
Standards/Approvals	EN, RoHS, UL
Dimming Operation	PWM
Primary Type	DC-DC
Driver Current	300mA
LED Voltage	36, 4.5V
Recom IP67 1 Output LED Driver, 2V, 35 V, 10.5 W, 300mA PWM LED DriverBrand	Recom

Key Features

Suitable for LED lighting applications requiring waterproof and dustproof drivers.
Supports a wide input voltage range from 4.5V to 36V DC for versatile operation.

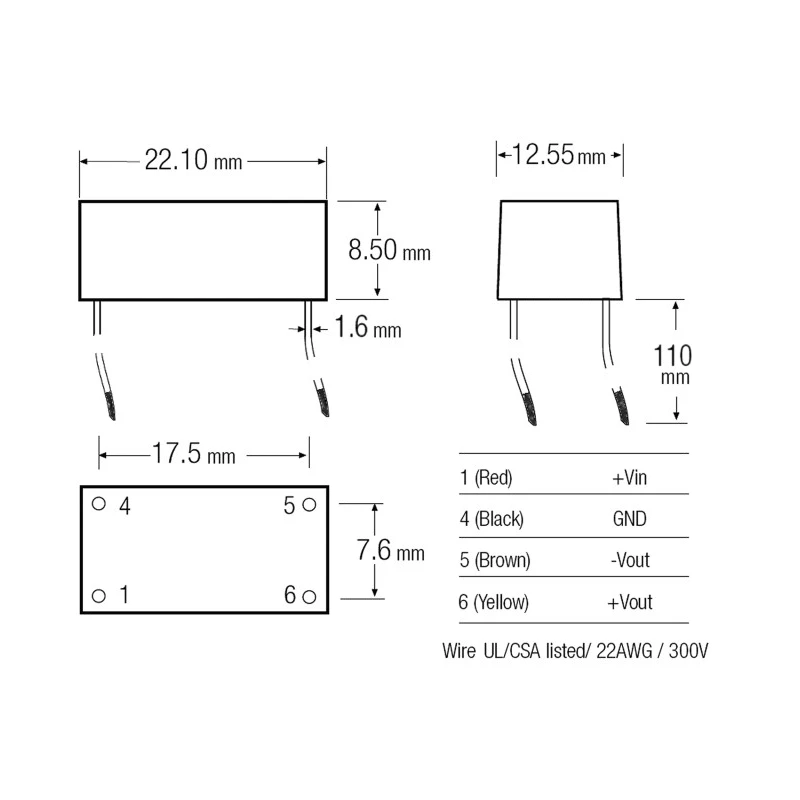

Compact dimensions of 22.1mm x 12.6mm x 8.5mm fit restricted spaces.
Efficient PWM dimming control with 0 to 4.35V DC dimming input.
Operating temperature from -40°C to +85°C ensures reliable performance in harsh environments.
High efficiency up to 96% with short circuit protection for safety.
Constant current output with ±2% accuracy and ±1% stability for consistent LED brightness.
Designed for single LED or series LED chain applications requiring precise current control.

Product Description

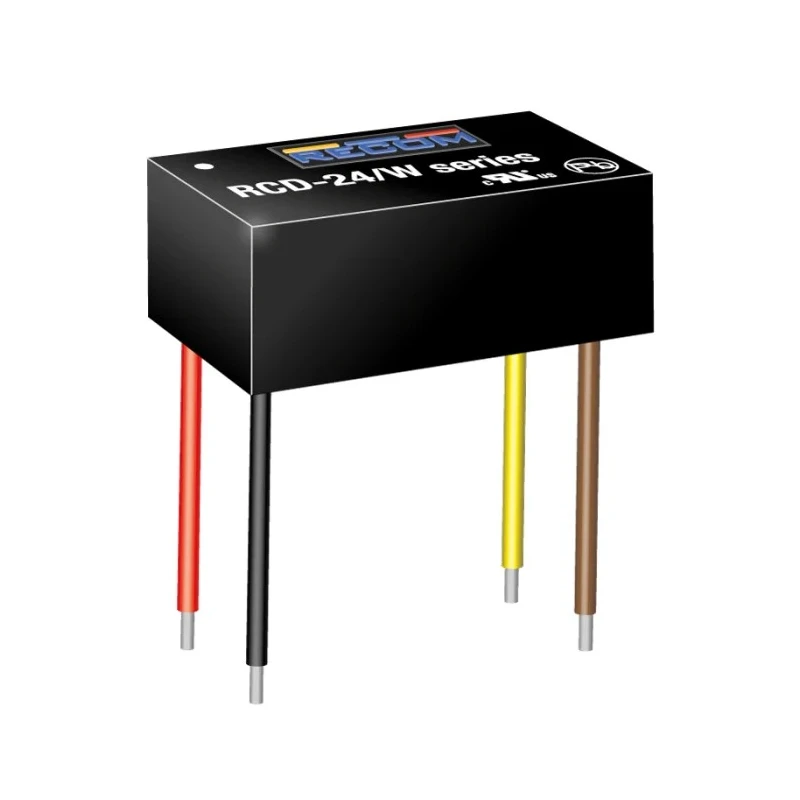

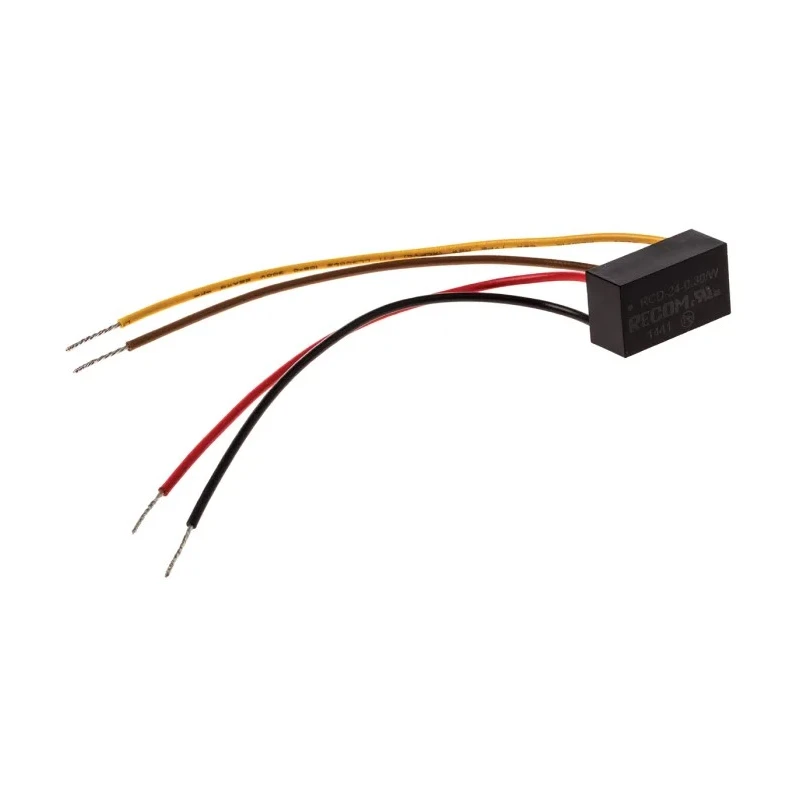

Recom RCD-24-0.30/W is a high-performance enclosed type PWM LED driver with a constant current output suitable for wireless and outdoor lighting applications. Featuring an IP67 rated enclosure, it provides protection against dust and water ingress, making it ideal for harsh industrial, commercial, and outdoor environments. The driver operates within a wide input voltage range of 4.5 to 36V DC and delivers a steady output current of 300mA with an accuracy of ±2% and stability of ±1%, supporting LED voltages from 2V to 35V.

This LED driver supports PWM dimming with an input control voltage range from 0 to 4.35V DC allowing precise brightness regulation for LED signage, office lighting, and downlights. With a maximum power rating of 10.5 Watts and a compact footprint measuring 22.1mm in length, 12.6mm in depth, and 8.5mm in height, it fits well into constrained installation spaces.

The robust design supports ambient temperatures from -40°C to +85°C ensuring reliable operation even in challenging temperature conditions. The device also includes short circuit protection enhancing operational safety and boasts up to 96% efficiency for energy saving and reduced heat generation.

Waterproof IP67 enclosure suitable for outdoor and industrial lighting. Wide input voltage range of 4.5V to 36V DC for various LED configurations. Constant current driver output with high accuracy and stability for uniform LED illumination.

PWM dimming operation compatible with standard industrial LED dimming control. Compact form factor for easy integration in limited space applications. Operating temperature from -40°C to +85°C tolerates harsh environments.

Short circuit protection for enhanced device safety. High efficiency up to 96% for energy savings and longevity. Applications include LED signs, downlights, office lighting, and outdoor LED lighting fixtures. Manufactured in Taiwan, Province Of China, assuring quality compliance with EN, RoHS, and UL standards.
