TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current DPDT RP421024

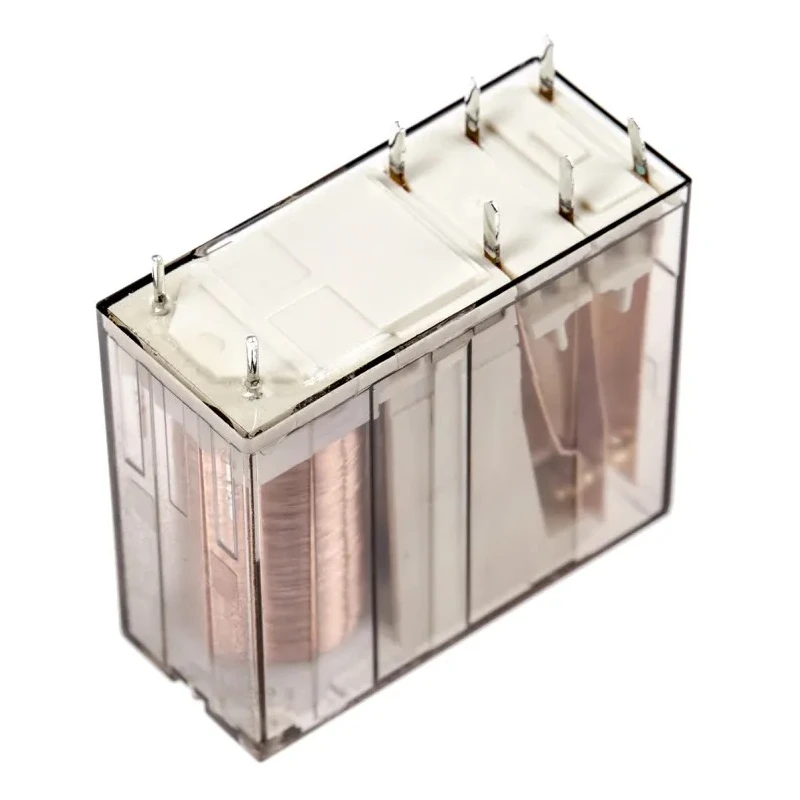

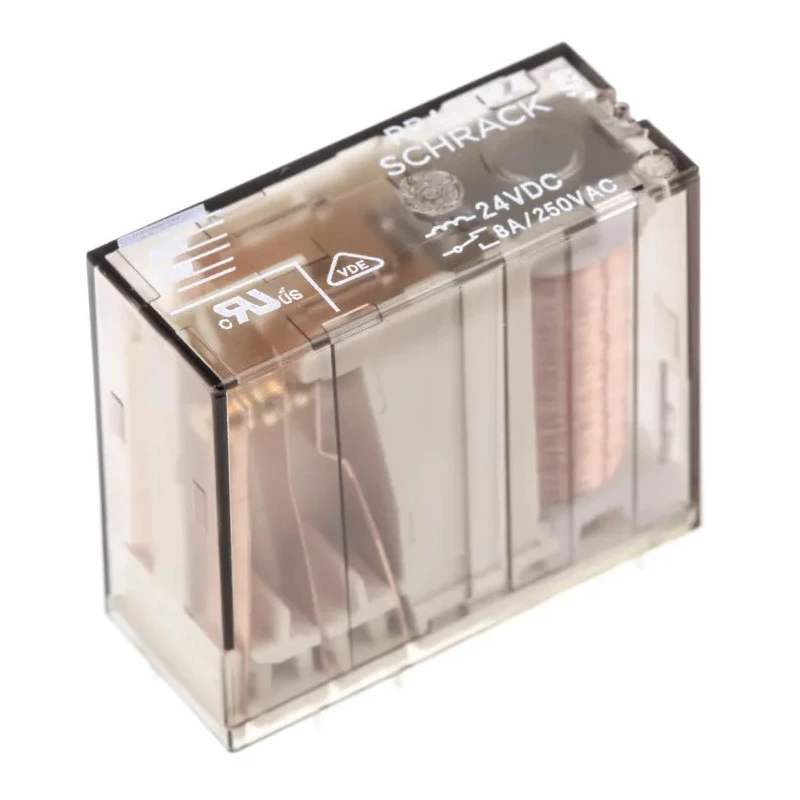

TE Connectivity RP421024 PCB Power Relay is a robust DPDT non-latching relay with a 24V DC coil voltage and an 8A switching current rating, designed for use in various industrial and commercial electrical applications. Its compact size and PCB mount design make it suitable for integration within complex electronic circuits.

This model features a coil resistance of 1.1 kΩ and coil power consumption of 500 mW, ensuring efficient operation with minimal energy use. The relay supports a maximum switching AC voltage of 400V AC, making it ideal for controlling moderate power loads safely.

The relay's contact system uses a silver alloy material providing excellent electrical conductivity and durability. It operates reliably within a temperature range of -40°C to 70°C, accommodating diverse environmental conditions commonly found in industrial equipment, domestic appliances, and heating control systems.

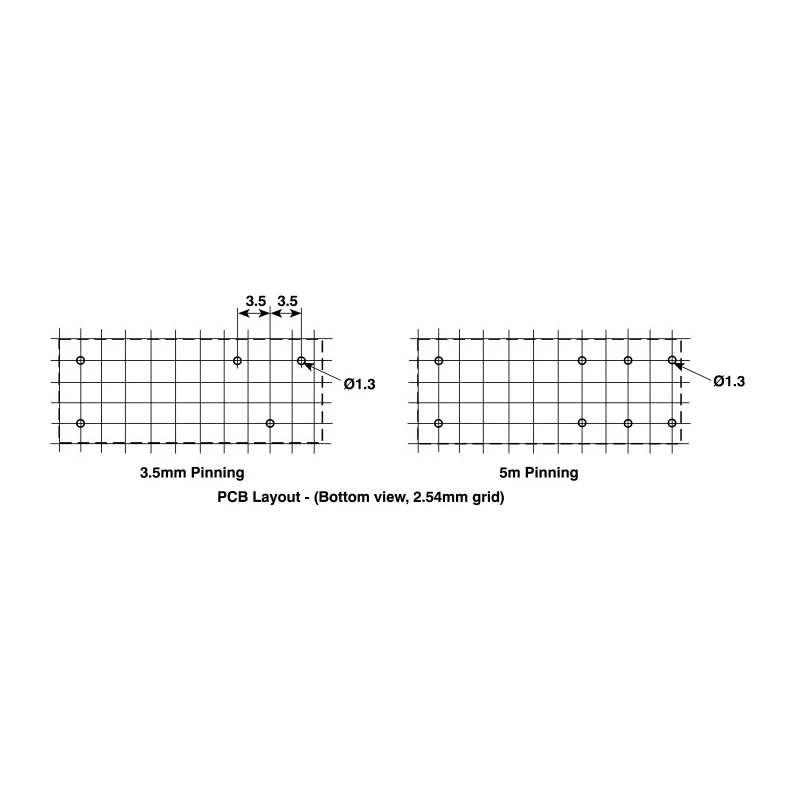

Terminal connections are of the solder type, allowing for secure PCB mounting and stable electrical contacts. Compliance with RoHS and IEC 61810 standards guarantees environmental safety and adherence to international quality norms.

Applications include power supply circuits, domestic equipment control, heating regulation, and other automation systems requiring dependable relay switching components. Non-latching relay with DPDT contact configuration.

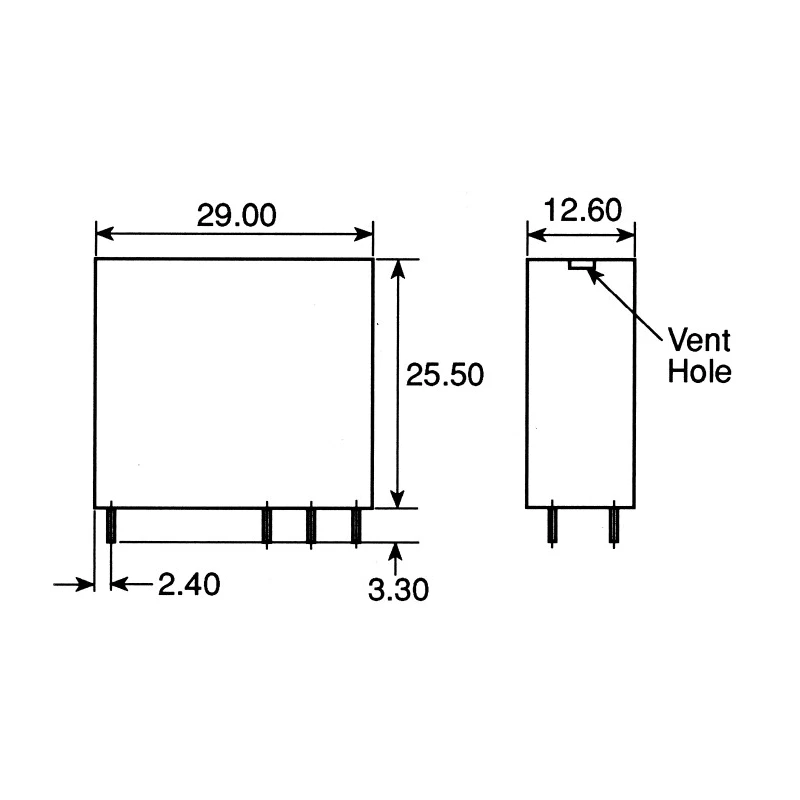

Operates at 24V DC coil voltage with 1.1 kΩ coil resistance. 8A switching current and 400V AC maximum switching voltage. Coil power consumption of 500 mW for energy-efficient operation. Compact device dimensions: 29mm length, 12.6mm width, 25.5mm height.

Durable silver alloy contacts ensuring stable electrical connection. Wide operating temperature range from -40°C to 70°C. PCB mount with solder type terminals. RoHS and IEC 61810 compliant for quality and safety assurance.

Manufactured in the Czech Republic. Explore more reliable Power Relays and electronic components on EnvMart to enhance your industrial or laboratory projects with trusted brands like TE Connectivity.
