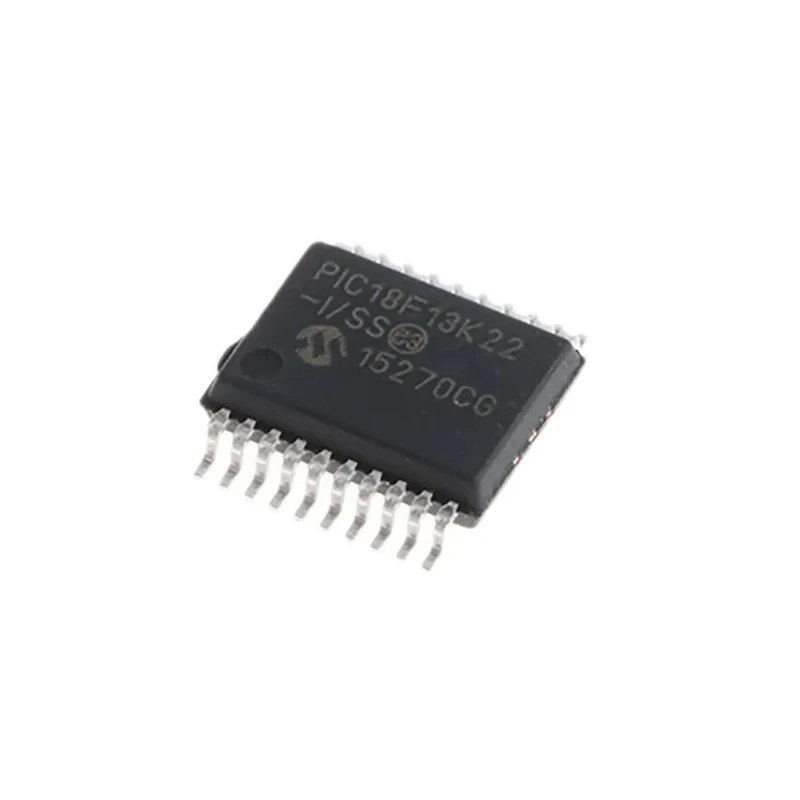

Microchip PIC18F13K22-I/SS 8-bit PIC18F Microcontroller 64 MHz 8 kB Flash 256 B RAM 20-Pin SSOP

Microchip PIC18F13K22-I/SS is a 8-bit microcontroller based on PIC18 architecture featuring a maximum clock frequency of 64 MHz and 8 kB of FLASH program memory combined with 256 bits of RAM. This device operates on a low operating voltage range of 2 V to 5.5 V, making it suitable for a variety of power-sensitive applications.

The microcontroller offers a 20-pin SSOP surface mount package, providing a compact footprint for space-constrained applications. With 24 programmable I/O pins, it supports flexible connectivity and peripheral control.

This PIC18F microcontroller integrates multiple peripherals and features that include 12 channels of 10-bit Analogue-to-Digital Converters (ADCs), three analogue comparators, a voltage reference module, and several timers including three 16-bit and one 8-bit timer. The device supports serial communication via the Enhanced Addressable Universal Synchronous Asynchronous Receiver Transmitter (EUSART) and Master Synchronous Serial Port (MSSP) modules that enable SPI and I2C protocols.

Designed with eXtreme Low Power technology, this microcontroller operates with exceptionally low current consumption - sleep mode features as low as 34 nA, facilitating design of battery-operated and energy-efficient systems. Protective features include Power-On Reset, Brown-Out Reset, Oscillator Start-Up Timer, and an extended watchdog timer to enhance system robustness in industrial and embedded control environments.

This microcontroller is ideal for industrial, consumer electronics, automotive, and embedded system applications demanding efficient processing with a rich set of integrated peripherals.

8-bit PIC18F architecture with 31 level hardware stack and 75 instructions. 64 MHz maximum CPU clock frequency delivering up to 16 MIPS performance. FLASH memory allows in-circuit serial programming and debugging. Operates under a temperature range of -40°C to 85°C suitable for demanding environments.

Low power consumption with multiple sleep and power-saving modes. Multiple timers, ADC channels and comparators integrated for versatile control and sensing applications. EUSART and MSSP modules enable flexible serial communication interfaces.

Robust system features like power-on reset, brown-out reset, and watchdog timer for reliability. Compact 20-pin SSOP package supports space-efficient design implementations.

Set provides a technically advanced microcontroller solution for embedded applications requiring low power consumption, reliable operation, and multiple I/O and communication options. Suitable for industrial control systems, consumer products, and IoT devices.
