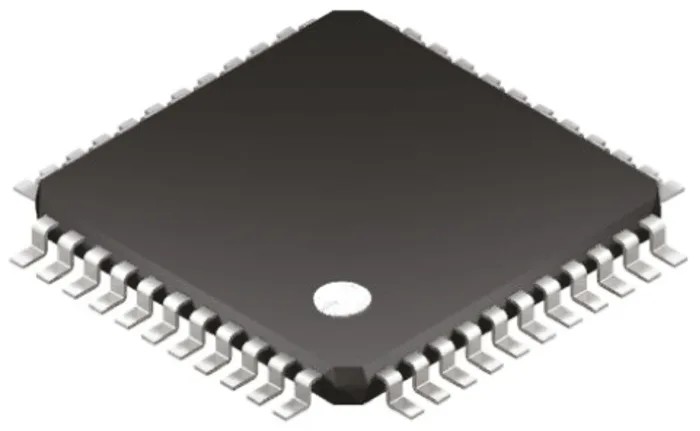

Microchip 16-Bit PIC24HJ Microcontroller, 40 MIPS, 64kB FLASH, 8kB RAM, 44-Pin TQFP PIC24HJ64GP204-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24HJ64GP204-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24HJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10/12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 4 Bit |
Key Features
- Features a powerful PIC core with 16-bit data bus width.
- Operates at a maximum clock frequency of 40 MIPS for efficient performance.
- Contains 64kB of FLASH program memory and 8kB of RAM.
- Equipped with 1 x 4-bit DAC and 13 ADC channels with 10/12-bit resolution.
- Includes 5 timers and 2 analogue comparators for diverse applications.
- Supports surface mount TQFP package with 44 pins, measuring 10 mm x 10 mm and 1.05 mm height.
- Operates with a supply voltage between 3V and 3.6V.
- Meets AEC-Q100 automotive standard with operating temperature range from -40°C to 85°C.
Product Description
Microchip PIC24HJ64GP204-I/PT is a high-performance 16-bit PIC microcontroller engineered for industrial, automotive, and embedded system applications. With a peak processing speed of 40 MIPS and a robust PIC core, this device offers efficient and reliable control for demanding tasks.
This microcontroller features 64kB of FLASH memory for program storage and 8kB of RAM for data operations, supporting complex software development and multitasking capabilities. The device includes one 4-bit DAC and thirteen ADC channels, offering fine analog input resolution suitable for sensor interfacing and signal processing.
Constructed in a 44-pin TQFP surface mount package, with compact dimensions of 10 mm in length and width and a 1.05 mm height profile, this microcontroller is suitable for space-constrained PCB designs. Power supply voltages range from 3V minimum to 3.6V maximum, complying with common embedded system power standards.
Designed to operate reliably across harsh conditions, it conforms to AEC-Q100 automotive standards with an operating temperature range from -40°C to 85°C, making it ideal for automotive and industrial environments. It integrates five timers and two analogue comparators to enhance timing and control functionalities essential for complex embedded control systems.
16-bit PIC core with RISC architecture delivering up to 40 MIPS performance. 64kB FLASH program memory and 8kB RAM for versatile application storage. One 4-bit DAC and multiple ADC channels supporting analog interfacing.
Compact 44-pin TQFP package sized 10 mm x 10 mm x 1.05 mm for surface mounting. Operating supply voltage between 3V and 3.6V ensuring compatibility with various power sources. AEC-Q100 certified, suitable for automotive and industrial applications with wide operating temperatures.
Five timers and two analogue comparators for enhanced control applications.
This microcontroller is widely used in automotive electronics, industrial automation, consumer electronics, and embedded control applications. Its feature-rich architecture and robust design simplify development for engineers requiring reliable and high-speed microcontrollers.
Explore more Microcontrollers and semiconductor solutions at EnvMart to find the best fit for your industrial and embedded projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC24HJ64GP204-I/PT operates at a maximum clock frequency of 40 MIPS, providing efficient performance for various applications.
This model features 64kB of FLASH program memory and 8kB of RAM, allowing for complex software development and multitasking capabilities.
It operates within a temperature range of -40°C to 85°C, making it suitable for automotive and industrial environments.
The device includes 13 ADC channels with 10/12-bit resolution, suitable for various analog input applications.
This microcontroller is housed in a 44-pin TQFP surface mount package, with dimensions of 10 mm x 10 mm and a height of 1.05 mm.
It operates with a supply voltage between 3V and 3.6V, ensuring compatibility with various power sources in embedded systems.
The PIC24HJ64GP204-I/PT is widely used in automotive electronics, industrial automation, consumer electronics, and embedded control applications.
This model includes five timers, enhancing its timing and control functionalities for embedded control systems.
Yes, it complies with the AEC-Q100 automotive standard, making it suitable for use in automotive applications.
The microcontroller features a 16-bit PIC core with RISC architecture, which supports efficient processing and control tasks.
It is equipped with two analogue comparators, which can be utilized for various control applications.
The PIC24HJ64GP204-I/PT is manufactured in India.
