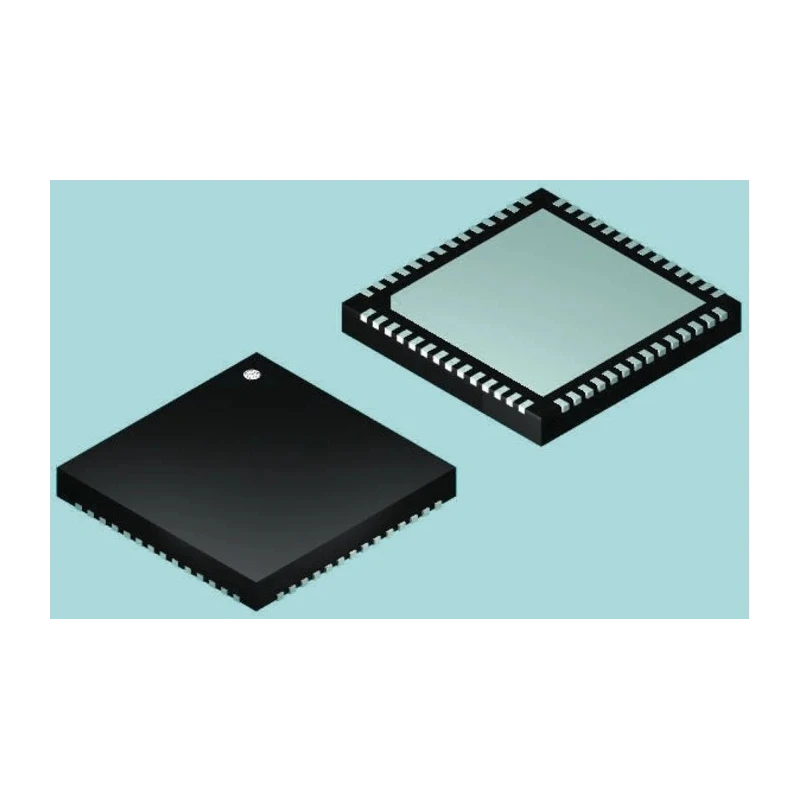

Microchip PIC18F4580-I/ML 8-bit PIC18F Microcontroller 40 MHz 32 kB Flash 256 B SRAM 44-Pin QFN PIC18F4580-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 8mm |
| Model | PIC18F4580-I/ML |
| Width | 8mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4.2V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Offers high-performance 8-bit RISC architecture for efficient embedded applications.
- Includes 1.54 kB RAM and 11 ADCs with 10-bit resolution for precise analog input conversion.
- Operates within a supply voltage range of 4.2 V to 5.5 V with maximum power dissipation of 1 W.
- Equipped with 36 programmable I/O pins and 4 timers for versatile control options.
- Designed to function reliably across temperatures from -40°C to 85°C.
- Compact dimensions with 8 mm length, 8 mm width, and 950 μm height suitable for space-constrained designs.
- Complies with RoHS standards ensuring environmental compliance.
- The 44-pin QFN surface mount package allows efficient PCB mounting and thermal dissipation.
Product Description
The Microchip PIC18F4580-I/ML is a high-performance 8-bit microcontroller from the PIC18F series featuring a 40 MHz maximum clock speed. It provides 32 kB of Flash program memory alongside 256 bytes of SRAM, designed for efficient embedded system designs. Its architecture is based on RISC, enabling fast processing and low power consumption suitable for various industrial and commercial applications.
This microcontroller operates with a voltage supply range from 4.2 V up to 5.5 V and supports a maximum power dissipation of 1 W, making it ideal for low-power embedded systems. It is built to perform reliably over wide temperature ranges from -40°C to 85°C and incorporates 36 programmable input/output pins supporting flexible interfacing options.
The device includes 11 analog-to-digital converters (ADCs) with 10-bit resolution, allowing precise analog signal measurement. Additionally, it features 2 analog comparators and 4 timers for advanced timing control functionality. The compact 44-pin QFN surface mount package, with dimensions of 8 mm by 8 mm and 950 μm height, ensures space-efficient PCB mounting while also aiding thermal performance.
Its compliance with RoHS standards ensures it meets environmental and safety regulation requirements. This microcontroller is suited for various applications such as industrial automation, embedded control systems, consumer electronics, and automotive systems where a non-automotive standard microcontroller is appropriate.
High-performance 8-bit RISC architecture delivers efficient processing. 32 kB Flash program memory with 256 B SRAM supports complex applications. Wide operating voltage range from 4.2 V to 5.5 V meets diverse power requirements.
36 programmable I/Os provide flexible interface options. Built to withstand operating temperatures from -40°C to 85°C. 11 channels of 10-bit ADC enable precise analog signal processing. Compact 44-pin QFN surface mount package supports space-constrained designs.
RoHS compliance ensures adherence to environmental standards.
This Microchip PIC18F microcontroller series combines reliable performance with versatile features for embedded, industrial, and consumer solutions. Browse more Microcontrollers and semiconductor products on EnvMart to meet your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It operates within a supply voltage range of 4.2 V to 5.5 V.
This microcontroller features 32 kB of Flash program memory.
It is designed to function reliably across temperatures from -40°C to 85°C.
This model includes 36 programmable I/O pins for versatile interfacing options.
It is available in a 44-pin QFN surface mount package.
The device includes 11 analog-to-digital converters (ADCs) with 10-bit resolution.
The maximum power dissipation for this microcontroller is 1 W.
This model has 256 bytes of SRAM.
The dimensions are 8 mm in length, 8 mm in width, and 950 μm in height.
It complies with RoHS standards, ensuring environmental compliance.
This microcontroller features 4 timers for advanced timing control functionality.
