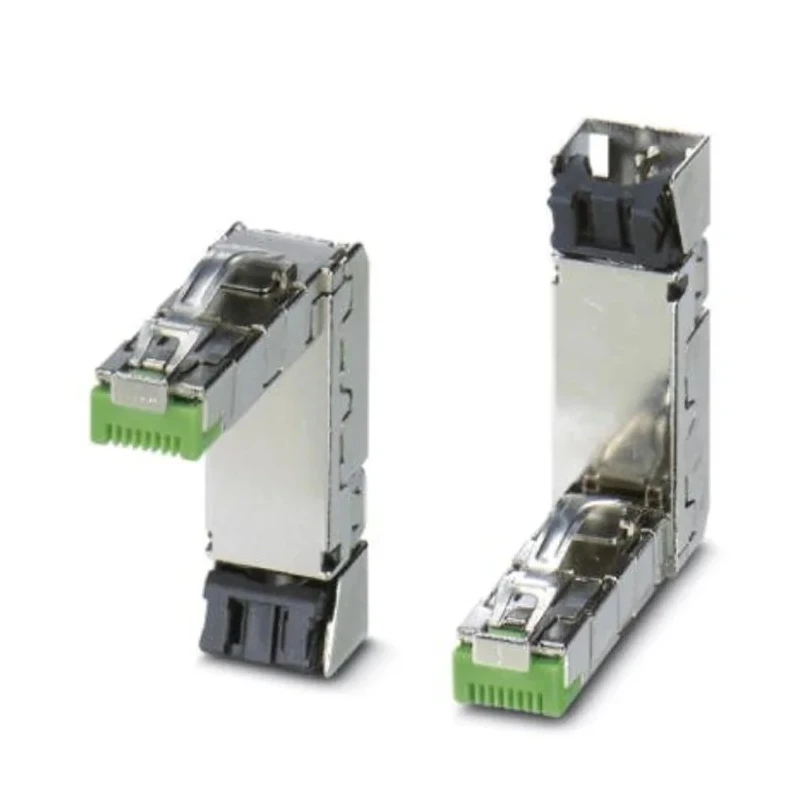

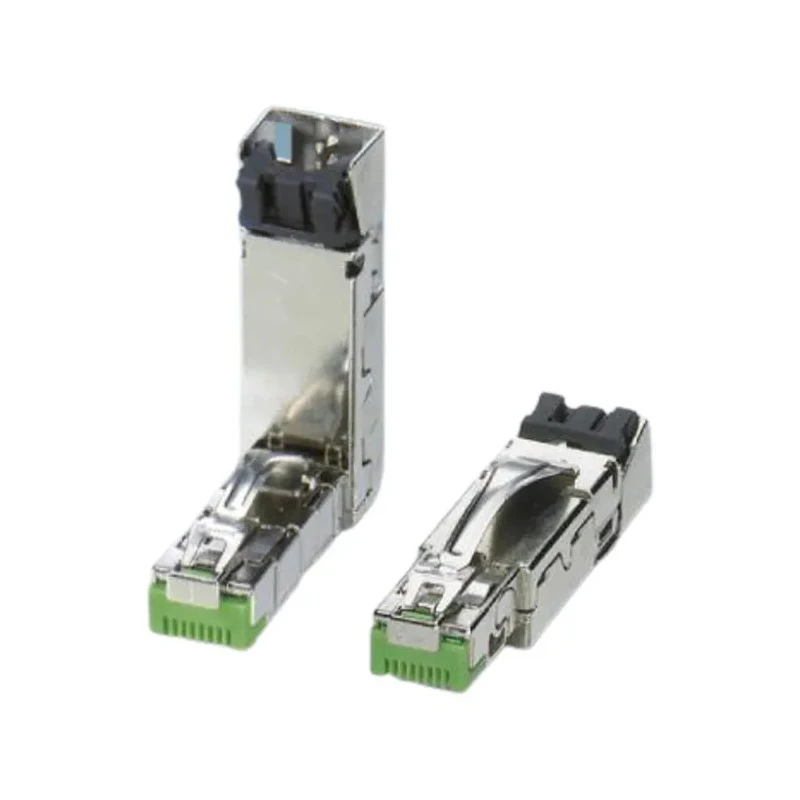

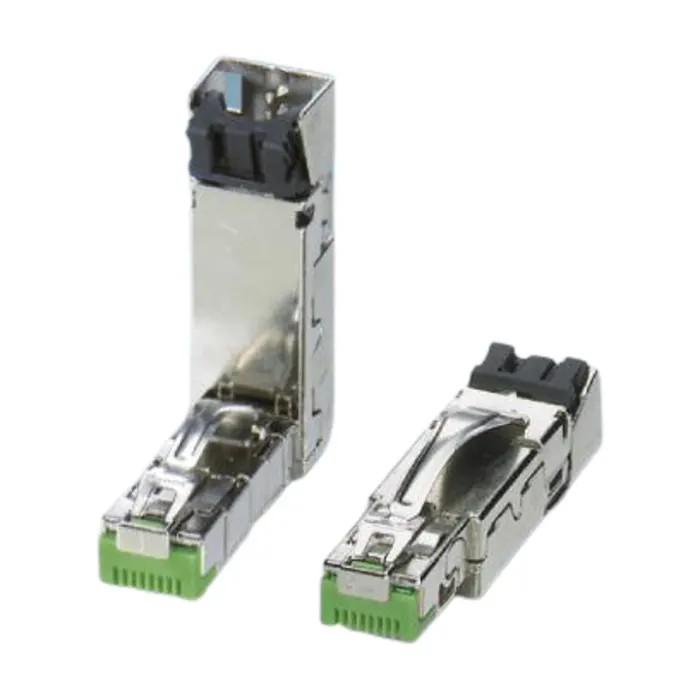

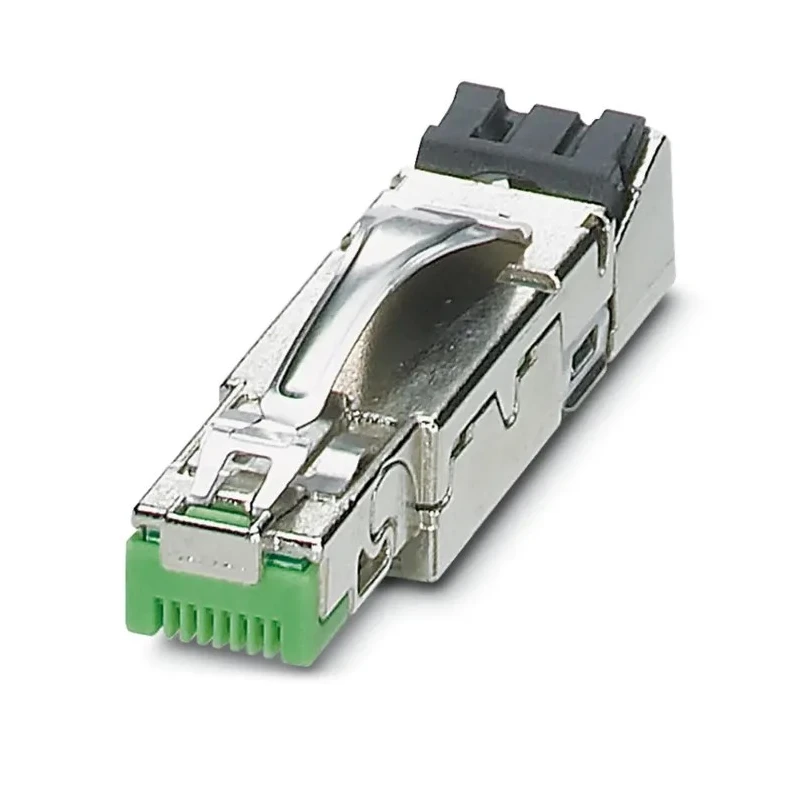

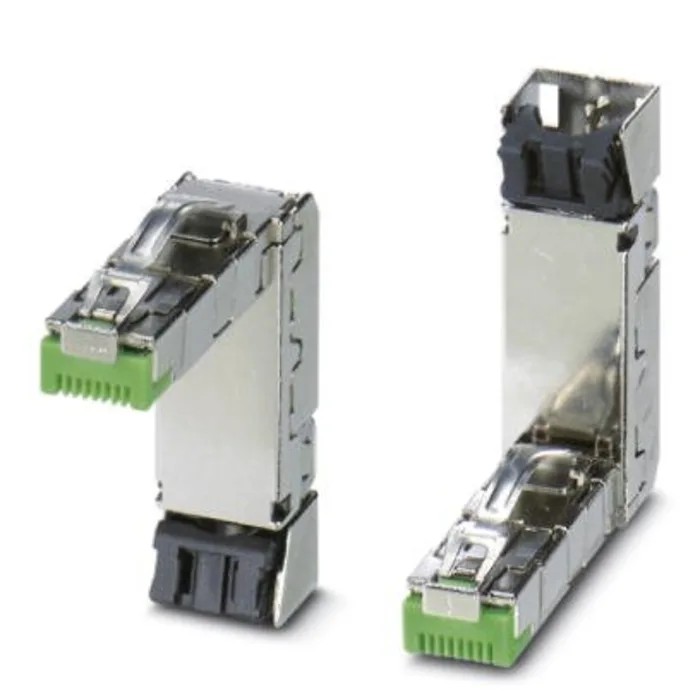

Phoenix Contact CUC Series RJ45 Connector Male, Cable, Cat5 Shielded Straight 1 Port 8 Way 1421607
Specifications
| Country of Origin | India |
|---|---|
| Brand | Phoenix Contact |
| Orientation | Straight |
| Length | 13.7mm |
| Model | 1421607 |
| Depth | 14.4mm |
| IP Rating | IP20 |
| Connector Type | Plug |
| Number Of Ways | 8 |
| Width | 53mm |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | CUC |
| Number Of Ports | 1 |
| Termination Type | IDC |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Male |
| LAN Category | Cat5 |
| Ethernet Connector Type | RJ45 |
| COMMSCOPE Male RJ45 Connector, Cat5Brand | COMMSCOPE |
Key Features
- Features IDC technology for fast, insulation-displacement termination without wire stripping.
- Copper alloy contacts with gold over nickel plating ensure optimal connectivity and corrosion resistance.
- Rated IP20 for protection against solid objects larger than 12mm and finger touch.
- Conforms to RoHS directive with low hazardous substance levels.
- Suitable for temperatures from -40°C to 70°C for rugged industrial use.
- Compatible with conductors sized AWG24 to AWG26 for flexible wiring.
- Offers high resistance to shock and vibration in machine building and systems manufacturing.
- Single port 8-way male connector designed for cable mounting.
Product Description
Phoenix Contact 1421607 RJ45 Connector Male, Cable, Cat5 Shielded Straight 1 Port 8 Way is a high-quality Ethernet connector designed to maintain reliable data transmission in industrial and commercial networking environments. This shielded male RJ45 plug features insulation-displacement connection (IDC) technology, allowing quick and efficient cable termination without the need for wire stripping.
The contacts are made from durable copper alloy, plated with gold over nickel, to provide excellent conductivity and resistance to corrosion and wear. The connector body is constructed from die-cast zinc with an IP20 rating, offering protection against finger contact and foreign objects larger than 12mm, suitable for indoor industrial applications.
Operating in temperature ranges from -40°C up to 70°C, it supports robust performance in harsh conditions commonly found in machine-building, systems manufacturing, and other industrial automation settings. Compatible with conductor sizes from AWG24 to AWG26, it provides versatility in cable choices.
This 8-way, single-port connector is designed for cable mounting with straight plug orientation for easy integration. It complies with RoHS requirements, ensuring minimal environmental impact by restricting hazardous substances. Additionally, it meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic discharge standards, protecting sensitive electronics in industrial networks.
IDC technology speeds installation and reduces wiring errors. Gold over nickel plating improves signal integrity and durability. Rugged construction suitable for industrial and manufacturing environments. IP20 rated housing for basic protection against solid ingress.
Wide temperature tolerance for diverse applications. RoHS compliant to meet environmental standards. Meets electrostatic discharge control standards. Compact form factor with precise dimensions for space constrained installations.
Ideal for use in industrial Ethernet applications requiring reliable network connections, this connector supports fast data transmission and operational resilience. Explore more high-performance industrial connectors at EnvMart for your automation and networking needs.
Explore more products in our Ethernet Connectors category.
