MEAN WELL Compact Switching Power Supply 12V dc 2W PCB Mount IRM-02-12

Free Delivery in India | Lowest Global Shipping Charges

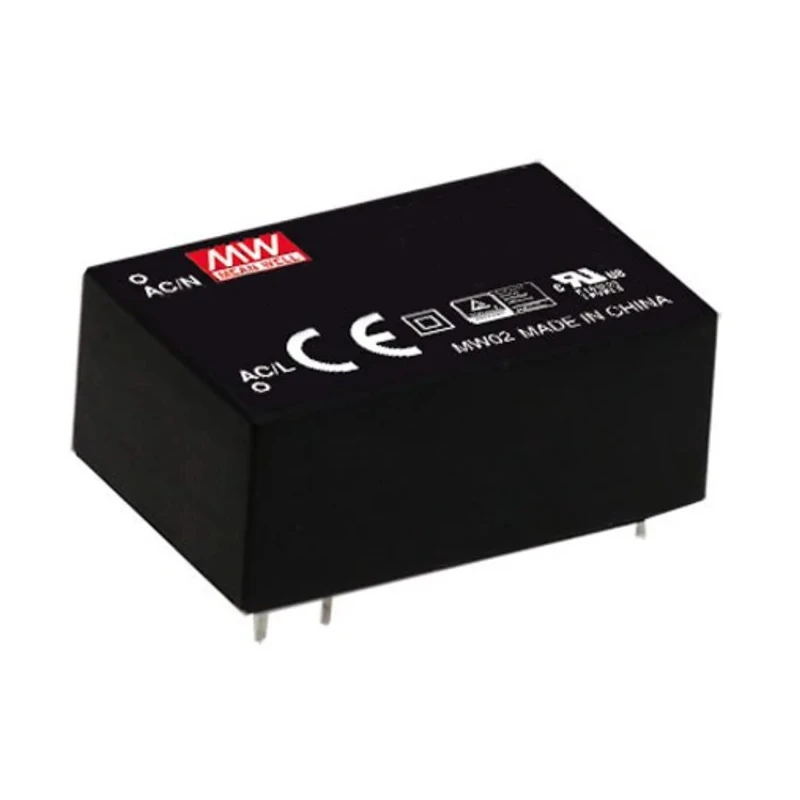

MEAN WELL Compact Switching Power Supply 12V dc 2W PCB Mount IRM-02-12

Name: MEAN WELL Compact Switching Power Supply 12V dc 2W PCB Mount IRM-02-12
Brand: MEAN WELL
SKU: 204399
Price: 20.22 USD
Availability: InStock



Category Power Supplies & Transformers Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	2W
Efficiency	74%
Length	33.7mm
Model	IRM-02-12
Depth	15mm
Gross Weight	19g
Width	22.2mm
Mount Type	PCB
EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, heavy industry level (surge L-N: 1 KV), criteria A
Series	IRM
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	430, 305V dc
Maximum Output Voltage	12V dc
SMPS Output Current	167mA
Minimum Input Voltage	85V ac
EMC Emission	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

Key Features

Supports universal input voltage from 85V AC to 305V AC and 430V DC maximum input.
Features overvoltage, overload, and short circuit protections for enhanced reliability.
Constructed with a phenolic case and fully potted silicone for dust, moisture, and vibration resistance.
High efficiency up to 77%, with low no-load power consumption below 0.075 W.
Compact dimensions of 33.7mm length, 22.2mm width, and 15mm depth for space-constrained installations.
Wide operating temperature range from -30°C to 85°C for industrial environments.
Meets safety standards including UL 60950-1, TUV EN 60950-1, and EMC standards EN 55022 Class B.
Class II insulation design with excellent EMI filtering for minimal electromagnetic interference.

Product Description

MEAN WELL IRM-02-12 is a high-quality 2 W single output encapsulated AC-DC switching power supply designed for PCB mounting. It delivers a stable 12 V DC output with a universal AC input voltage range from 85 V AC up to 305 V AC and 430 V DC maximum input, making it suitable for diverse electronic applications.

The power supply features a robust phenolic enclosure fully potted with silicone, enhancing its resistance to dust, moisture, and vibration up to 5G. This construction improves heat dissipation and prolongs reliability in demanding industrial and mechanical environments.

With an efficiency reaching up to 77% and a low no-load power consumption of less than 0.075 W, the IRM-02-12 contributes to energy savings and compliance with global power consumption regulations. Its Class II isolation ensures enhanced user safety, complemented by integrated EMI filtering that meets stringent EMC requirements.

The unit provides overvoltage, overload, and short circuit protections, ensuring device and user safety. Its compact size - 33.7 mm length, 22.2 mm width, and 15 mm depth - allows for easy integration into space-constrained electronic systems.

Applications for the IRM-02-12 include handheld electronic devices, factory automation equipment, industrial electrical machinery, and mechanical equipment requiring reliable and compact power supplies.

Supports universal AC input voltage and wide operating temperatures from -30°C to 85°C. Complies with multiple international safety and EMC standards such as UL 60950-1 and EN 55022 Class B. Designed for PCB mounting with high EMI immunity for industrial environments.

Energy efficient with a high efficiency rate and low standby power consumption. Fully encapsulated design ensures durability in harsh environmental conditions. Class II isolation with built-in protections against electrical faults.

Compact and lightweight at 19 g, facilitating easy installation in diverse applications.

This MEAN WELL switching power supply is ideal for industrial, manufacturing, laboratory, and commercial electrical applications requiring a reliable and compact DC power source. Browse more power supplies and switching power solutions at EnvMart for your industrial needs.
