C & K Gold Tactile Switch Button SPST 20mA 12 V dc Surface Mount IP40

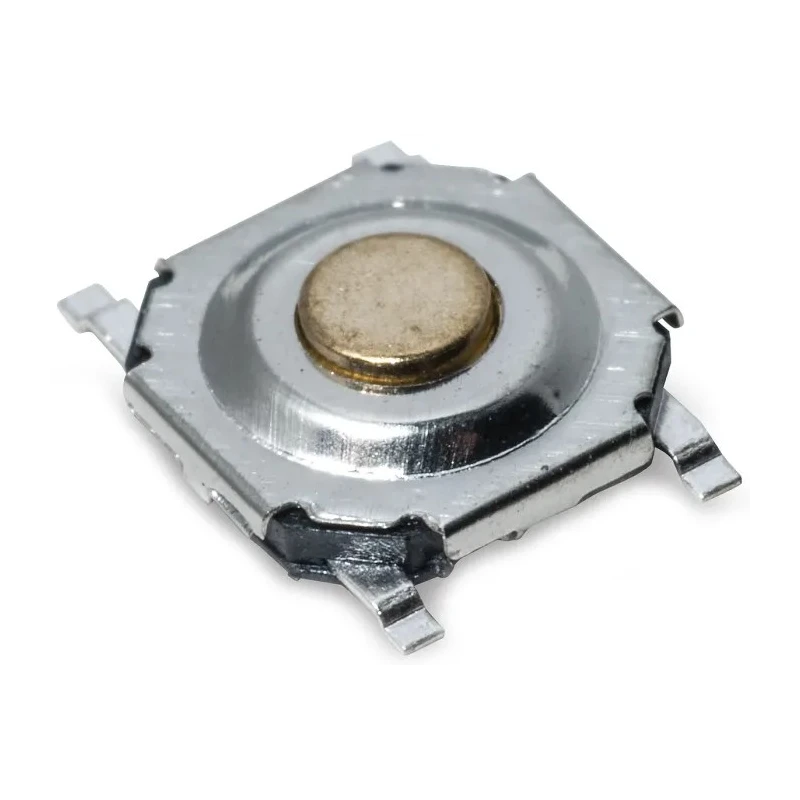

Name: C & K Gold Tactile Switch Button SPST 20mA 12 V dc Surface Mount IP40
Brand: C & K
SKU: 204305
Price: 0.29 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	5.2mm
Model	IP40
IP Rating	IP40
Width	5.2mm
Mount Type	Surface
Series	PTS
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-20°C
Terminal type	J Bend
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Gold
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	2.6N
Mechanical Life	200000Cycles

Key Features

The switch features a gold-colored button actuator and J bend terminal type for easy mounting.
It is designed for momentary operation with (On)-Off switch configuration and straight actuator orientation.
The switch package provides IP40 protection and is suitable for a wide temperature range from -20°C to 70°C.
It offers a mechanical life of 200,000 cycles and operates at a force of 2.6N.
The compact dimensions of 5.2mm length, 5.2mm width, and 2mm height make it ideal for space-constrained applications.
This RoHS-compliant switch series is suitable for consumer products, instrumentation, and remote control applications.

Product Description

C & K IP40 Gold Tactile Switch Button PTS525 SKG15J SMTR2 LFS is a rugged microminiature tactile switch designed for surface mount applications in electronic devices. Featuring a SPST (Single Pole Single Throw) contact configuration and momentary switch operation, this switch is rated for 20mA contact current at 12 V dc, making it suitable for low power electronic control circuits.

The switch actuator is gold-colored with a button style and straight orientation, providing reliable tactile feedback. Its J bend terminals allow for secure surface mounting, and the IP40 protection rating ensures dust ingress protection suitable for many indoor environments.

With compact dimensions of 5.2 mm length, 5.2 mm width, and 2 mm height, this switch is ideal for applications where minimal space is available. It operates reliably between temperatures of -20°C and 70°C with an operating force of 2.6 N and a mechanical lifespan of 200,000 actuation cycles.

The PTS525 series from C & K offers high reliability and durability, meeting RoHS compliance for environmental safety. Typical use cases include consumer electronics, instrumentation interfaces, remote controls, and other devices requiring compact, high cycle life tactile switches.

The switch is designed for momentary tactile actuation with SPST contact configuration. Gold actuator and surface mount J bend terminals offer reliable contact and mounting. Compact size with 5.2 x 5.2 x 2 mm dimensions fits tight PCB layouts.

Wide operating temperature range of -20°C to 70°C supports diverse environments. High mechanical life cycle rating of 200,000 ensures longevity in industrial and consumer products. IP40 rating provides dust protection for indoor applications.

This Tactile Switch is an ideal component in industrial, consumer electronics, instrumentation, and remote control equipment. Explore similar switches and components in the Electronics & Electricals category on EnvMart for comprehensive solutions.
