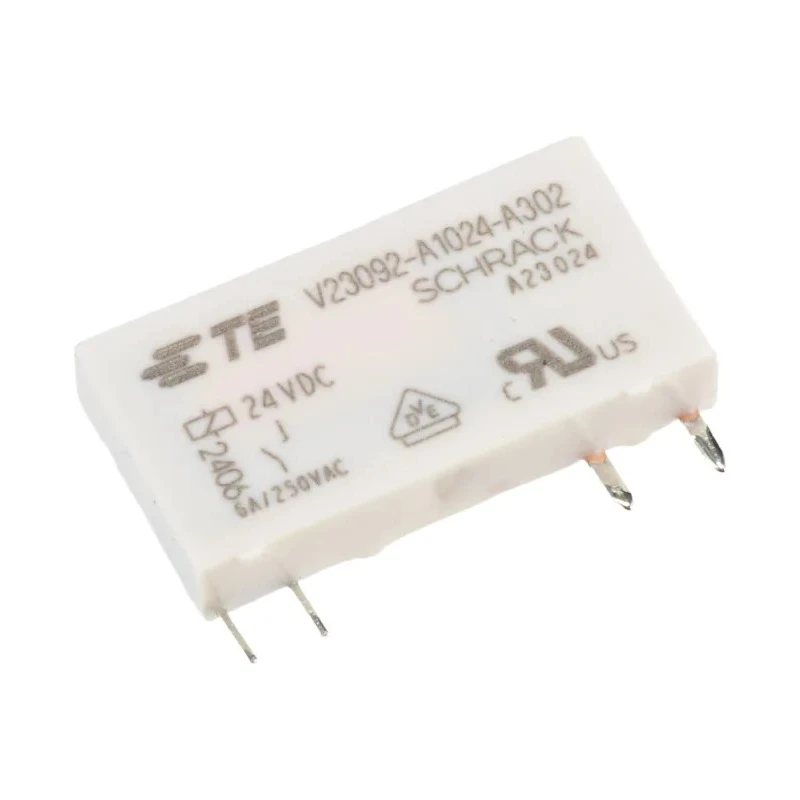

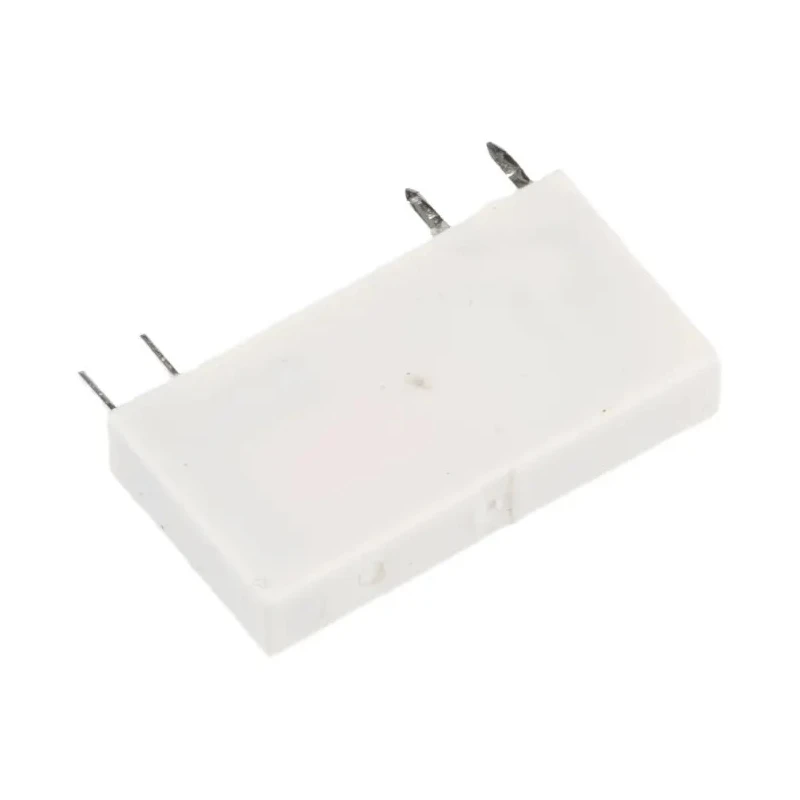

TE Connectivity PCB Power Relay 24V dc Coil 6A Switching Current SPST V23092-A1024-A302
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092-A1024-A302 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | REACH, RoHS, UL, VDE |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- Features a compact design with 5mm thickness for PCB mounting.
- Operates efficiently with a high coil sensitivity of 170mW.
- Supports a switching AC voltage of up to 400V ac.
- Coil resistance is 3.4kΩ ensuring stable operation.
- Operating temperature ranges from -40°C to +85°C for robust performance.
- Contact material is made of silver alloy for reliable electrical conductivity.
- Isolation between coil and contact is rated at 4000Vac for safety.
- Complies with industry standards including REACH, RoHS, UL, and VDE.
Product Description
TE Connectivity V23092-A1024-A302 PCB Power Relay is a highly reliable switching device designed for precise control in electrical circuits. With a coil voltage of 24V dc and a switching current capacity of 6A, this SPST type relay provides robust performance for various industrial, automation, and electronic applications.
This relay features a compact and slim design with a thickness of 5mm, height of 15mm, and length of 28mm, making it ideal for dense PCB layouts. It consumes a low coil power of 170mW, resulting in energy-efficient operation. The coil resistance of 3.4kΩ supports stable coil activation and switching.
It supports switching AC voltages up to 400V and offers an isolation voltage between coil and contacts rated at 4000Vac, enhancing operational safety in industrial environments. The relay operates reliably within a wide temperature range from -40°C to +85°C, suitable for harsh operating conditions.
The contact material is a durable silver alloy which ensures reliable electrical conductivity and longevity. Compliance with standards such as REACH, RoHS, UL, and VDE underscores its quality and safety for manufacturing and electronic control systems.
Compact slim relay with high coil sensitivity for efficient PCB mounting. Wide operating temperature range for industrial robustness. Safe isolation between coil and contact voltages. Silver alloy contacts for durable electrical performance.
Suitable for industrial, automation, control systems, and electronic circuit applications.
This product is a key component for electronic and electrical designers requiring dependable performance with space-saving design. Explore EnvMart's comprehensive range of Power Relays for all your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V dc.
This relay can handle a maximum switching current of 6A.
The isolation voltage between the coil and contacts is rated at 4000Vac.
The operating temperature range for this model is from -40°C to +85°C.
The dimensions of this PCB power relay are 28mm in length, 5mm in width, and 15mm in height.
This relay is designed for PCB mounting.
The coil resistance of this relay is 3.4kΩ.
The contact configuration of this relay is SPST (Single Pole Single Throw).
The contacts in this relay are made of silver alloy.
This relay complies with REACH, RoHS, UL, and VDE standards.
The coil power consumption of this relay is 170mW.
This power relay is suitable for industrial, automation, control systems, and electronic circuit applications.
