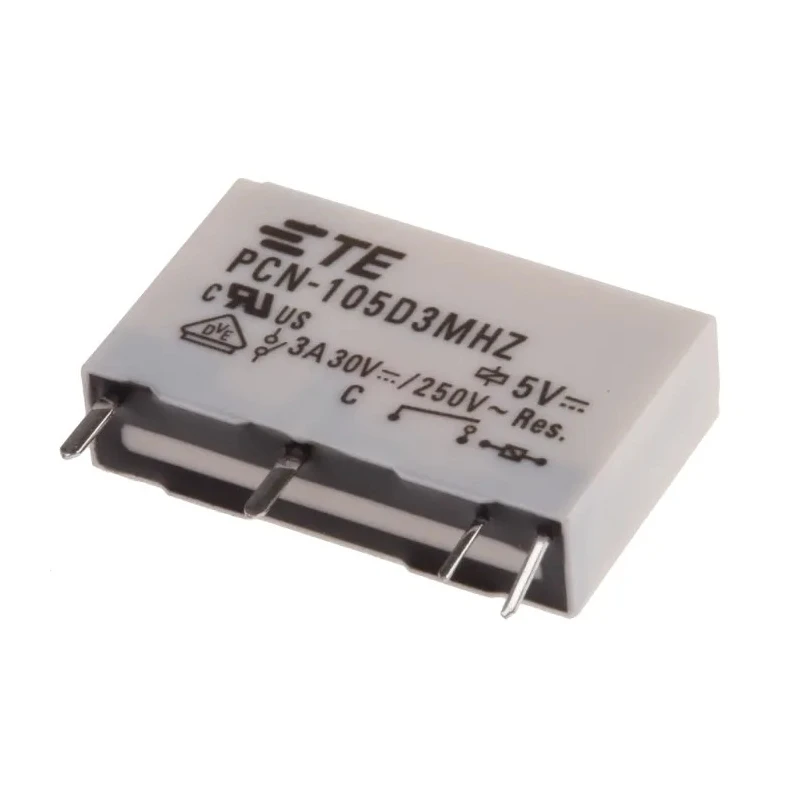

TE Connectivity PCB Power Relay 5V DC Coil 3A Switching Current SPST PCN-105D3MHZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 12.5mm |
| Length | 20mm |
| Model | PCN-105D3MHZ |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PCN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | REACH, RoHS |
| Coil Resistance | 208Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 120mW |
Key Features
- Extremely slim design with only 5mm width for compact PCB mounting.
- Operates at a coil power of 120mW for energy-efficient switching.
- Equipped with high-quality silver nickel alloy contacts ensuring reliable performance.
- Suitable for switching AC and DC voltages up to 125V with a maximum switching power of 750VA.
- Designed to withstand operating temperatures ranging from -30°C to 70°C.
- Reinforced insulation and cadmium-free contacts enhance durability and environmental compliance.
- Solder terminal type ensures secure and easy PCB mounting.
- Complies with REACH and RoHS standards for regulatory conformity.
Product Description
TE Connectivity PCN-105D3MHZ PCB Power Relay is a high-performance relay designed for PCB mounting with a coil voltage of 5V DC and a switching current rating of 3A.

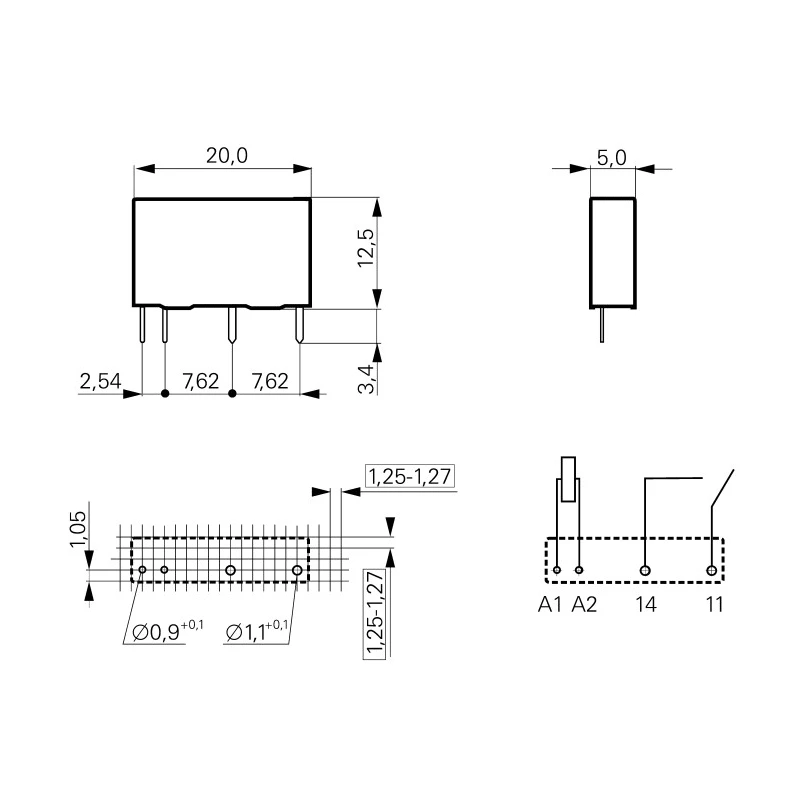

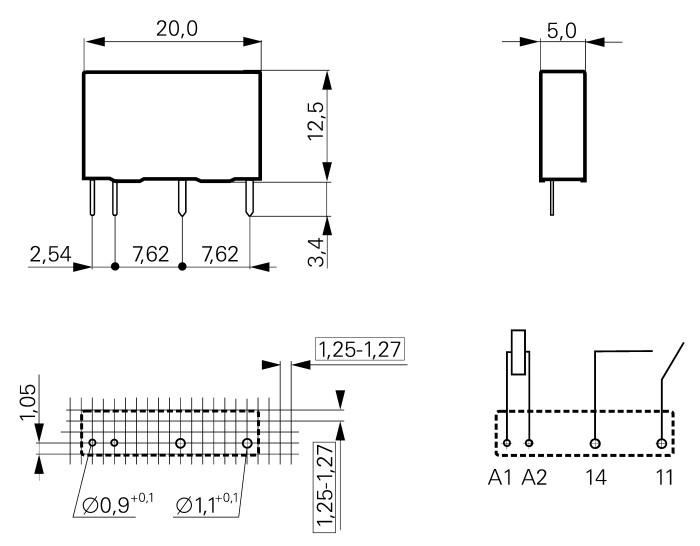

This slim relay has a width of just 5mm and length of 20mm, with a height of 12.5mm, making it suitable for space-constrained applications. The coil power consumption is low at 120mW, optimizing energy efficiency in control circuits.
The relay features SPST (Single Pole Single Throw) contact configuration and silver nickel alloy contacts, providing reliable switching for both AC and DC voltages up to 125V. It achieves a maximum switching power of 750VA, supporting diverse electrical loads.
It operates reliably within a temperature range of -30°C to 70°C. The coil resistance is 208 ohms, ensuring sensitive coil response. Reinforced insulation enhances safety and operational longevity. Contacts are cadmium-free, meeting modern environmental standards.
This relay is RoHS and REACH compliant and carries UL and VDE approvals, making it suitable for industrial automation, electrical control panels, and PCB assembly.
The solder terminal mounting type allows easy integration into PCB designs, ideal for automation and signal conditioning circuits. Its washproof RT III rating adds robustness against harsh industrial environments.
Extremely slim 5mm width for compact designs. Energy-efficient coil power consumption of 120mW. Durable silver nickel alloy contacts for reliable switching. Compatible with both AC and DC voltages up to 125V. Wide operating temperature range from -30°C to 70°C.
Reinforced insulation for enhanced safety. Cadmium-free contacts for environmental compliance. Solder terminal type for secure PCB mounting. Compliant with REACH and RoHS standards. Washproof RT III for harsh environment suitability.
TE Connectivity power relays are trusted in industrial, electrical, automation, and manufacturing sectors for their reliability and compact form factor. Explore more Power Relays and related controls on EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It has a maximum switching current rating of 3A.
The dimensions are 5mm in width, 20mm in length, and 12.5mm in height.
This relay features an SPST (Single Pole Single Throw) contact configuration.
It can switch both AC and DC voltages up to 125V.
The coil power consumption is 120mW, which optimizes energy efficiency.
The contacts are made of silver nickel alloy, ensuring reliable performance.
It operates reliably within a temperature range of -30°C to 70°C.
This model uses a solder terminal type for secure PCB mounting.
Yes, it complies with REACH and RoHS standards for regulatory conformity.
The coil resistance is 208 ohms, ensuring sensitive coil response.
This relay carries UL and VDE approvals, indicating its compliance with safety standards.
