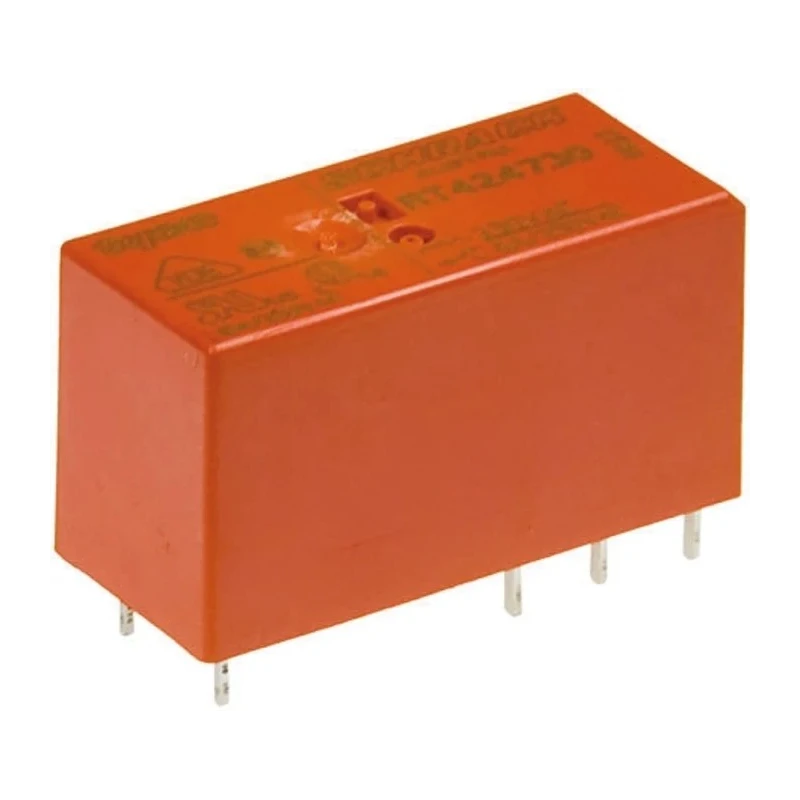

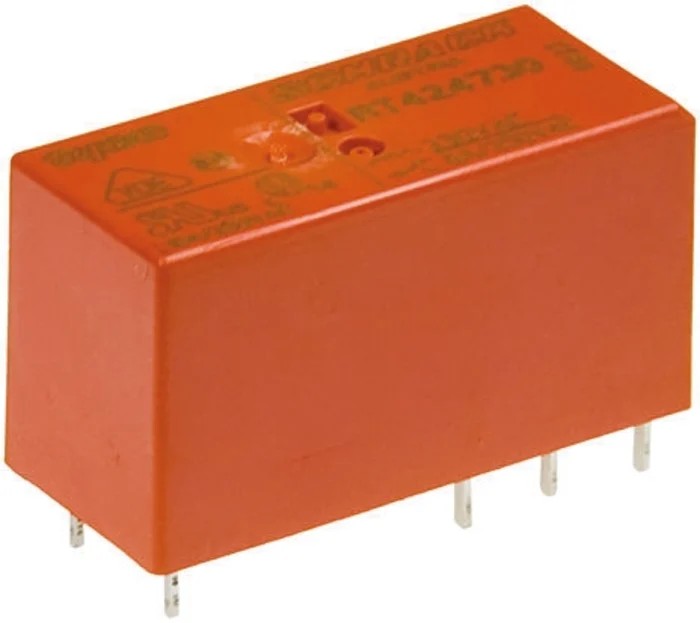

TE Connectivity PCB Power Relay, 230V AC Coil, DPDT, 8A Switching Current, 400V AC, Silver Nickel Alloy Contacts RT424730

TE Connectivity RT424730 PCB Power Relay features a 230V AC coil designed for industrial and automation applications requiring reliable switching of electrical signals. This relay offers a dual-pole double-throw (DPDT) contact configuration, facilitating versatile power control within electronic circuits.

The relay supports a switching current of 8 amperes and can handle switching AC voltages up to 400 volts, making it suitable for a broad range of medium power applications such as heating systems, security lighting, and interface control tasks.

Constructed with silver nickel alloy contacts, the relay ensures stable and long-lasting electrical connectivity. Its coil resistance is rated at 32.5 kilo-ohms, drawing 0.74 VA of power, which enables low power consumption in operation.

Designed for PCB mounting, the relay has solder-type terminals with a 5mm pin pitch, facilitating straightforward installation. The unit operates efficiently within a temperature range from -40 degrees Celsius to 70 degrees Celsius, making it ideal for both harsh and standard environments.

Meeting industry standards such as cULus, VDE, and being REACH compliant, the relay guarantees safety and environmental considerations. Originating from Austria, this TE Connectivity RT424730 relay is a dependable component for automation, industrial control, and general purpose low power relay needs.

Coil voltage rated at 230V AC for consistent operation. DPDT contact configuration enables versatile switching applications. Switching current capacity of 8 amperes supports medium power loads. Contacts made from silver nickel alloy ensure durable electrical performance.

Compatible with PCB mount with solder terminal type for secure installation. Operating temperature range from -40°C to 70°C allows for wide environmental use. Switching AC voltage rated up to 400V AC for diverse applications.

Compact dimensions measuring 29mm length, 12.7mm width, and 15.7mm height. Coil resistance of 32.5kΩ and coil power consumption of 0.74VA. Compliance with cULus and VDE standards ensures safety and quality.

This relay suits industrial automation, domestic applications, heating systems, security lighting, and other electrical control use cases. It provides a reliable solution for controlling AC power switching in electronic devices and control panels.
