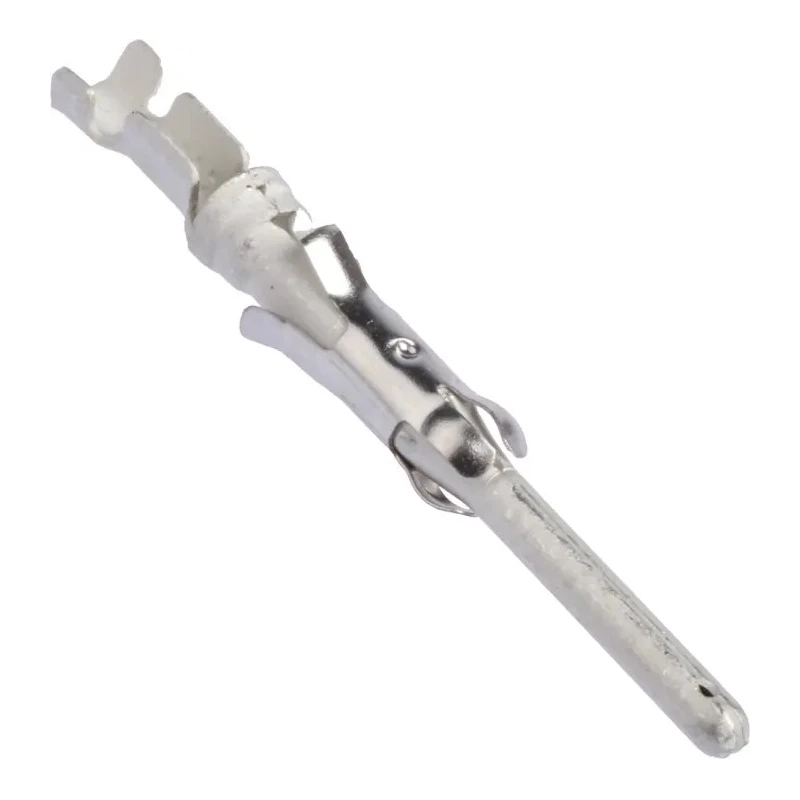

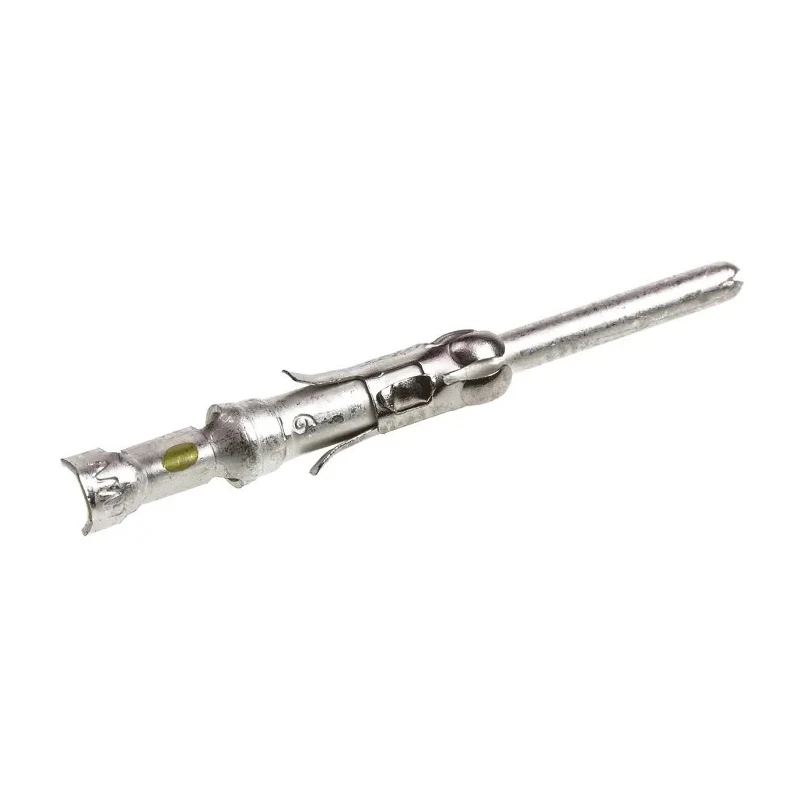

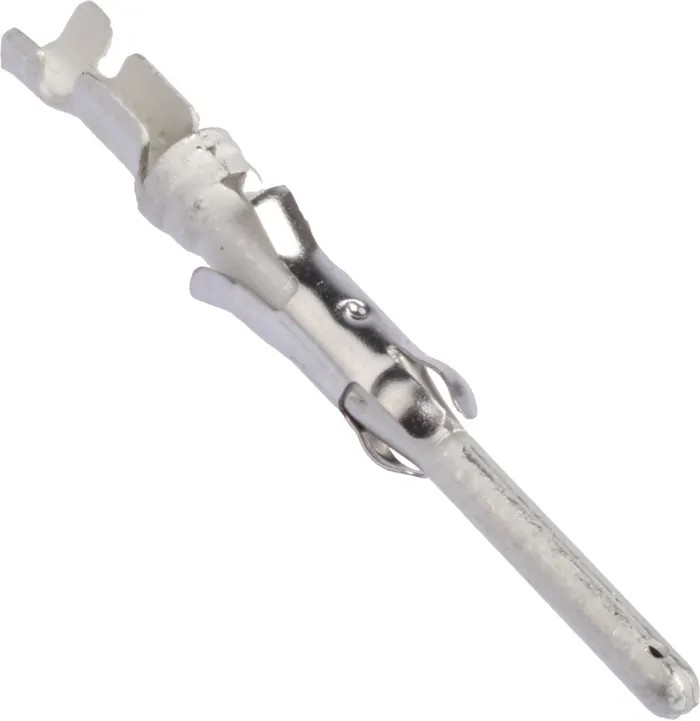

TE Connectivity Male Crimp Circular Connector Contact, Contact Size 16 mm, Wire Size 20, 24 AWG, 13A, 250V, Brass 163086-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Current | 13A |
| Operating Temperature Range | -55 - 90 °C |
| Length | 27.5mm |
| Model | 163086-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 90°C |
| Contact Type | Pin |
| Minimum Operating Temperature | -55°C |
| Wire size | 20, 24AWG |
| For Use With | AMP Type III |
| Contact Plating | Tin |
| Contact Size | 16 mm |
| Contact Current Rating (Max) (A) | 13 A |
| Contact Mating Area Plating Thickness | .76 μm [30 μin] |
| Insertion & Extraction Tool Type | Contact Extraction |
| Insertion & Extraction Tool Application | Contact-to-Housing |
Key Features
- Constructed with brass contact material and tin plating for reliable conductivity.
- Designed for crimp termination ensuring secure electrical connection.
- Operating temperature range from -55°C up to 90°C suitable for harsh environments.
- Part of Type III series suitable for AMP Type III connector systems.
- Contact length of 27.5 mm provides robust mating engagement.
- Offers a 5 mm pitch allowing higher pin count than Mate-N-Lok series connectors.
- Includes insertion and extraction tools for easy contact handling.
- Meets technical requirements without specific industry approvals.
Product Description
TE Connectivity 163086-1 Male Crimp Circular Connector Contact is engineered for robust electrical connections in demanding applications. This pin contact features a 16 mm contact size perfectly compatible with wire sizes 20 AWG and 24 AWG, and it is rated for a maximum current of 13A at 250V ensuring reliable performance in electronic and electrical systems.
Manufactured with high-quality brass and finished with tin plating, the contact ensures excellent conductivity and corrosion resistance. Its crimp termination type supports secure attachment with wires, providing durable mechanical bonding suitable for panel or free mounting installation in industrial, automotive, and communication equipment.
This connector contact belongs to the Type III series designed for AMP Type III circular connectors. Its 27.5 mm length and 5 mm pitch enable higher pin counts beyond the Mate-N-Lok range, facilitating compact and efficient connector assemblies.
Operating temperature range from -55°C to 90°C allows deployment in varied environments, including industrial machinery, HVAC control panels, manufacturing setups, and outdoor electrical systems. Though there are no specific approvals listed, this contact is built to meet TE Connectivity’s rigorous performance standards.
Insertion and extraction tools are available to assist with contact installation and removal, ensuring effectiveness in maintenance and assembly processes. This product supports connectivity demands in electronics manufacturing, power distribution, automation, and instrumentation sectors.
Constructed with brass contact material and tin plating for reliable conductivity. Designed for crimp termination ensuring secure electrical connection. Operating temperature range from -55°C up to 90°C suitable for harsh environments.
Part of Type III series suitable for AMP Type III connector systems. Contact length of 27.5 mm provides robust mating engagement. Offers a 5 mm pitch allowing higher pin count than Mate-N-Lok series connectors. Includes insertion and extraction tools for easy contact handling.
Meets technical requirements without specific industry approvals. Explore related Circular Connector Contacts and components at EnvMart to complete your electronic connector assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector contact has a maximum current rating of 13A.
The operating temperature range is from -55°C to 90°C, making it suitable for harsh environments.
It is compatible with wire sizes of 20 AWG and 24 AWG.
The contact is constructed from brass and features tin plating for reliable conductivity.
The contact size is 16 mm.
This connector uses a crimp termination type, ensuring a secure electrical connection.
The contact length is 27.5 mm, providing robust mating engagement.
It belongs to the Type III series, which is suitable for AMP Type III connector systems.
Yes, insertion and extraction tools are included to assist with contact handling.
The connector offers a 5 mm pitch, allowing for a higher pin count than the Mate-N-Lok series connectors.
The country of origin for this connector contact is India.
This connector contact is suitable for use in industrial, automotive, and communication equipment.
