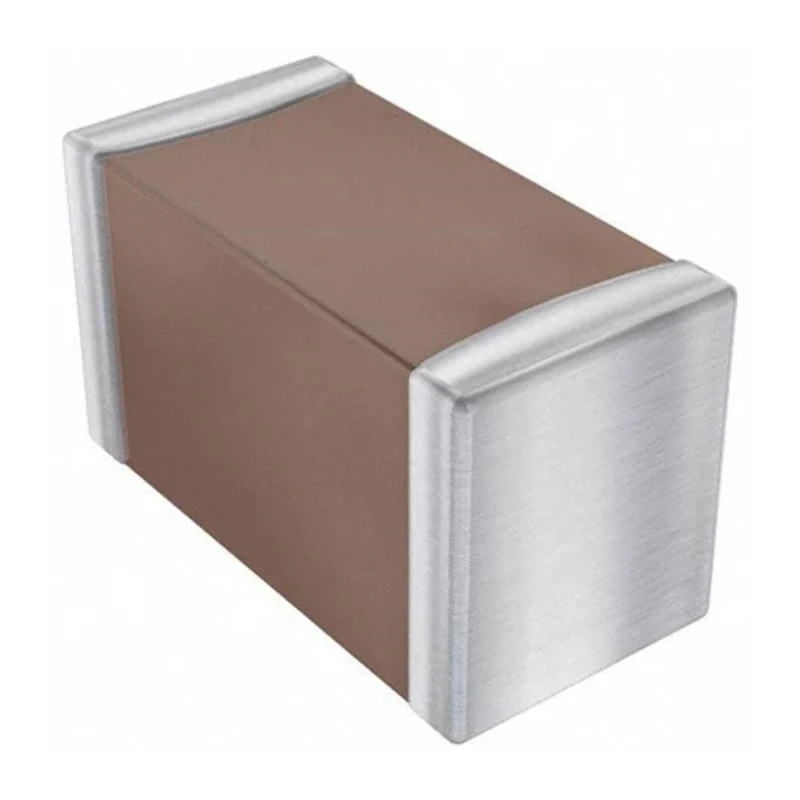

KYOCERA AVX 120nF 10V DC Multilayer Ceramic Capacitor Surface Mount X5R Dielectric ±10% Tolerance 0603 0603ZC124KAT2A

KYOCERA AVX 0603ZC124KAT2A is a precision multilayer ceramic capacitor with a capacitance of 120nF and a voltage rating of 10V dc. This surface mount device utilizes X5R dielectric ceramic, classified as Class II, which provides balanced temperature stability suitable for a wide range of industrial and commercial electronics applications.

This capacitor is packaged in a compact 0603 case size, measuring 1.6mm in length and 0.81mm in width, ideal for dense PCB layouts and automated assembly lines. Its surface mount termination facilitates efficient soldering and assembly processes.

The component operates reliably across a wide temperature range from -55°C minimum to a maximum rating of 125°C, making it suitable for demanding environments including industrial, automotive (non-automotive standard, but stable), instrumentation, and consumer electronics.

The ±10% capacitance tolerance ensures consistency and predictable circuit performance for designers and manufacturers. This component is supplied on reels to support high volume manufacturing and assembly efficiency.

Being part of the KGM series, it meets standard industrial expectations for MLCC (Multilayer Ceramic Capacitor) devices and supports applications where stable capacitance and robust thermal characteristics are required.

Constructed with X5R dielectric material for temperature stability. Surface mount type suited for automated PCB assembly. Compact dimensions of 1.6mm length and 0.81mm width. Rated for operating temperatures from -55°C to 125°C.

Packaging format is on reel facilitating volume production. Class II suppression rating ensures suitable performance in various industrial applications. Termination type is surface mount ensuring reliable solder connection.

Series designation KGM denotes the specific capacitor family.

This capacitor is widely used in electronic manufacturing, instrumentation, power management circuits, and other industrial or commercial electronics contexts where Multilayer Ceramic Capacitors are essential components.
