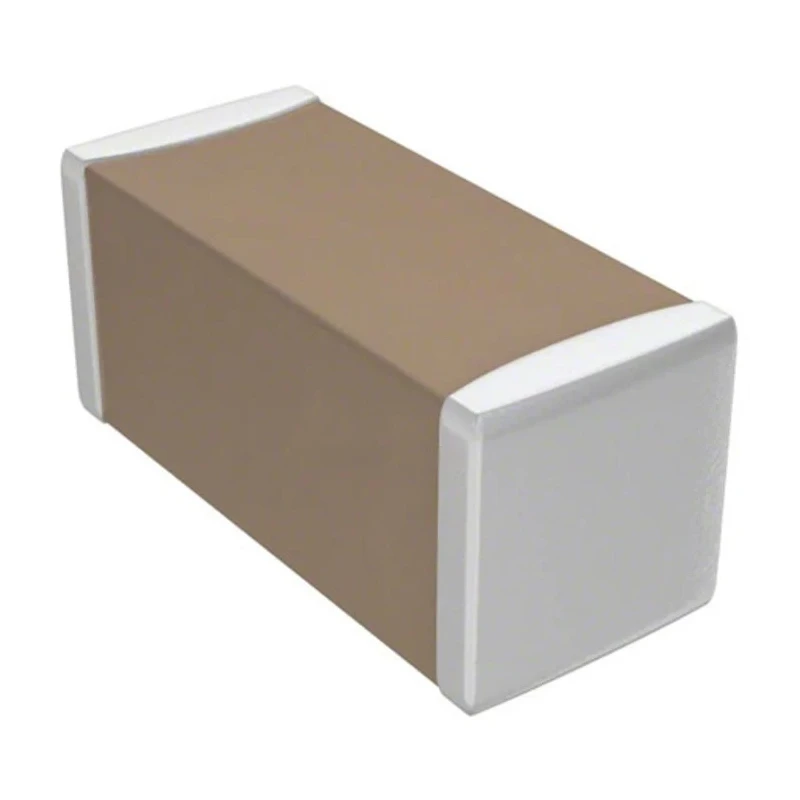

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 2 kV dc ±10 % Surface Mount, Package 1808, Series FLEXITERM 1808GC102KAT1A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2kV dc |
| Brand | KYOCERA AVX |
| Height | 2.2mm |
| Length | 4.6mm |
| Model | 1808GC102KAT1A |
| Packaging | Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | FLEXITERM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1808 |
| Dielectric | X7R |
Key Features
- This multilayer capacitor uses X7R dielectric for stable performance over temperature range.
- The capacitor features a surface mount termination type suitable for PCB assembly.
- Rated maximum operating temperature is 125°C and minimum operating temperature down to -55°C.
- Compact package size of 4.6 mm length, 2 mm width, and 2.2 mm height.
- Low ESR and leakage make it ideal for snubbers, resonators, and power converters.
- Supplied in reel packaging to facilitate automated manufacturing processes.
Product Description
KYOCERA AVX 1808GC102KAT1A is a high-quality multilayer ceramic capacitor designed for demanding electronics applications. This capacitor has a capacitance of 1 nanofarad (nF) and a voltage rating of 2 kilovolts direct current (2 kV dc), with a precision tolerance of ±10 %. It employs the X7R dielectric, known for its stable electrical characteristics over a wide temperature range.
Featuring a surface mount design and packaged in the industry-standard 1808 case, this capacitor is ideal for automated PCB assembly in industrial and commercial electronic equipment. The FLEXITERM series ensures reliable termination suitable for various environmental conditions.
The capacitor operates effectively within a broad temperature spectrum from -55°C up to 125°C, making it suitable for harsh environments often encountered in industrial, automotive, and power electronics sectors.
Its compact form factor measures 4.6 mm in length, 2 mm in width, and 2.2 mm in height, allowing for high-density circuit board layouts. The low equivalent series resistance (ESR) and minimal leakage current contribute to improved performance in high-frequency snubber circuits, switching power supplies, resonators, and high-voltage DC blocking applications.
Supplied as reels, these capacitors are compatible with automated assembly lines and provide consistent quality and performance in mass production scenarios. This multilayer ceramic capacitor offers high capacitance stability and low loss for precision electronic circuits.
Surface mount termination enables efficient and reliable soldering for assembly automation. Wide operating temperature range supports use in industrial, automotive, and commercial applications. Compact 1808 package optimizes PCB space utilization without compromising performance.
Ideal for snubbers, resonators, DC blocking, and power electronic converters. Explore more electronic components including Multilayer Ceramic Capacitors at EnvMart for industrial and commercial electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 1 nanofarad (nF).
It has a voltage rating of 2 kilovolts direct current (2 kV dc).
The capacitor employs an X7R dielectric, which provides stable electrical characteristics over a wide temperature range.
The dimensions are 4.6 mm in length, 2 mm in width, and 2.2 mm in height.
It operates effectively within a temperature range from -55°C to 125°C.
The tolerance of this capacitor is ±10 %.
It is supplied in reel packaging, which facilitates automated manufacturing processes.
It features a surface mount termination type suitable for PCB assembly.
This model is ideal for use in snubbers, resonators, DC blocking, and power electronic converters.
The capacitor has low equivalent series resistance (ESR), contributing to improved performance in high-frequency applications.
The country of origin for this capacitor is India.
This model belongs to the FLEXITERM series, which ensures reliable termination suitable for various environmental conditions.
