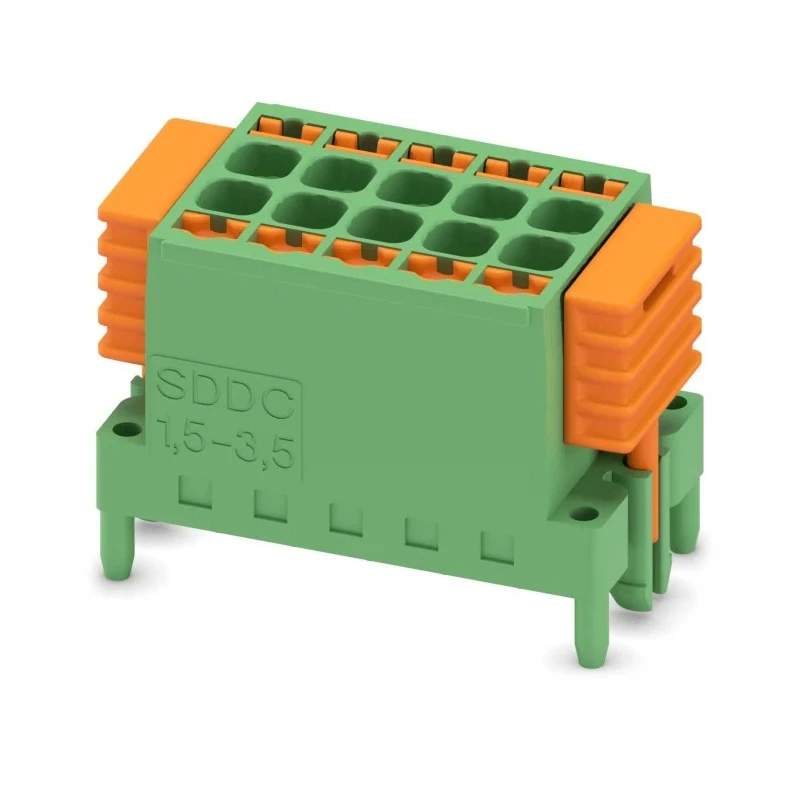

Phoenix Contact SDDC 1.5/5-PV-3.5 Series PCB Terminal Block, 5-Contact, 3.5 mm Pitch, 2 Row, 160V, 8A, Polyamide 1848671

Phoenix Contact 1848671 SDDC 1.5/5-PV-3.5 Series PCB Terminal Block is a high-quality electronic connector designed for industrial and electronic applications requiring reliable PCB connections.

This product features a 5-contact configuration with a 3.5 mm pitch arranged in two rows, enabling a compact and high-density installation on printed circuit boards. The terminal block utilizes advanced SKEDD direct plug-in technology which eliminates the need for additional plug and header components, reducing cost and assembly complexity.

The push-in spring connection mechanism allows screwless and tool-free wire termination, significantly reducing installation time and improving wiring reliability. The green polyamide housing provides excellent mechanical stability and environmental resistance, while locking tabs ensure a vibration-proof connection on the PCB.

It supports wire sizes ranging from 0.2 mm² to 1.5 mm² (equivalent to AWG24 to AWG16), providing versatile application options. Rated for 160 volts and a current carrying capacity of 8 amperes, this terminal block is suitable for various sectors including automotive, industrial electronics, machine construction, control cabinets, consumer electronics, solar power systems, medical devices, and white goods manufacturing.

Its compact dimensions of 24.8 mm length, 13.5 mm width, and 17.6 mm depth optimize PCB space usage without compromising connectivity and durability. Manufactured in Germany, it meets stringent quality and reliability standards for demanding industrial environments.

High-density double row design ideal for compact PCB layouts. Push-in screwless spring connection enables fast and tool-free wiring. Direct SKEDD plug-in technology ensures reliable, gas-tight PCB contacts without additional headers.

Green polyamide housing with locking tabs for secure, vibration-resistant installation. Supports wire sizes from 0.2 to 1.5 mm² (AWG24 to AWG16) for versatile connectivity. Voltage rating up to 160V and current rating of 8A suitable for diverse electronic applications.

Compact dimensions of 24.8 x 13.5 x 17.6 mm optimize PCB space usage. Manufactured in Germany ensuring high quality and reliability.

This Phoenix Contact PCB Terminal Block series is widely used across industrial, automotive, consumer electronics, machine construction, control cabinets, solar power, and medical systems, providing a durable and easy-to-install solution for powering and signal transmission needs.
