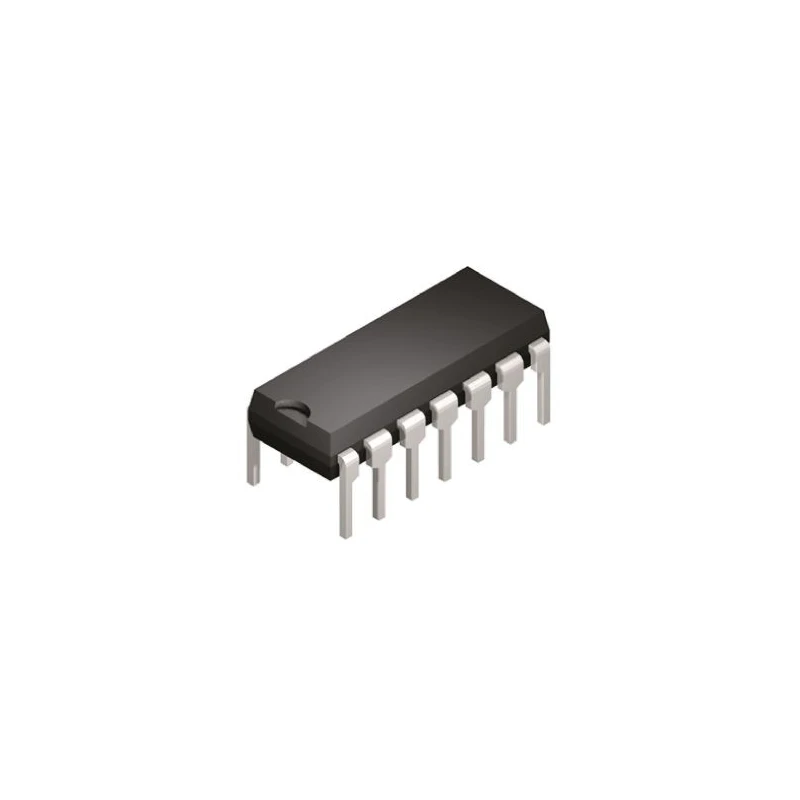

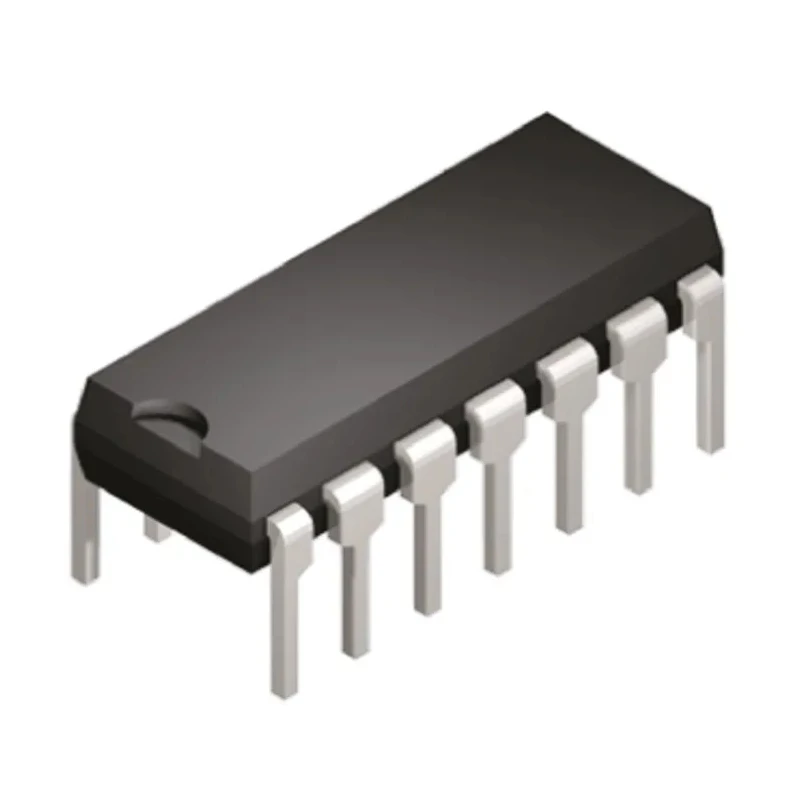

Texas Instruments Operational Amplifier 5.8 MHz, 14-Pin PDIP, 22V TLE2144CN

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Operational Amplifier 5.8 MHz, 14-Pin PDIP, 22V TLE2144CN

Name: Texas Instruments Operational Amplifier 5.8 MHz, 14-Pin PDIP, 22V TLE2144CN
Brand: Texas Instruments
SKU: 202714
Price: 9.23 USD
Availability: InStock



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	TLE2144CN
Width	6.35mm
Mount Type	Through Hole
Series	TLE2144
Output Current	80mA
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Number Of Channels	4
Standards/Approvals	RoHS
Pin Count	14
Automotive Standard	AEC-Q100
Maximum Supply Voltage	22V
Minimum Supply Voltage	5V
GBP - Gain Bandwidth Product	5.8MHz
Input Bias Current	-1.6 μA
Slew Rate	45V/μs
Input Offset Current	150 nA

Key Features

High gain bandwidth product of 5.8 MHz for rapid signal amplification.
14-pin PDIP through-hole mount suitable for robust PCB integration.
Wide operating voltage range from 5V to 22V supports diverse applications.
Quad channel configuration enhances circuit design flexibility.
Slew rate of 45 V/µs allows fast response to input signal changes.
Input offset voltage of 3.2 µV ensures precision performance.
Output current capability up to 80 mA for driving various loads.
Operational temperature range from 0°C to 70°C supports standard industrial conditions.

Product Description

Texas Instruments TLE2144CN is a precision quad operational amplifier designed for high-performance analog signal processing applications requiring a gain bandwidth product of 5.8 MHz and a 14-pin PDIP through-hole package. Operating within a supply voltage range of 5V to 22V, this device is optimized for reliability across industrial temperature ranges of 0°C to 70°C.

The amplifier features an input offset voltage of just 3.2 µV and a slew rate of 45 V/µs, enabling high accuracy and fast response in complex circuits. Its output current capability of 80 mA allows it to drive a variety of loads in demanding applications.

Compliant with RoHS standards and holding the automotive AEC-Q100 certification, the TLE2144CN meets stringent quality and environmental guidelines, making it suitable for use in automotive, industrial, and general electronics applications.

The device's 14-pin PDIP package facilitates through-hole mounting on printed circuit boards, providing robust mechanical and electrical connections in experimental designs, prototyping, and production environments.

Typical use cases include precision signal conditioning, active filtering, instrumentation amplifiers, and other analog processing roles in industrial and electronic development laboratories.

High gain bandwidth product of 5.8 MHz for rapid signal amplification. 14-pin PDIP through-hole mount suitable for robust PCB integration. Wide operating voltage range from 5V to 22V supports diverse applications. Quad channel configuration enhances circuit design flexibility.

Slew rate of 45 V/µs allows fast response to input signal changes. Input offset voltage of 3.2 µV ensures precision performance. Output current capability up to 80 mA for driving various loads. Operational temperature range from 0°C to 70°C supports standard industrial conditions.

Automotive grade with AEC-Q100 standard certification for reliability. Compliant with RoHS environmental standards for manufacturing.
