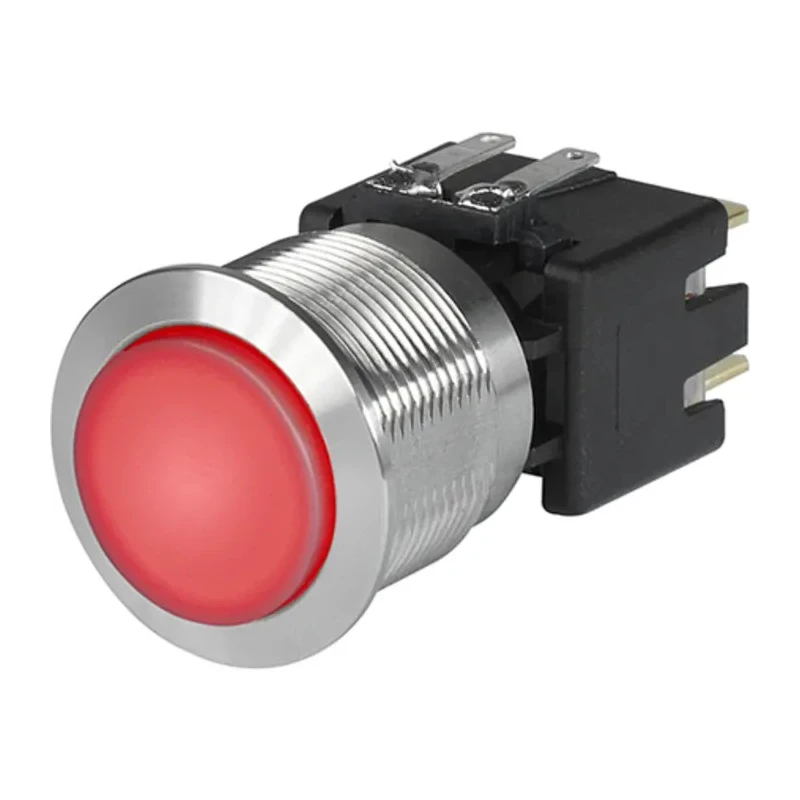

Schurter MSM LA CS 22 Series Illuminated Latching Push Button Switch, Panel Mount, 22.1 mm Cutout, DPDT, Red LED 3-101-031

Schurter 3-101-031 MSM LA CS 22 Series illuminated latching push button switch is engineered for robust panel-mounted switching applications. Featuring a 22.1 mm cutout size, this DPDT (Double Pole Double Throw) switch integrates a red LED illumination powered by a 24 V DC supply to clearly indicate operational status.

The switch booth boasts a rugged stainless steel housing and a push button actuator made from scratch-proof ceramic, making it well-suited for demanding industrial environments including vending machines, ticketing terminals, restaurant equipment, and public or sanitary installations where vandal resistance is critical.

The latching operation ensures reliable switching with an actuator travel exceeding 5 mm, providing confirmatory tactile feedback and preventing accidental activation. The actuator protrudes from the panel when off and recesses when on, enhancing user friendliness and safety.

Rated for currents up to 16A at 250V AC/DC, the switch supports solder pin terminals for secure connectivity. Its IP40 and IP64 ingress protection ratings provide dust and moisture resistance, while IK 07 shock protection rating ensures durability against mechanical impact.

Operating temperature ranges from -25°C to 85°C, making this switch suitable across diverse climatic conditions. The product meets comprehensive safety and quality standards including UL 1054, UL CSA E-41791, DIN EN 61058-1, and KEMA ENEC certification, assuring professional industrial-grade performance.

This push button switch is ideal for use in industrial, commercial, and automation sectors requiring durable user interfaces for control panels. Its robust design and advanced features contribute to longevity and reliable performance in challenging environments.

The switch operates with a latching mechanism providing reliable on/off control. It includes a scratch-proof ceramic actuator within a sturdy stainless steel housing. Red LED illumination is powered by a 24 V DC supply for clear status indication.

The switch supports a contact rating of 16A at 250V AC or DC voltage. It is rated with IP40 and IP64 for protection against dust and water ingress. Suitable for harsh environments with shock protection rated IK 07 and operating temperatures from -25°C to 85°C.

The actuator provides over 5 mm travel for better tactile feedback and prevents inadvertent switching. Mounting is panel style with solder pin terminals for secure electrical connection. Complies with UL, CSA, DIN EN, and KEMA ENEC standards for safety and quality assurance.
