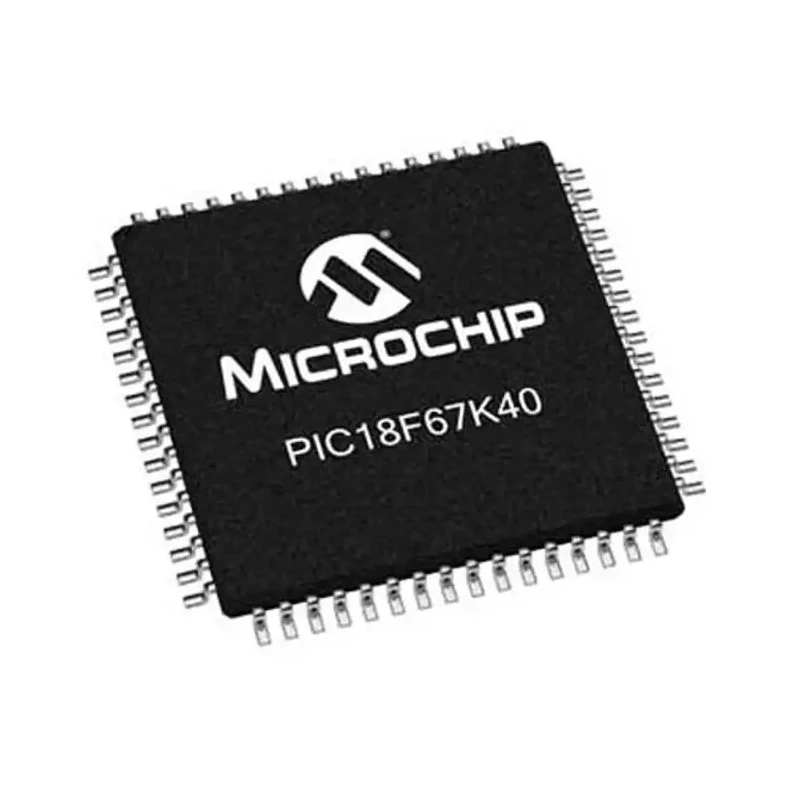

Microchip PIC18 8-bit Microcontroller 64 MHz, 128 kB FLASH, 64-Pin TQFP PIC18F67K40-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F67K40-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18 |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.56kB |
| Communications | 2 x I²C/SPI, 5 x EUSART with LIN support |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 59 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 128kB |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 47 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates on low power with a voltage range of 2.3 V to 5.5 V.
- Equipped with 3.56 kB RAM and 128 kB of FLASH program memory.
- Includes 59 programmable I/O pins for versatile interfacing.
- Features 47 channels of 10-bit ADC and 1 channel 5-bit DAC for analog input/output.
- Contains 2 timers and 3 analog comparators to support control applications.
- Communication interfaces include 2 I²C/SPI and 5 EUSART ports with LIN support.
- Industrial-grade operational temperature range from -40°C to 85°C.
- Designed with RISC architecture supporting 83 instructions and 31 stack levels.
Product Description
Microchip PIC18F67K40-I/PT is a low-power 8-bit microcontroller designed for general purpose and low power embedded applications. Featuring a robust 64 MHz internal oscillator and 128 kB of FLASH memory, this device fits compactly within a 64-pin Thin Quad Flat Package (TQFP) with dimensions of 10 mm by 10 mm by 1.05 mm height.
Operable at supply voltages ranging from 2.3 V to 5.5 V, the microcontroller offers 3.56 kB RAM alongside a rich peripheral set that includes 59 programmable I/O pins, 47 channels of 10-bit analog-to-digital converters (ADC), and a single 5-bit digital-to-analog converter (DAC). Two onboard timers and three analog comparators enable precise event timing and signal monitoring, supporting complex control and measurement tasks.
Communications are versatile with dual I²C/SPI interfaces and five enhanced universal synchronous asynchronous receiver/transmitter (EUSART) ports featuring LIN protocol support, making it suitable for automotive and industrial bus systems although it is not certified explicitly for automotive standards. Operating temperatures span from -40°C to 85°C, making this microcontroller suitable for industrial environments.
The architecture employs a Reduced Instruction Set Computer (RISC) design featuring 83 instructions and deep 31-level stack support for efficient program execution. The device features in-system programming and debugging capabilities via ICSP and is RoHS compliant, promoting compliance with environmental regulations.
Operates at 64 MHz maximum clock frequency. Includes 59 programmable I/O pins for flexibility. Supports multiple communication protocols including I²C, SPI, and EUSART LIN. Wide operating temperature range suitable for industrial use.
Compact 64-pin TQFP packaging for space-constrained designs.
This microcontroller is ideal for embedded system developers seeking a versatile, power-efficient device with ample memory and strong peripheral integration in applications including industrial control, consumer electronics, and low power devices.
Explore our extensive collection of Microchip PIC Microcontrollers on EnvMart for reliable components tailored to your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
This model operates on a supply voltage range of 2.3 V to 5.5 V.
It is equipped with 128 kB of FLASH program memory.
The dimensions of this microcontroller are 10 mm in length, 10 mm in width, and 1.05 mm in height.
This model includes 59 programmable I/O pins for versatile interfacing.
It supports 2 I²C/SPI interfaces and 5 EUSART ports with LIN support.
The operating temperature range is from -40°C to 85°C, suitable for industrial environments.
This microcontroller has 3.56 kB of RAM.
It employs a Reduced Instruction Set Computer (RISC) architecture with 83 instructions.
It features 47 channels of 10-bit ADCs.
This model includes 2 onboard timers for event timing and control applications.
The microcontroller comes in a Thin Quad Flat Package (TQFP).
