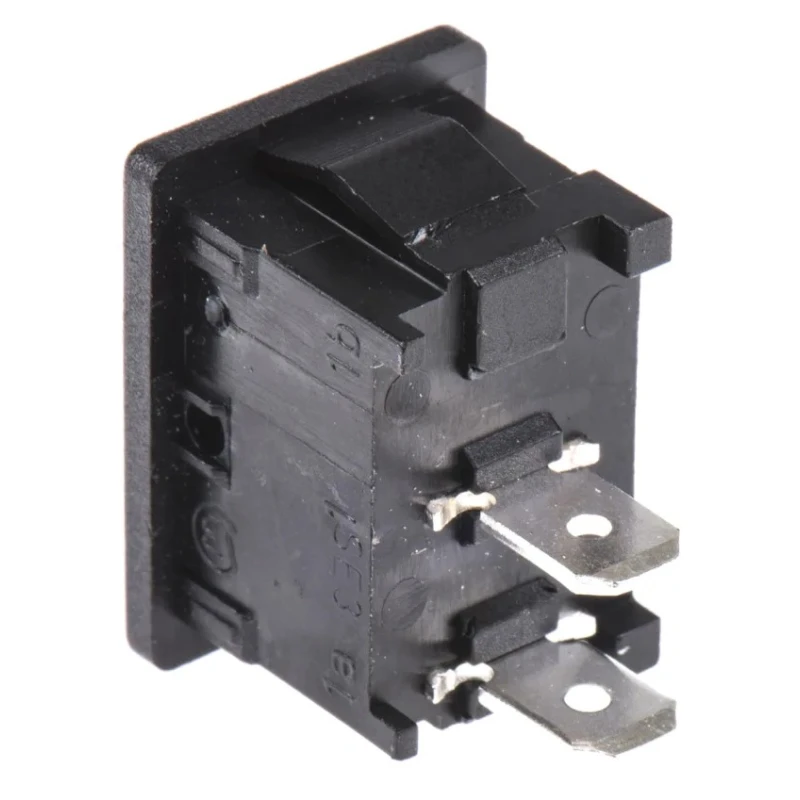

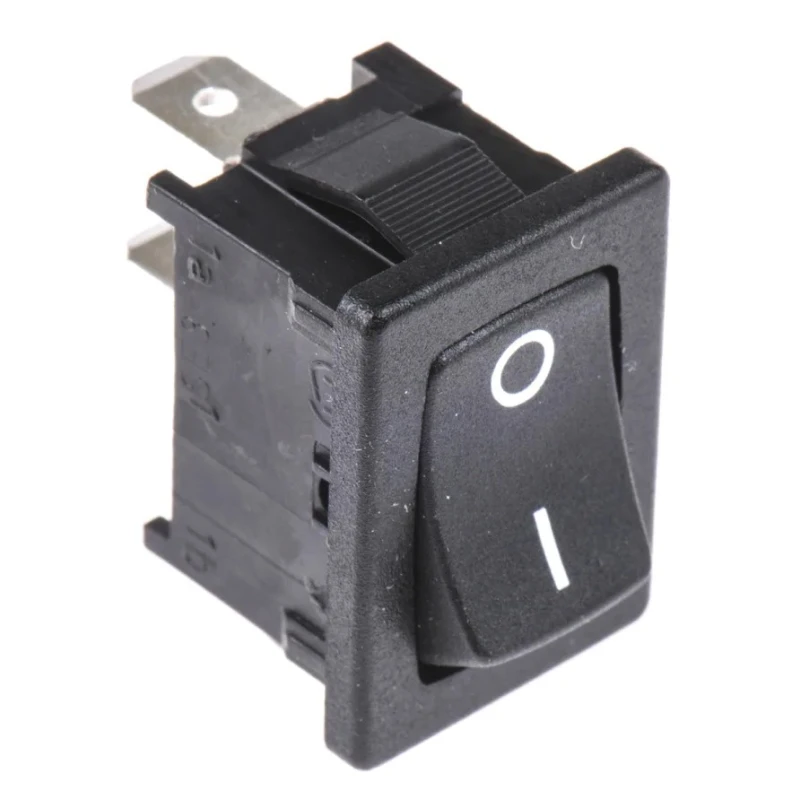

Marquardt SPST On-Off On-Off Rocker Switch Panel 1801.1146 10A 28V DC 250V AC IP40
Specifications
| Country of Origin | India |
|---|---|
| Brand | Marquardt |
| IP Rating | IP40 |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | 1800 |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19.4 x 12.9 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, CSA, CE, BS |
| Switch Operation | On-Off |
| Actuator Colour | Black |
| Contact DC Voltage | 28V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 10A |
| Contact AC Voltage | 250V ac |
| Legend | On (Symbol), Off (Symbol) |
Key Features
- This rocker switch panel features a single pole single throw (SPST) contact configuration.
- The switch operation is On-Off with clear symbol legends for ease of use.
- Rated contact current is 10A, suitable for control circuits up to 28V DC and 250V AC.
- Mount type is panel with a cutout size of 19.4 x 12.9 mm and quick connect terminal type.
- Durable polyamide construction supports operating temperatures from -25°C to 100°C.
- IP40 rated housing ensures protection against solid objects while not waterproof.
- The actuator style is rectangular and colored black for clear visibility.
- Compliance with VDE, UL, RoHS, CSA, CE, and BS standards guarantees safety and quality.
Product Description
Marquardt 1801.1146 SPST On-Off On-Off Rocker Switch Panel offers reliable switching performance for electrical and automation applications. Featuring a single pole single throw (SPST) contact configuration, this rocker switch provides stable On-Off control with clear on and off symbol legends. The switch body is made from robust polyamide, providing durability and insulation, while the actuator is styled as a rectangular, black rocker for ergonomic operation.

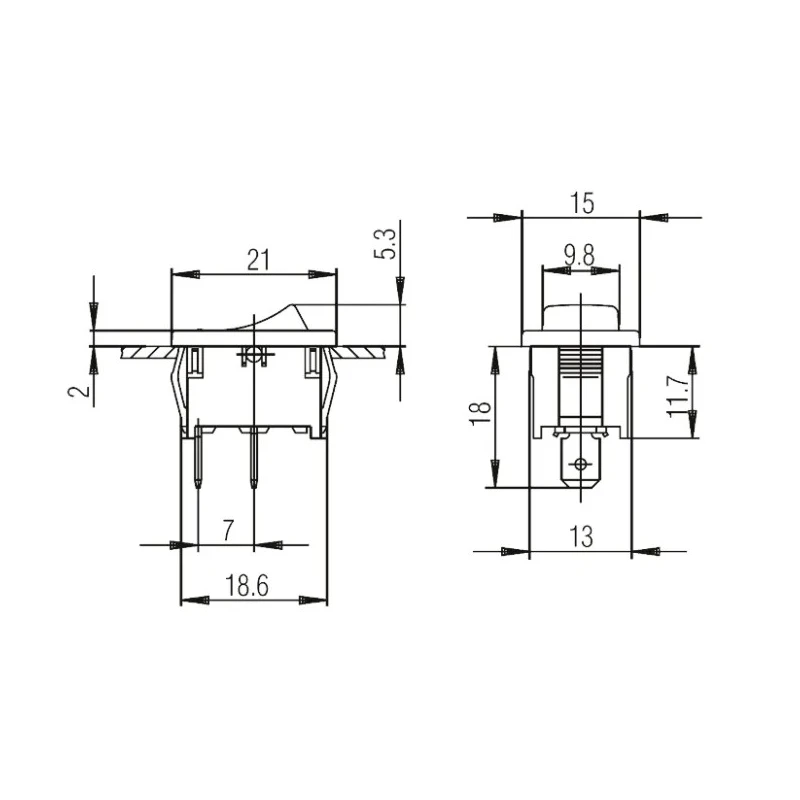

The panel mount design requires a precise cutout measuring 19.4 x 12.9 mm and supports panel thicknesses typically between 0.75 to 3 mm. Quick connect terminals enable straightforward installation and maintenance. This switch supports an electrical rating of 10A at 28V DC and 250V AC, making it versatile for numerous industrial and commercial electrical control systems.
Operating temperature ranges from -25°C up to 100°C ensure robustness for diverse environmental conditions. The IP40 rating protects the switch against solid foreign objects, enhancing its reliability in standard industry settings. Compliance with recognized safety and quality standards such as VDE, UL, RoHS, CSA, CE, and BS further assures product dependability.
The Marquardt 1800 series includes various rocker switch styles, but this specific model 1801.1146 focuses on a non-illuminated, durable solution for on-off panel switching tasks. Its silver contacts provide efficient conductivity and long service life.
This rocker switch panel is ideally applied in electrical panels, industrial machinery, automation control, and household Class II appliances. The compact design and standard mounting specifications allow easy integration into existing control setups.
Panel thickness compatibility and quick connect terminals simplify user installation and replacement procedures. The robust switching capacity supports higher inrush currents typical in capacitive load conditions. The long operating temperature range suits use in indoor and covered outdoor equipment environments.
Explore the range of Marquardt Rocker Switches on EnvMart for industrial electrical components optimized for safety and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a contact current rating of 10A and supports 28V DC and 250V AC.
The required cutout size for this model is 19.4 x 12.9 mm.
It operates within a temperature range of -25°C to 100°C.
This model features quick connect terminals for easy installation.
The switch has an IP40 rating, providing protection against solid objects but not waterproof.
It complies with VDE, UL, RoHS, CSA, CE, and BS standards, ensuring safety and quality.
The actuator is rectangular in style and colored black for clear visibility.
It features a single pole single throw (SPST) configuration with On-Off operation.
It is commonly used in electrical panels, industrial machinery, automation control, and household Class II appliances.
The housing is made from durable polyamide, providing insulation and robustness.
This model belongs to the Marquardt 1800 series of rocker switches.
The switch features clear symbols for On and Off operations for ease of use.
