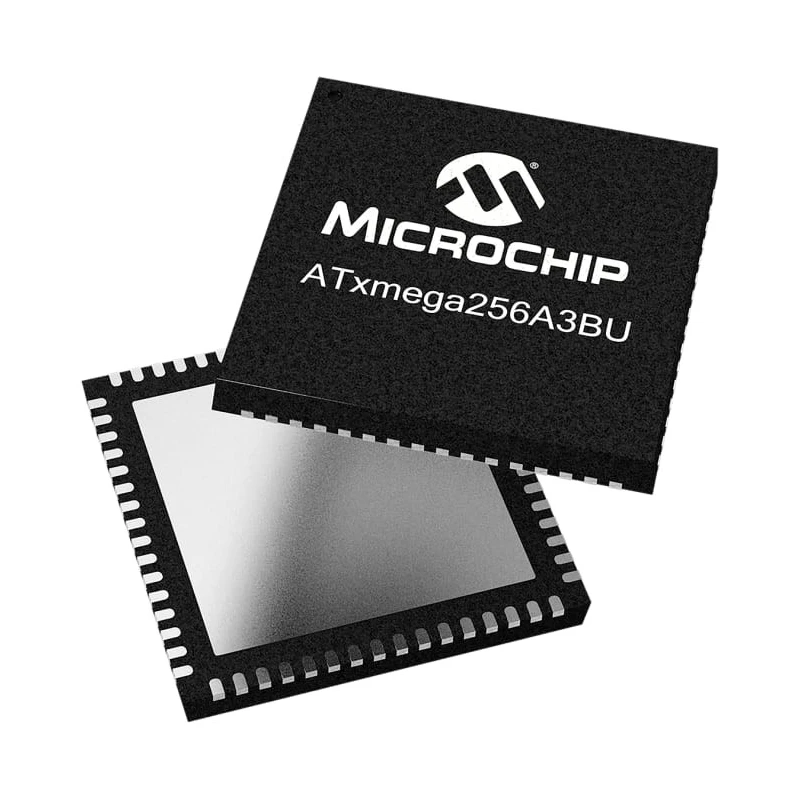

Microchip 16 bit AVR AVR XMEGA Microcontroller 32 MHz 256 kB FLASH 64-Pin QFN ATXMEGA256A3U-MH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 9.1mm |
| Model | ATXMEGA256A3U-MH |
| Width | 9.1mm |
| Mount Type | Surface |
| Series | AVR XMEGA |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Interface Type | PDI, SPI, TWI, USART |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.6V |
| Device Core | AVR |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 50 |
| Analogue Comparators | 4 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Features a 16-bit AVR architecture optimized for real-time performance and low power consumption.
- Equipped with 64-pin QFN surface mount package for compact design integration.
- Offers 50 programmable I/Os, 2 x 12-bit DACs, 16 x 12-bit ADCs, and 4 analogue comparators.
- Operates between 1.6V and 3.6V supply voltage with a temperature range from -40°C to 85°C.
- Incorporates an asynchronous event system and a 4-channel direct memory access controller for efficient peripheral communication.
- Instruction set uses a RISC architecture with high execution speed of nearly 1 MIPS per MHz.
Product Description
Microchip ATXMEGA256A3U-MH is a 16 bit AVR AVR XMEGA microcontroller designed for applications requiring high real-time performance, high integration, and low power consumption. Operating at up to 32 MHz clock speed, it features 256 kB of FLASH program memory and 16 kB of RAM, making it suitable for complex embedded systems.
The device is supplied in a 64-pin QFN package with a compact 9.1 mm square footprint and a height of 950 μm, offering an efficient form factor for space-constrained designs. It supports surface mounting for reliable PCB integration.
This microcontroller supports a variety of interfaces including PDI, SPI, TWI, and USART, enabling versatile peripheral connectivity. It offers 50 programmable I/O pins, 2 x 12-bit digital-to-analog converters (DACs), 16 x 12-bit analog-to-digital converters (ADCs), and 4 analogue comparators which provide advanced analog interface capabilities.
The device operates within a voltage range of 1.6 V to 3.6 V and can function reliably under environmental temperatures from -40°C to 85°C, making it suitable for industrial and automotive applications as well.
Advanced features include an asynchronous event system enabling inter-peripheral communication with reduced CPU intervention, and a 4-channel direct memory access (DMA) controller for efficient data transfer. The AVR architecture ensures single-cycle execution of arithmetic and logic operations, providing excellent code density and performance with nearly 1 MIPS per MHz.
16 bit AVR architecture optimized for real-time and low power. 64-pin QFN package for surface mount applications. 256 kB FLASH and 16 kB RAM memory. 50 programmable I/Os with multiple interfaces. 2 DACs and 16 ADCs with 4 analog comparators.
Operating voltage from 1.6 V to 3.6 V. Temperature range from -40°C to 85°C for robust operation. Advanced Event System and 4-channel DMA controller. RISC instruction set with high execution speed.
This microcontroller finds use in industrial control, automotive, consumer electronics, and embedded system design where high performance and low power are critical. Microchip’s AVR XMEGA line provides a reliable platform for varied applications requiring complex control and signal processing capabilities.
Explore more Microcontrollers and embedded solutions with Microchip at EnvMart for innovative design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the ATXMEGA256A3U-MH microcontroller is 32 MHz.
It operates within a voltage range of 1.6 V to 3.6 V.
This model features 256 kB of FLASH program memory.
The QFN package has a length and width of 9.1 mm and a height of 950 μm.
There are 50 programmable I/O pins available on this microcontroller.
It supports PDI, SPI, TWI, and USART interfaces for versatile peripheral connectivity.
The device can function reliably within a temperature range of -40°C to 85°C.
This model is equipped with 16 x 12-bit analog-to-digital converters (ADCs).
It incorporates an asynchronous event system and a 4-channel direct memory access (DMA) controller for efficient peripheral communication.
It utilizes a 16-bit AVR architecture optimized for real-time performance and low power consumption.
The microcontroller has 16 kB of RAM memory.
Yes, this model is RoHS compliant, ensuring it meets environmental standards.
