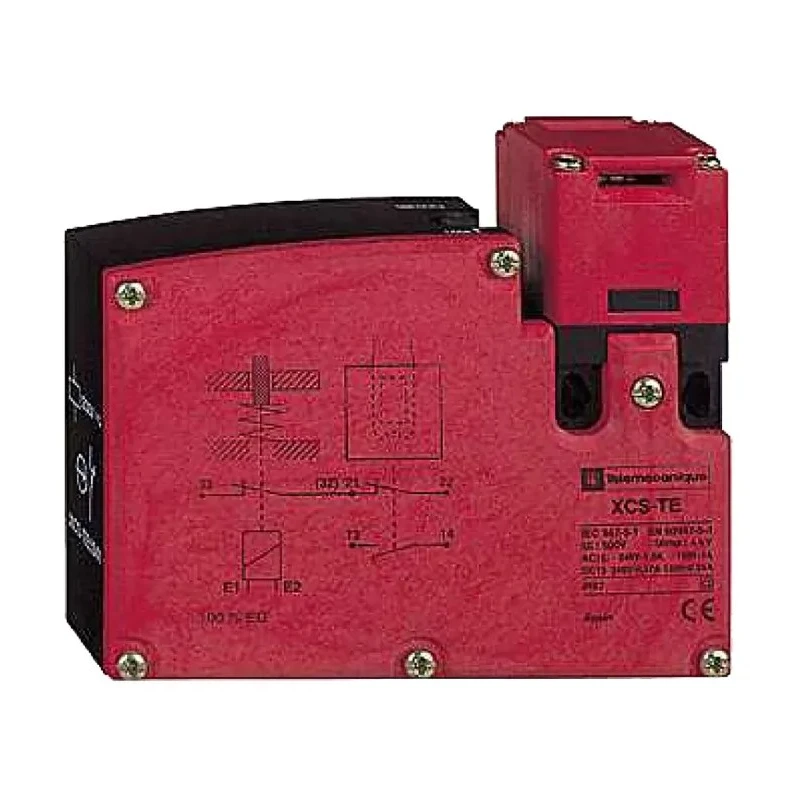

Telemecanique Sensors XCS-TE Series Solenoid Interlock Switch Key Actuator 2 NC Safety Contacts 250V DC 240V AC XCSTE7511

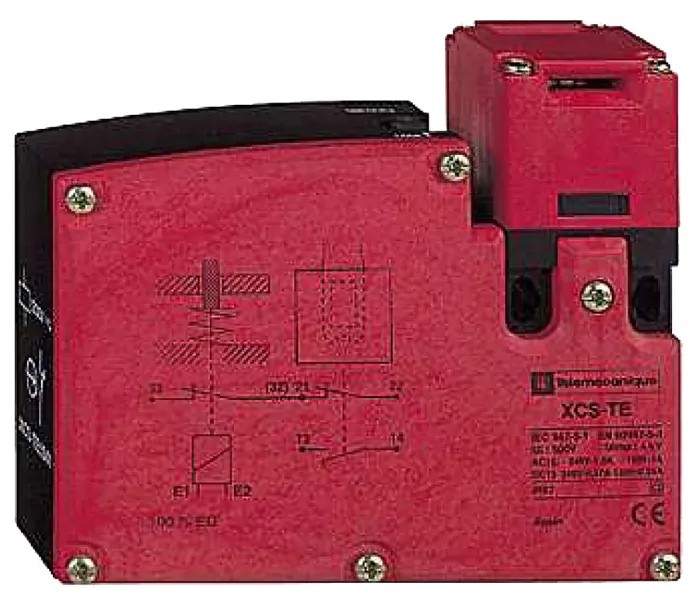

Telemecanique Sensors XCSTE7511 XCS-TE Series Solenoid Interlock Switch is a safety device engineered for industrial machinery protection. Featuring a key actuator type and two normally closed safety contacts, this switch prevents machine operation when guards or doors are open, ensuring operator safety.

The XCSTE7511 model incorporates a continuously rated 10VA solenoid with voltage limits of -20% to +10%, including ripple on DC, to maintain consistent performance. The switch housing is made from durable plastic material and meets IP67 ingress protection standards, making it resistant to dust and water intrusion.

With dimensions of 110mm length, 33mm width, and 94mm depth, it offers a compact form factor suitable for installations on small movable guards complying with safety standards EN1088, EN60204, and EN292. The 2 positive opening safety contacts and 1 normally closed auxiliary contact provide reliable switching output for safety circuit integration.

The key-operated lock function allows authorized personnel to override the solenoid when necessary for maintenance or safety procedures. Turret heads support 360° rotation in 90° steps, permitting multiple actuator entry positions to accommodate different guard designs.

This Solenoid Interlock Switch is ideal for light duty industrial machines where guarding and controlled access are critical, including automation, manufacturing, and laboratory equipment sectors. Its rugged construction and certifications, including RoHS compliance, ensure longevity and regulatory adherence.

Designed for interlocking small moveable guards as per EN1088, EN60204, and EN292 safety standards. Equipped with 2 positive opening normally closed safety contacts and 1 normally closed auxiliary contact. Key-operated lock allows authorized override of solenoid control.

Continuously rated solenoid at 10VA with voltage tolerance of -20% to +10%, including DC ripple. Turret heads can be rotated 360° in 90° increments for flexible actuator entry positions. High ingress protection rating of IP67 ensures resistance to dust and water.

Housing made of durable plastic material for lightweight and robust construction. Compact dimensions: length 110mm, width 33mm, depth 94mm. Contact ratings: 250V DC and 240V AC suitable for various industrial control circuits.

Ideal for use in light duty industrial machinery safety systems requiring controlled access interlocks. Explore additional Telemecanique Sensors safety interlock switches and components in the EnvMart catalog to find solutions tailored for your specific industrial automation needs.
