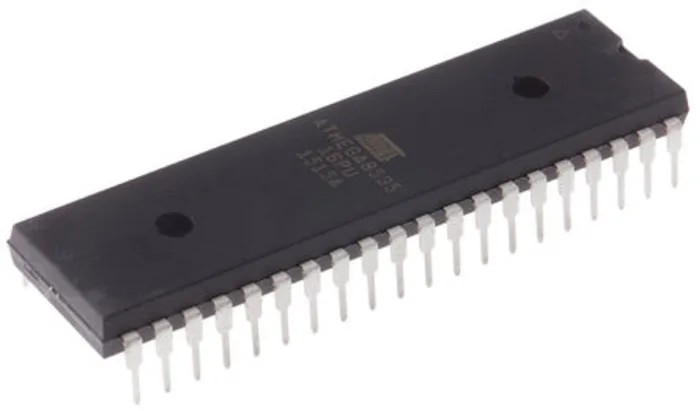

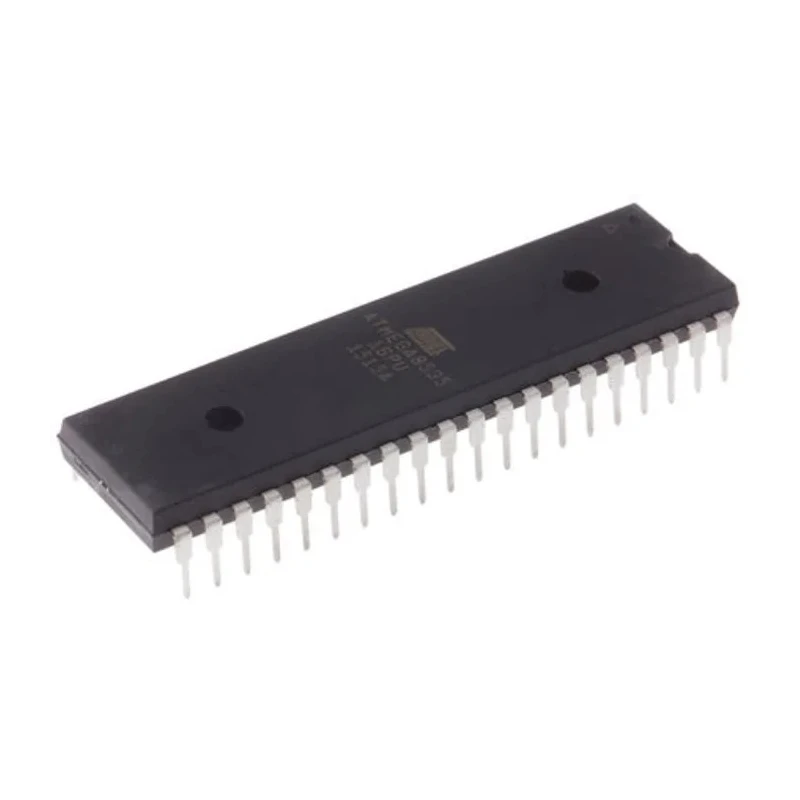

Microchip 8 bit AVR ATmega Microcontroller, 16 MHz, 8kB FLASH, 40-Pin PDIP ATMEGA8535-16PU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.44mm |
| Length | 52.57mm |
| Model | ATMEGA8535-16PU |
| Width | 13.97mm |
| Mount Type | Through Hole |
| Series | Atmega |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | SPI, USART |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 131-0347Brand: MicrochipManufacturers Part No.: ATMEGA8535-16PUDistrelec Article No.: 304-30-583 |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Device Core | AVR |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 32 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features 8-bit AVR architecture for efficient performance.
- Includes 512-bit RAM for temporary data storage.
- Operates within supply voltage range of 4.5V to 5.5V.
- Contains 32 programmable input/output pins for versatile interfacing.
- Supports SPI and USART interface types for communication.
- Designed with 2 timers to handle timing functions.
- Equipped with 8 ADC channels of 10-bit resolution for analog inputs.
- Operational temperature range from −40°C to 85°C for diverse environments.
Product Description
Microchip ATMEGA8535-16PU is an 8 bit AVR microcontroller designed for embedded systems requiring reliable performance at 16 MHz clock frequency with 8kB FLASH memory in a 40-Pin PDIP package. It incorporates an enhanced RISC architecture which enables efficient processing of tasks and supports in-system programmable FLASH memory for flexible development and updates.
This microcontroller operates on a supply voltage range of 4.5V to 5.5V and includes 512-bit RAM for temporary data storage. It features 32 programmable input/output pins suitable for a wide range of peripheral connections and supports SPI and USART interfaces for serial communication applications.
Equipped with 2 timers and 8 channels of 10-bit ADCs, the ATMEGA8535-16PU microcontroller is capable of managing complex timing and analog input tasks. Its operational temperature range of −40°C to 85°C ensures dependable function in industrial, automotive, and environmental conditions.
The product complies with RoHS standards, suitable for use in industrial automation, embedded control systems, consumer electronics, and automotive electronics. The compact form factor with dimensions 52.57 mm in length, 13.97 mm in width, and 4.44 mm height enables integration into various circuit designs.
Features 8-bit AVR architecture for efficient performance. Includes 512-bit RAM for temporary data storage. Operates within supply voltage range of 4.5V to 5.5V. Contains 32 programmable input/output pins for versatile interfacing.
Supports SPI and USART interface types for communication. Designed with 2 timers to handle timing functions. Equipped with 8 ADC channels of 10-bit resolution for analog inputs. Operational temperature range from −40°C to 85°C for diverse environments.
Program memory is FLASH type allowing in-system programmability. Compact body dimensions with length 52.57mm, width 13.97mm, and height 4.44mm.
This microcontroller is ideal for development in industrial, laboratory, automotive, and consumer electronics fields. Explore the full range of Microcontrollers and related components at EnvMart for your embedded design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 16 MHz.
It operates within a supply voltage range of 4.5V to 5.5V.
This model has an 8kB FLASH program memory size.
The dimensions are 52.57 mm in length, 13.97 mm in width, and 4.44 mm in height.
It features 32 programmable input/output pins.
This microcontroller supports SPI and USART interface types for communication.
The operational temperature range is from -40°C to 85°C.
It includes 512-bit RAM for temporary data storage.
This model is designed with 2 timers to handle timing functions.
It uses an 8-bit AVR architecture for efficient performance.
It complies with RoHS standards.
The package type is PDIP (Plastic Dual In-line Package).
