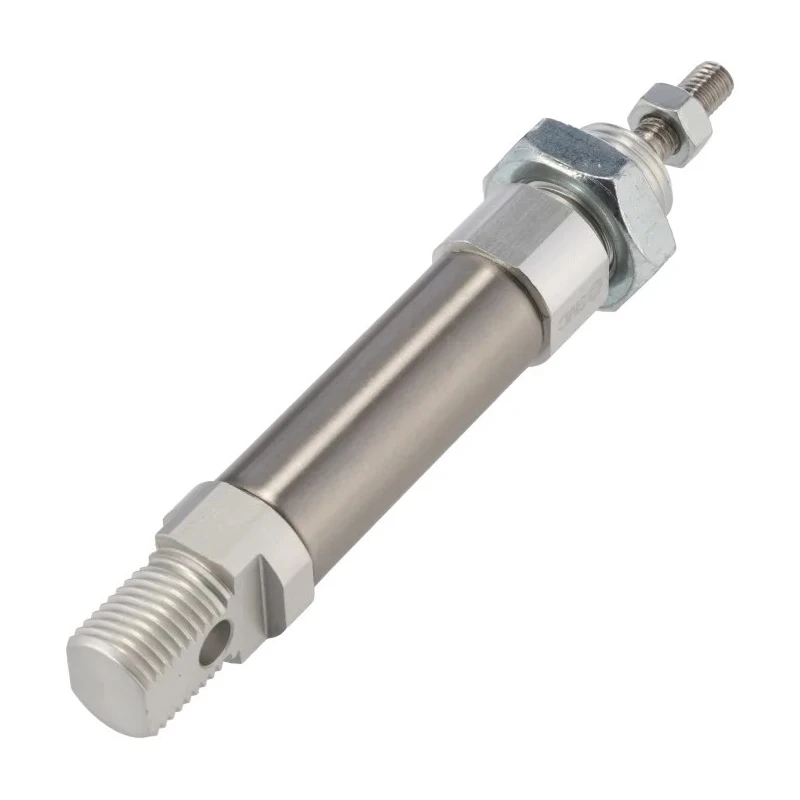

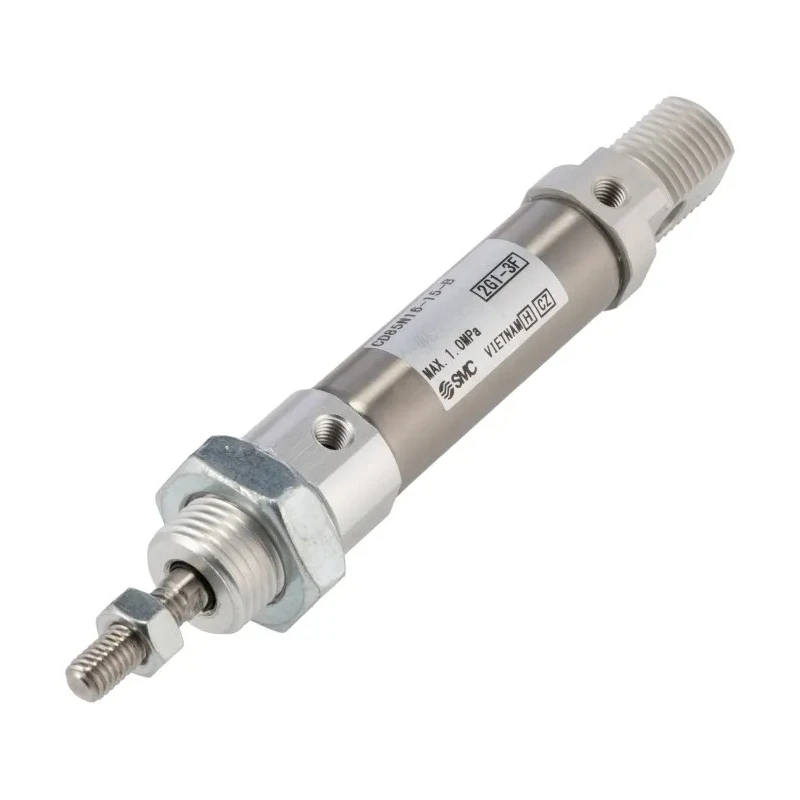

SMC Pneumatic Piston Rod Cylinder, 15 mm Stroke, 126 mm Length, Double Acting, Clevis Mount, Aluminium Alloy Body, Model CD85

SMC CD85N16-15-B Pneumatic Piston Rod Cylinder from the trusted CD85 series offers a compact, double-acting actuator solution designed for controlled linear motion in diverse industrial automation and fluid power applications. Featuring a 15 mm stroke and 126 mm overall length, this pneumatic cylinder is made with an aluminium alloy body that ensures lightweight and corrosion-resistant performance.

This cylinder supports a clevis mounting type that allows angular movement at the pivot, accommodating misalignments and oscillations in linked mechanisms. The rubber cushioning system absorbs kinetic energy at the ends of travel, significantly reducing shock loads to seals and bearings, thereby enhancing cycle life in high-frequency operations.

The single male piston rod uses a metric M6 thread for direct mechanical coupling, simplifying attachment of clevis pins, fittings, or end-effectors. This design allows efficient integration in tightly packaged mechanisms requiring short-stroke actuation.

Capable of piston speeds up to 1500 mm/s and rated for operation up to +60°C, the cylinder is suitable for high-cycle industrial automation uses such as pick-and-place units in assembly lines, compact conveyor diverter mechanisms, sensor-controlled indexing stages, panel or door latching in enclosures, and valve actuation within control cabinets.

Manufactured in France adhering to ISO 6432 standards, this product ensures premium quality and compatibility with standard pneumatic systems. Compact double-acting pneumatic actuator delivering 15 mm stroke length. Constructed from durable aluminium alloy for lightweight and corrosion resistance.

Clevis mount enables pivot installation for angular movement at the attachment point. Rubber cushioning reduces end-impact shock for enhanced cycle life. Single male piston rod with M6 metric thread for easy mechanical coupling.

Supports piston speeds up to 1500 mm/s suitable for high-cycle industrial applications. Rated to operate safely up to +60°C ambient temperature. Designed to meet ISO 6432 standards for quality and compatibility. Ideal for pick-and-place units, conveyor diverters, indexing stages, and valve actuation.

Manufactured in France ensuring premium build quality and reliability. Explore more Pneumatic Piston Rod Cylinders and actuators for industrial automation on EnvMart for reliable performance and engineering precision.
