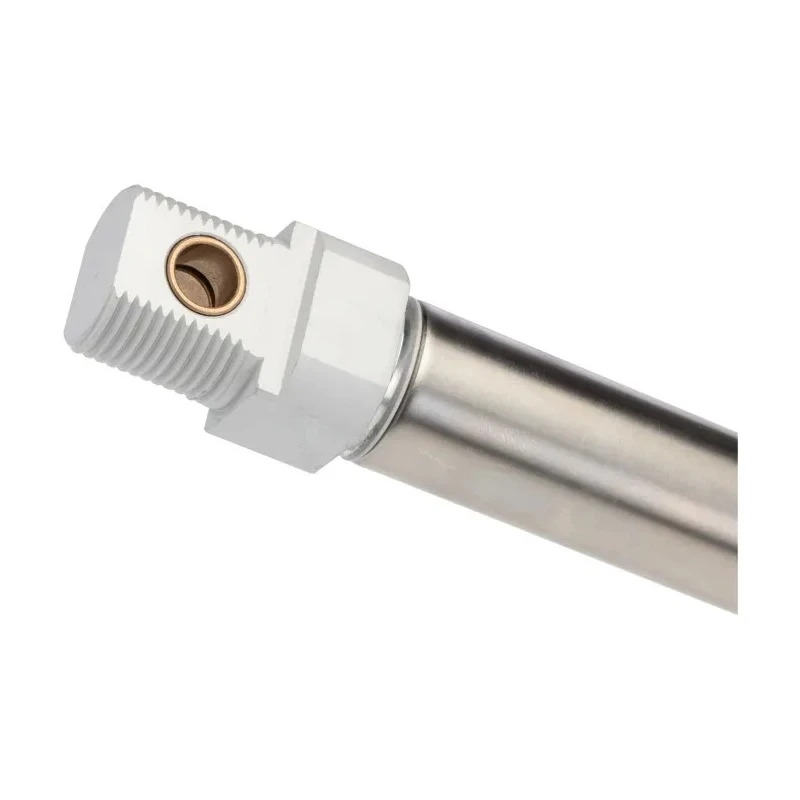

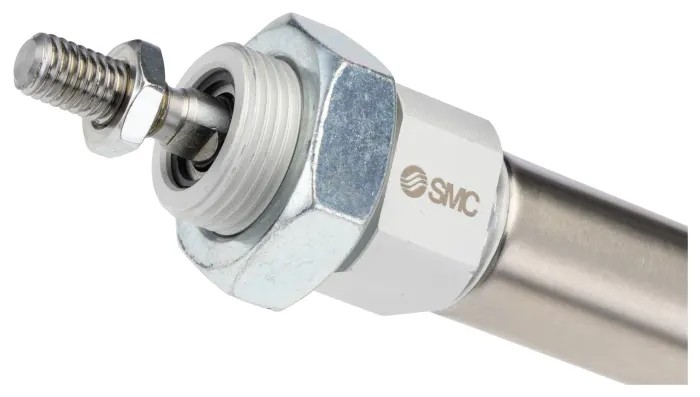

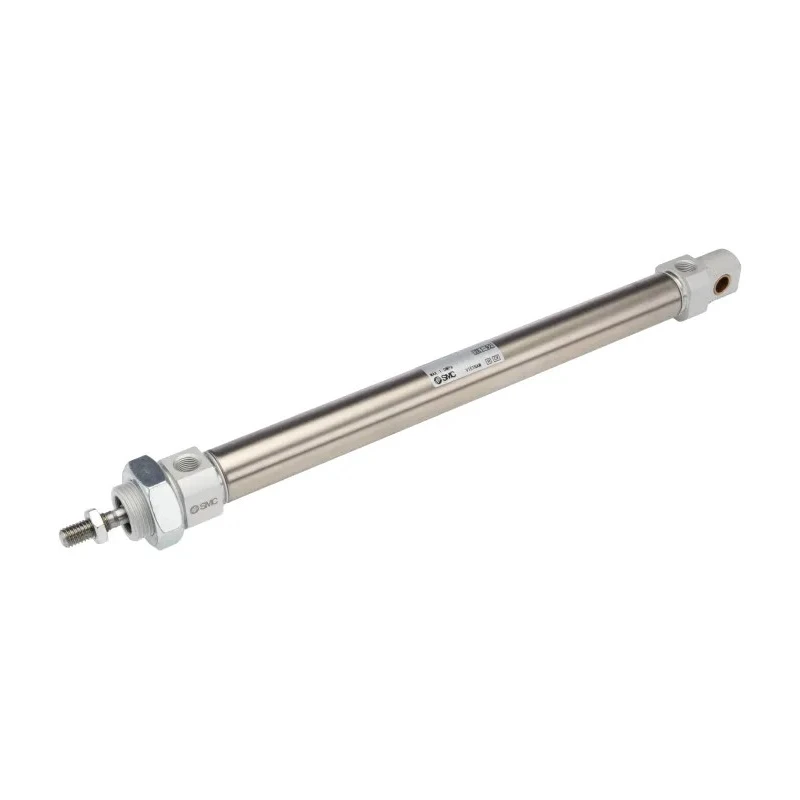

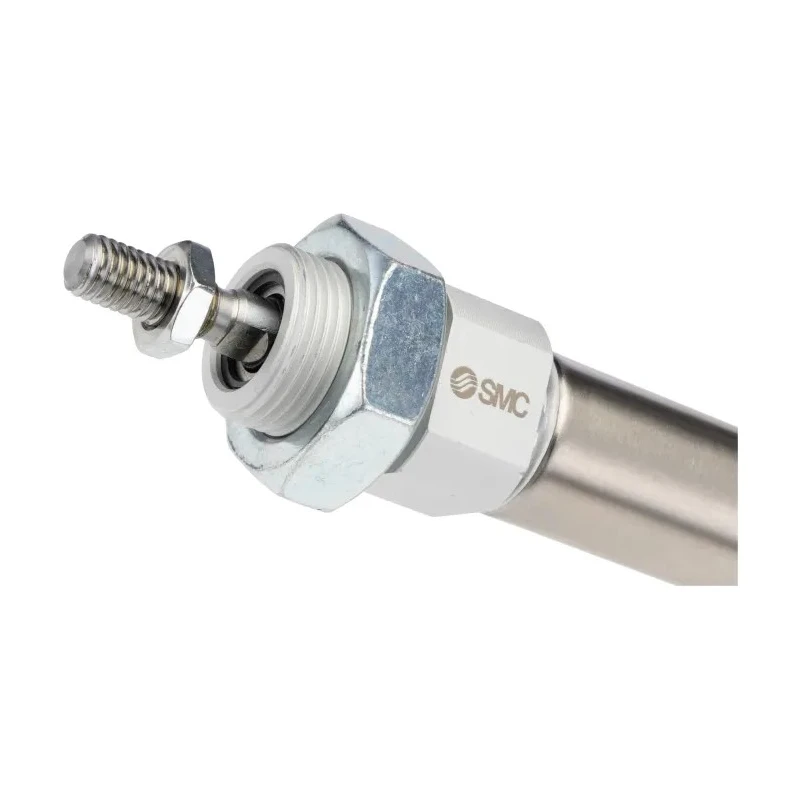

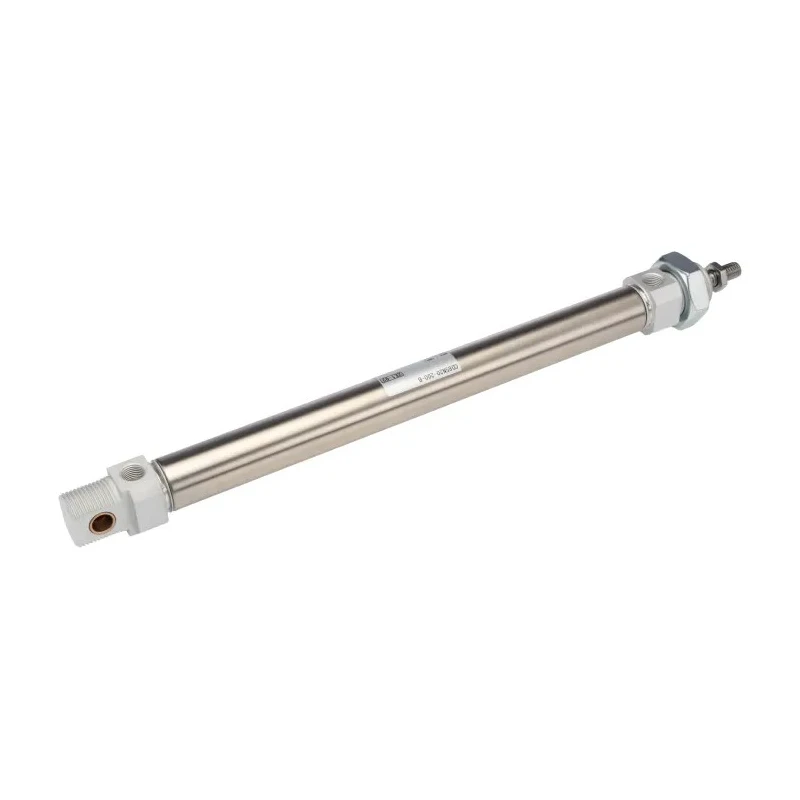

SMC Pneumatic Piston Rod Cylinder Double Acting Clevis Mount Aluminium Alloy Body 200mm Stroke CD85
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 326mm |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | +60°C |
| Stroke Length | 200mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M8 |
| RS PRO 200 mm Roundline Cylinder -RS Stock No. | 176-1634Brand: RS PRO |
Key Features
- Compact design for efficient linear motion tasks in automation.
- Double acting operation provides push and pull actuation.
- 200 mm stroke length ensures extended travel range.
- Rubber bumper cushioning reduces impact and prolongs cylinder life.
- Aluminium alloy body offers corrosion resistance and lightweight construction.
- Metric M8 threaded male piston rod enables secure mechanical coupling.
- Clevis mount allows for pivoting attachments with controlled angular movement.
- Supports piston speeds up to 1500 mm/s for rapid actuation cycles.
Product Description
SMC CD85N20-200-B Pneumatic Piston Rod Cylinder from the CD85 Series features a 200 mm stroke length and an aluminium alloy body designed for durability and lightweight industrial applications. This double acting cylinder uses a single male piston rod with an M8 metric thread and a clevis mount to facilitate flexible and reliable installation in various machine assemblies.
The rubber bumper cushioning efficiently absorbs kinetic energy at the stroke limits, minimizing rebound and mechanical shock to extend component lifespan. It operates reliably at piston speeds up to 1500 mm/s, supporting high-speed, repetitive actuation required in automated manufacturing and assembly lines.
Engineered to withstand temperatures up to +60°C, this pneumatic cylinder is suitable for use in environments with moderate heat exposure. Conformance to ISO 6432 compact cylinder standards ensures compatibility with other industrial pneumatic components and ease of integration into pneumatic control systems.
This cylinder is ideal for precise linear motion control tasks including pick-and-place modules in assembly stations, valve actuation in pneumatic control panels, positioning sensors and fixtures in test rigs, and material feeding mechanisms on conveyor lines.
Compact design for efficient linear motion tasks in automation. Double acting operation provides push and pull actuation. 200 mm stroke length ensures extended travel range. Rubber bumper cushioning reduces impact and prolongs cylinder life.
Aluminium alloy body offers corrosion resistance and lightweight construction. Metric M8 threaded male piston rod enables secure mechanical coupling. Clevis mount allows for pivoting attachments with controlled angular movement.
Supports piston speeds up to 1500 mm/s for rapid actuation cycles. Operating temperature capability up to +60°C for elevated temperature environments. Complies with ISO 6432 standards for dimensional interchangeability.
Used widely in industrial, manufacturing, automation, and pneumatic control applications, this cylinder is engineered to provide reliability and performance. Explore other pneumatic cylinders and actuators available in the EnvMart catalogue to suit your specific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic cylinder is 200 mm, allowing for extended travel range in linear motion applications.
This model features a clevis mount, which allows for pivoting attachments and controlled angular movement.
The maximum operating temperature for this cylinder is +60°C, making it suitable for moderate heat exposure environments.
The body of this cylinder is made from aluminium alloy, providing corrosion resistance and lightweight construction.
This unit supports piston speeds up to 1500 mm/s, enabling rapid actuation cycles for efficient operation.
This pneumatic cylinder complies with ISO 6432 standards, ensuring compatibility with other industrial pneumatic components.
This cylinder uses rubber bumper cushioning, which helps reduce impact and prolong the lifespan of the cylinder.
The piston rod has a metric M8 threaded male configuration, allowing for secure mechanical coupling.
This cylinder operates as a double acting unit, providing both push and pull actuation.
The overall length of this pneumatic cylinder is 326 mm, which is important for installation considerations.
This cylinder is suitable for applications such as pick-and-place modules, valve actuation, and material feeding mechanisms in automation.
This model features a single male piston rod, which is designed for effective actuation in various setups.
