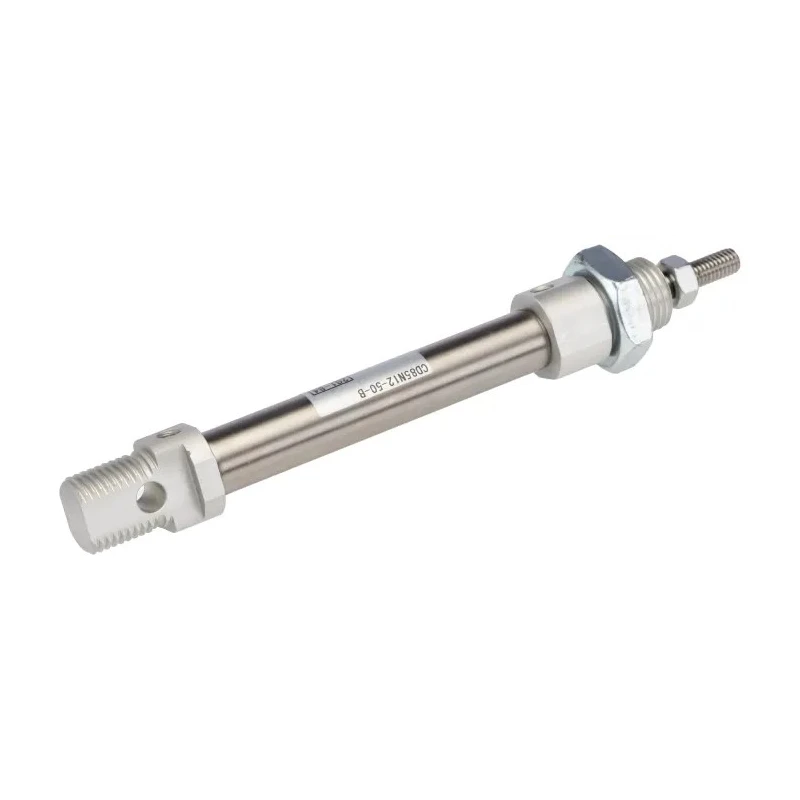

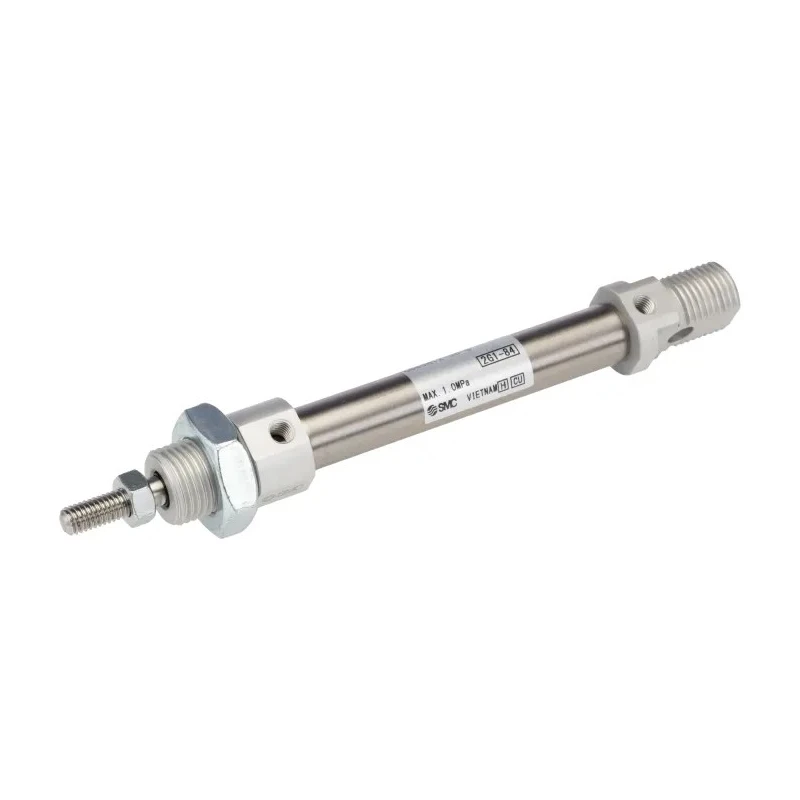

SMC 50 mm Pneumatic Piston Rod Cylinder Aluminium Alloy Body Double Acting Clevis Mount ISO 6432 CD85
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 155mm |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | +60°C |
| Stroke Length | 50mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M6 |
Key Features
- Compact cylinder with 155mm length suitable for space-constrained installations.
- Double acting with controlled bi-directional motion for precise actuation.

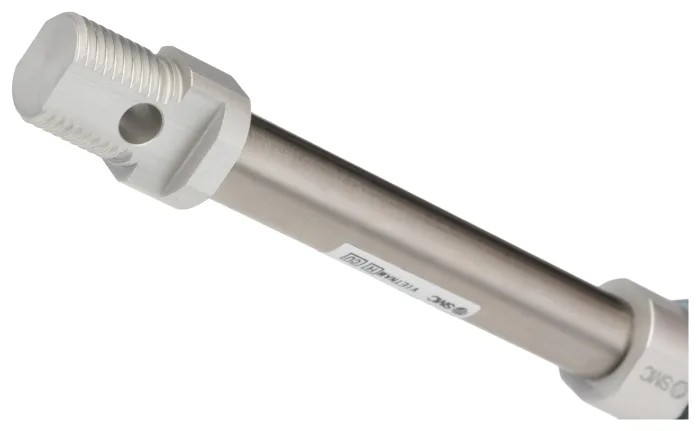

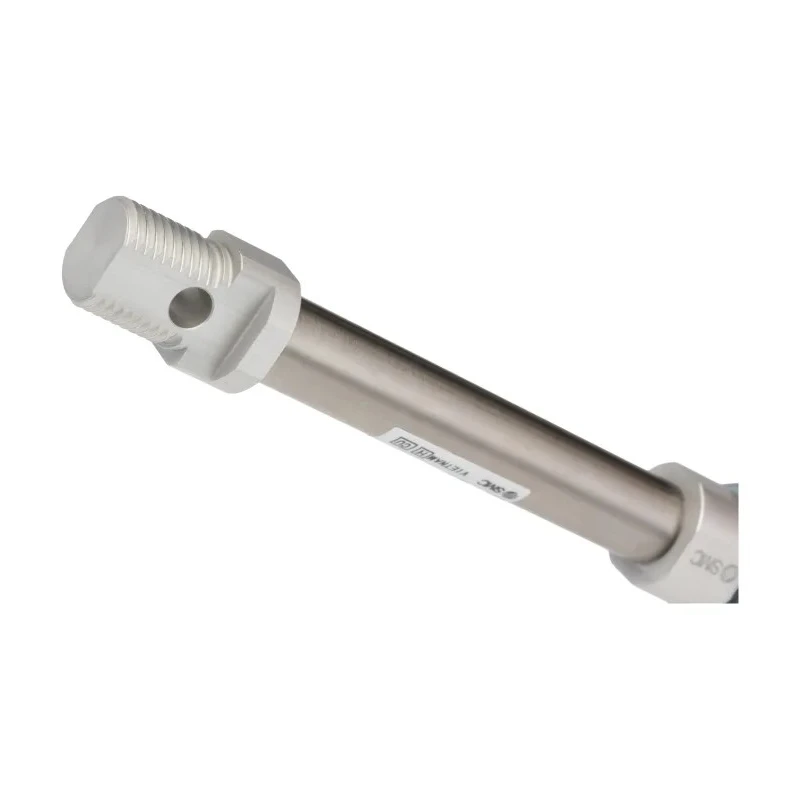

- Clevis mount type allows easy pivot installation.
- Rubber cushioning reduces end-of-stroke impact.
- Maximum piston speed of 1500 mm/s supports high-cycle industrial operations.
- Operates reliably up to +60°C for elevated temperature use.
- Single male piston rod with M6 metric thread for secure mechanical linkage.
- Conforms to ISO 6432 standard ensuring dimensional interchangeability.
Product Description
SMC CD85N12-50-B Pneumatic Piston Rod Cylinder from the CD85 Series features a 50 mm stroke length and is constructed with a durable aluminium alloy body. It is designed for double acting operation, providing controlled linear motion for various industrial automation tasks. The clevis mount facilitates straightforward pivot installation, making integration easy in tight spaces with its compact 155mm overall length.
This cylinder offers a maximum piston speed of 1500 mm/s, enabling high-cycle performance in manufacturing, material handling, and assembly line applications. Rubber bumper cushioning absorbs impact at the stroke ends, protecting the mechanism and enhancing operational lifespan. Rated for operation up to +60°C, it suits moderately elevated temperature environments.

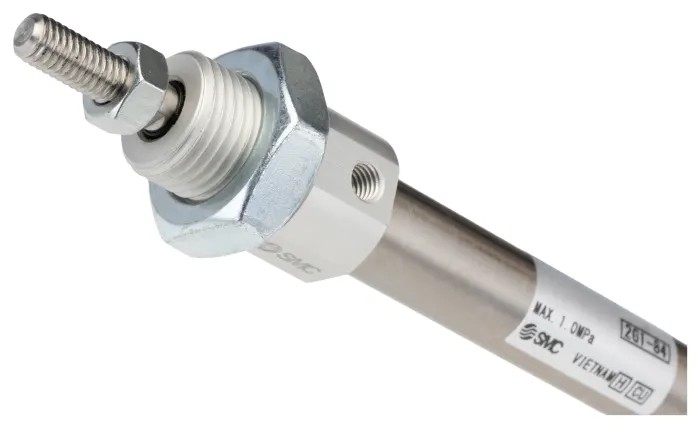

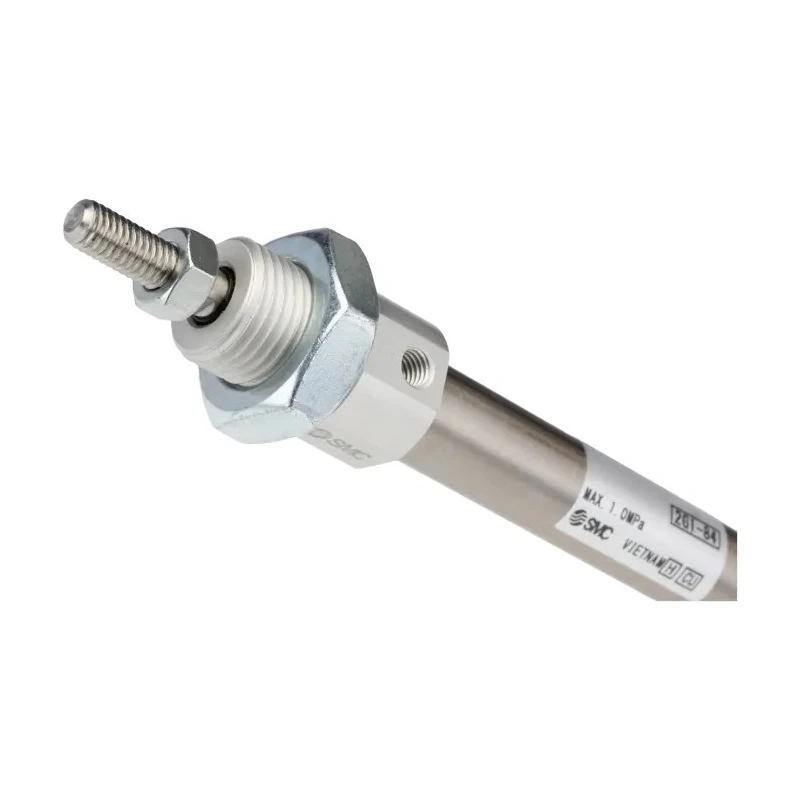

The piston rod has a single male M6 metric thread allowing secure attachment to linkages or clevis fittings. Compliance with ISO 6432 ensures compatibility with established pneumatic standards for cylinders, promoting ease of replacement and design interchange.
Typical industrial applications include pick-and-place stations, panel actuation within electrical enclosures, nozzle positioning in fluid dispensing systems, and gate control in material handling setups. Its lightweight aluminium construction reduces wear on supporting structures while maintaining robustness.
Compact, high-performance pneumatic actuator for precise linear motion. Double acting design with rubber cushioning for smooth operation. Clevis mounting provides flexible mechanical integration. Aluminium alloy material ensures corrosion resistance and durability.
ISO 6432 standard compliance for dimensional compatibility. Suitable for industrial automation, HVAC, manufacturing, and water treatment.
This Pneumatic Piston Rod Cylinder is an ideal choice for industrial automation requiring precise, repeatable strokes with robustness in moderately elevated temperature environments. Explore the full range of pneumatic cylinders and actuators at EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic piston rod cylinder is 50 mm.
It can operate reliably at temperatures up to +60°C.
This model features a clevis mount type, allowing for easy pivot installation.
The overall length of this pneumatic cylinder is 155 mm, making it suitable for space-constrained installations.
The maximum piston speed is 1500 mm/s, supporting high-cycle industrial operations.
It is equipped with rubber cushioning to reduce end-of-stroke impact.
The piston rod has a single male M6 metric thread for secure mechanical linkage.
This model conforms to the ISO 6432 standard, ensuring dimensional interchangeability.
The body of this cylinder is constructed from aluminium alloy, which provides corrosion resistance.
Typical applications include pick-and-place stations, panel actuation, nozzle positioning, and gate control in material handling setups.
This model operates as a double acting cylinder, providing controlled linear motion.
It features a single rod type, which is standard for many pneumatic applications.
