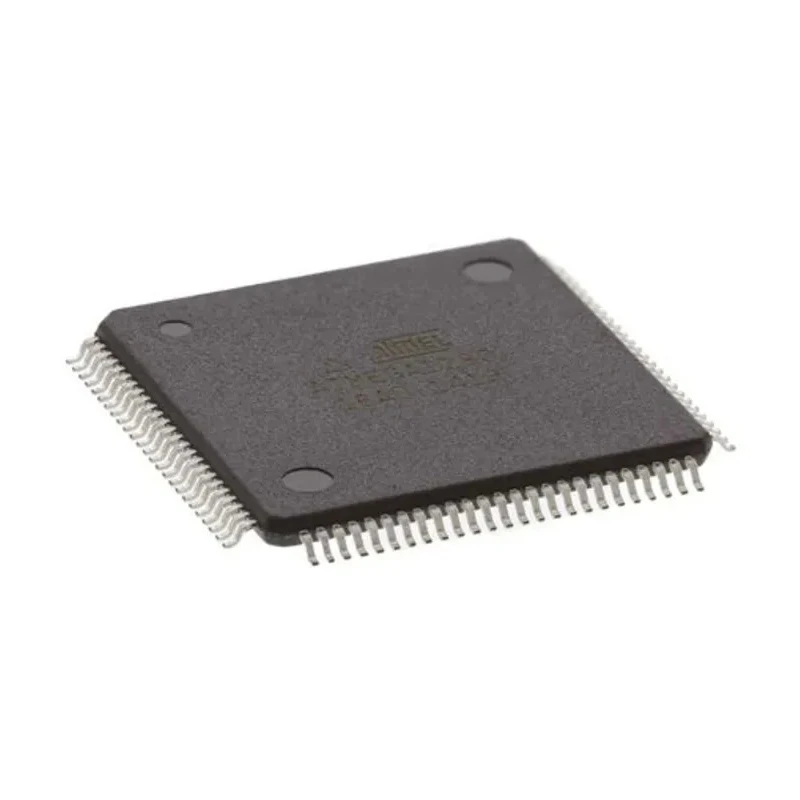

Microchip 8 bit AVR ATmega Microcontroller 128kB FLASH 16 MHz 100-Pin TQFP ATMEGA1280-16AU

Microchip ATMEGA1280-16AU is a high-performance 8 bit AVR ATmega microcontroller designed for various embedded system applications. It features a maximum 16 MHz clock frequency, supporting real-time and high-speed operation with an enhanced RISC architecture. The device contains 128kB of In-System Programmable Flash memory, enabling flexible firmware upgrades and robust program storage.

With an 8kB RAM and 8-bit data bus width, this microcontroller efficiently manages data-intensive processes. The 100-pin TQFP surface-mount package offers a compact footprint of 14.1mm x 14.1mm with a height of 1.05mm, ideal for space-constrained industrial or commercial products.

Operating voltage ranges from 2.7V to 5.5V with a wide temperature capability of -40°C to 85°C, making it suitable for harsh industrial and automotive environments. It supports SPI and USART interfaces for seamless communication and control in embedded systems.

The microcontroller is equipped with 86 programmable input/output pins, 16 channels of 10-bit ADCs for analog signal conversion, 2 timer modules for scheduling and time measurement, and a single analogue comparator for precision applications. The program memory uses FLASH technology guaranteeing data retention and endurance.

This Microcontroller is generally used in industrial automation, robotics, automotive electronics, consumer electronics, and embedded computing environments. Its robust features ensure reliable performance in complex system designs.

Enhanced RISC architecture for efficient processing performance. 128kB In-System Programmable Flash for flexible application development. 8kB RAM and 8-bit data bus width support diverse embedded applications. Operates between minimum supply voltage of 2.7V to maximum 5.5V.

Integrated SPI and USART interface types for versatile communication. Supports 86 programmable I/Os enhancing device control capabilities. Wide operating temperature range from -40°C to 85°C suitable for industrial environments.

Includes 16 channels of 10-bit ADCs and 2 timers for precise control tasks. Compact 14.1mm x 14.1mm x 1.05mm TQFP package provides space-efficient design. 1 analogue comparator included for signal comparison needs. Explore more electronic and semiconductor components at EnvMart for your next industrial or embedded project.
