SICK Threaded Barrel Capacitive Proximity Sensor CM 25 mm, M30 x 1.5 PNP 200mA 36 V dc CM30-25NPP-EC1
Specifications
| Country of Origin | Lithuania |
|---|---|
| Brand | SICK |
| Length | 74mm |
| Model | CM30-25NPP-EC1 |
| IP Rating | IP67, IP68, IP69K |
| Width | 30mm |
| Mount Type | Non-Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Series | CM |
| Maximum Operating Temperature | 85°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -30°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 50Hz |
| Standards/Approvals | CE, CSA, cULus, EcoLab |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 25mm |
Key Features
- Capacitive sensor detects conductive and non-conductive targets reliably.
- Threaded barrel design with M30 x 1.5 dimensions for secure mounting.
- PNP output with 200mA switching current suitable for direct actuator control.
- Supports operating voltage up to 36 V DC for industrial compatibility.
- High ingress protection ratings IP67, IP68, and IP69K allow harsh environment use.
- Operating temperature range from -30°C to +85°C supports extreme conditions.
- Equipped with M12 connector for straightforward integration into automation systems.
- Non-flush mount type with unshielded sensing for versatile detection tasks.
Product Description

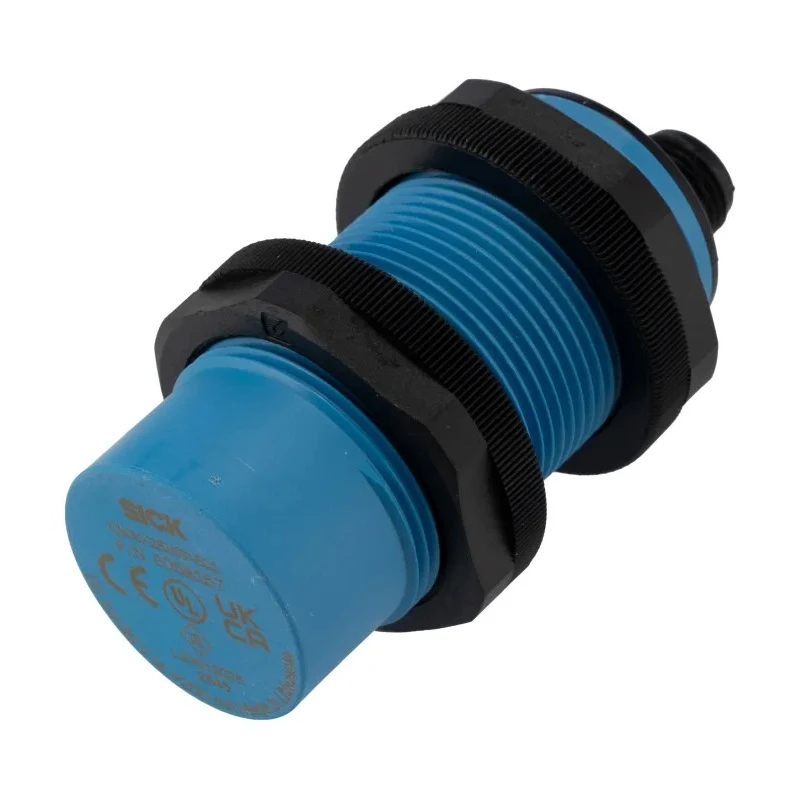

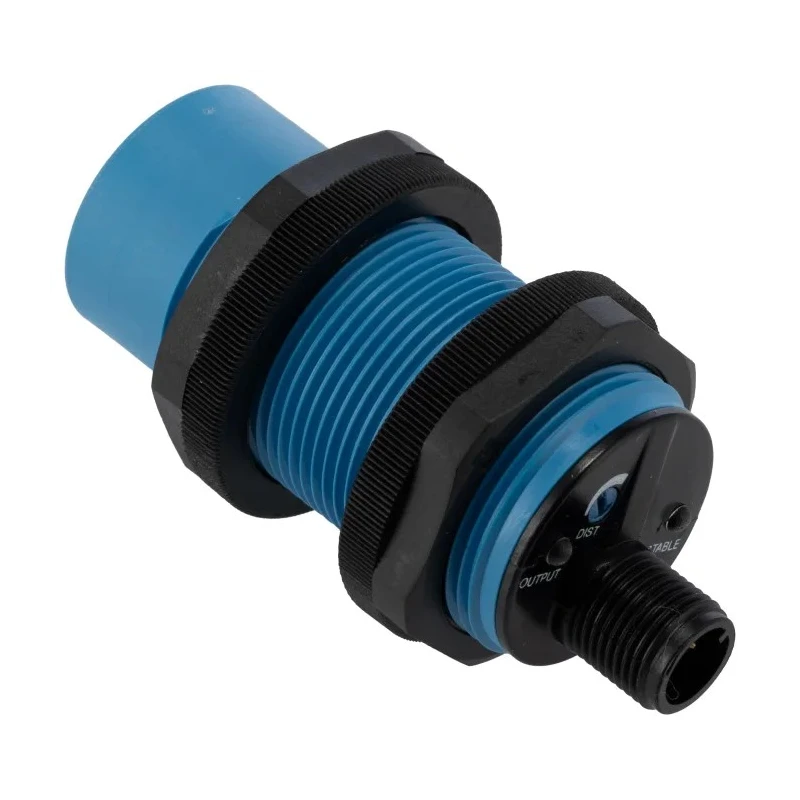

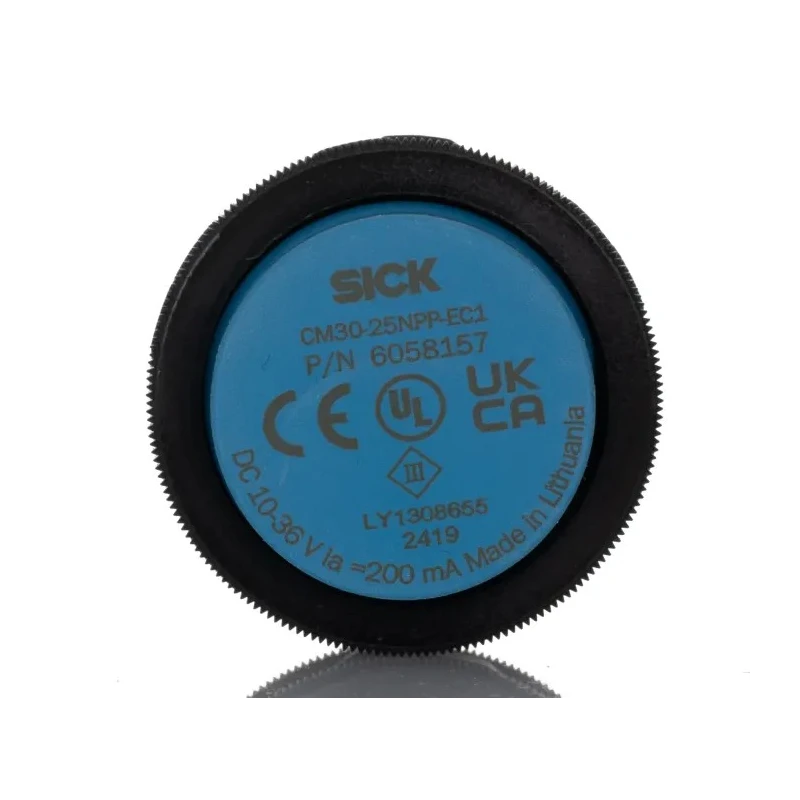

SICK CM30-25NPP-EC1 is a threaded barrel capacitive proximity sensor offering a 25 mm maximum detection range and an M30 x 1.5 thread size, designed for industrial automation and control applications. Operating at 36 V DC with a PNP output, it supports a continuous switching current of 200mA.
This sensor detects both conductive and non-conductive materials capacitively, suitable for presence detection, level monitoring of solids and liquids, and part detection in assembly processes. The sensor body is constructed from durable polybutylene terephthalate and rated IP67, IP68, and IP69K to endure harsh environments, including high moisture and washdown conditions.

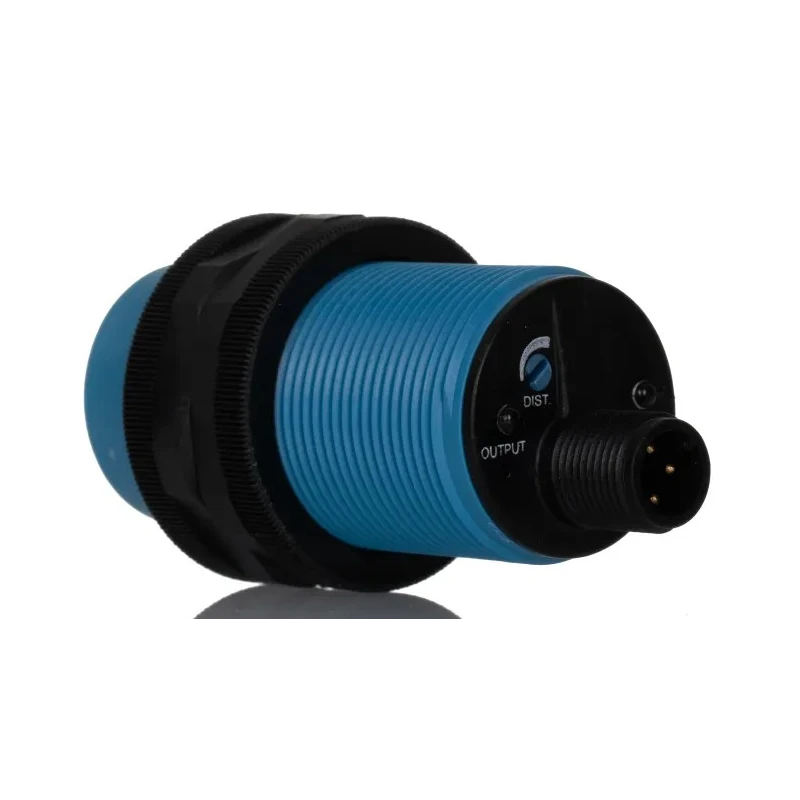

Equipped with an M12 terminal connector, the sensor ensures easy integration into control cabinets and industrial wiring. It features a non-flush, unshielded sensing design, allowing installation in confined spaces and providing precise object detection. The sensor withstands ambient temperatures up to +85°C and as low as -30°C, making it ideal for diverse industrial settings.

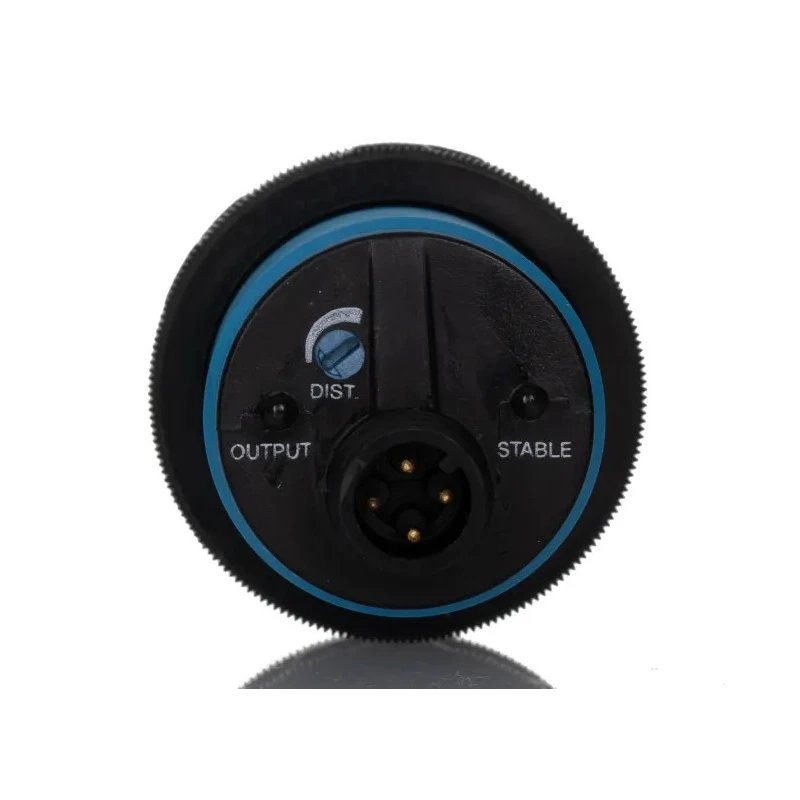

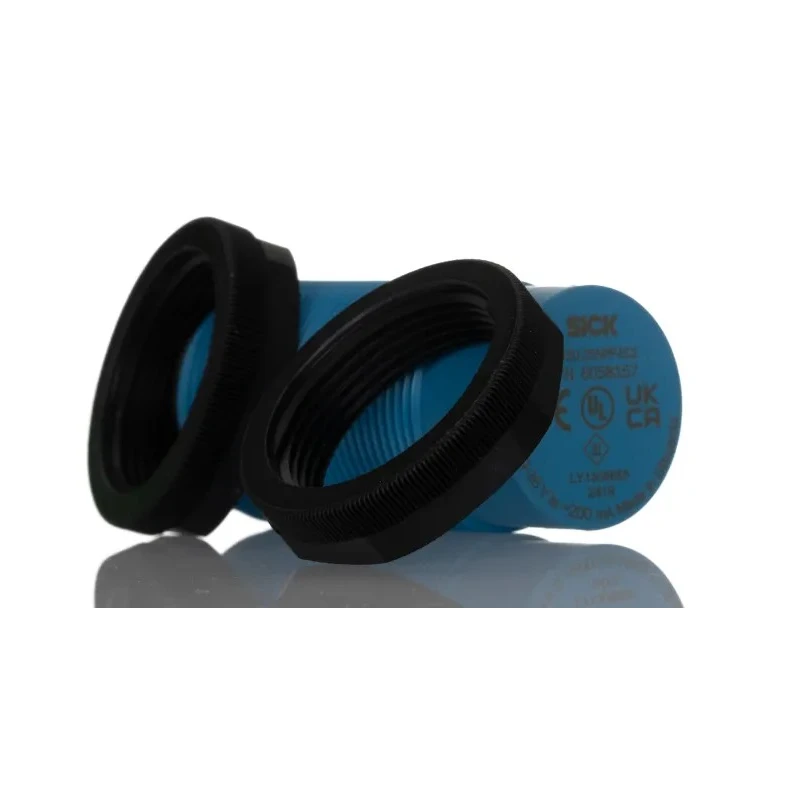

Installation is simplified with the included two PA12 plastic mounting nuts, securing the sensor in non-flush mounting configurations. Sensitivity adjustments can be made via an onboard potentiometer to accommodate materials of various dielectric constants. Robust protection features include reverse polarity, short-circuit, and power-up pulse protections, enhancing reliability during commissioning.
Capacitive sensor technology detects conductive and non-conductive targets. M30 x 1.5 threaded barrel with two PA12 mounting nuts. PNP output with 200mA switching current for actuator control. Wide voltage range operation from 10V to 36V DC.
High ingress protection ratings: IP67, IP68, and IP69K. Operating temperature range from -30°C to +85°C. Robust housing material: polybutylene terephthalate. M12 connector for easy wiring integration. Non-flush unshielded design for versatile industrial use.
This sensor is widely suitable for industrial, automation, manufacturing, and packaging applications, including conveyor presence detection, level monitoring in hoppers, and assembly line part control. Designed in Lithuania, it maintains compliance with CE, CSA, cULus, and EcoLab standards.
Explore EnvMart's extensive range of Capacitive Proximity Sensors to find compatible automation components and advanced industrial sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 25 mm.
It operates within a voltage range of 10V to 36V DC.
This model features a PNP output type.
The sensor has ingress protection ratings of IP67, IP68, and IP69K, making it suitable for harsh environments.
It can operate in temperatures ranging from -30°C to +85°C.
The sensor has a thread size of M30 x 1.5.
It can detect both conductive and non-conductive materials.
It features a non-flush mounting design and includes two PA12 plastic mounting nuts for installation.
The maximum switching current is 200mA.
It is equipped with an M12 connector for easy integration into automation systems.
It complies with CE, CSA, cULus, and EcoLab standards.
The housing is made from polybutylene terephthalate.
