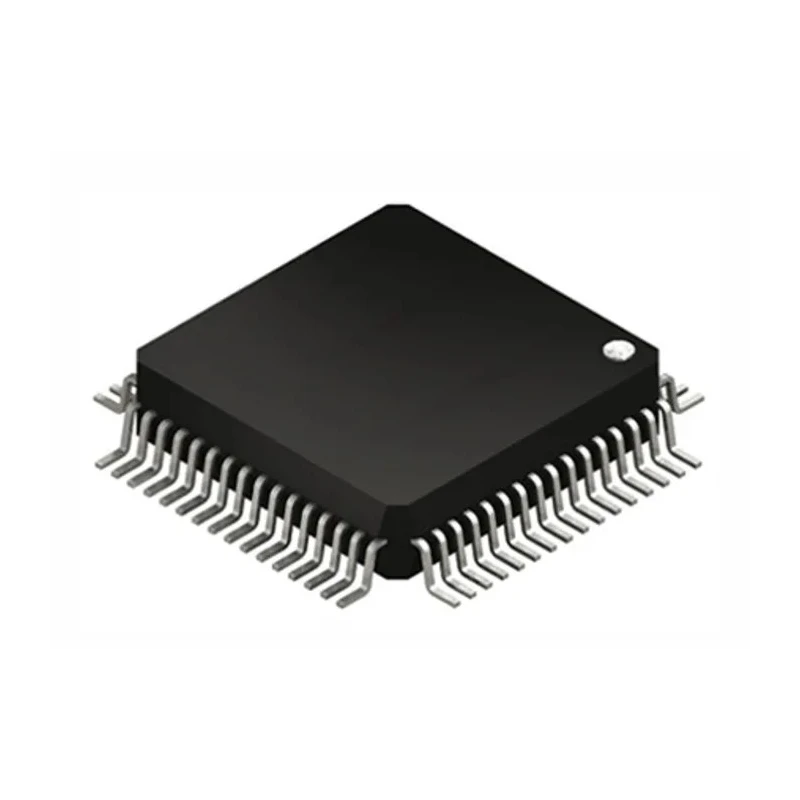

Microchip 16-bit PIC24HJ Microcontroller 40 MIPS 256kB FLASH 64-Pin TQFP PIC24HJ256GP206-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24HJ256GP206-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24HJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 256kB |
| Number of Timers | 9 |
| Instruction Set Architecture | RISC |
| ADCs | 18 x 10/12 Bit |
| Program Memory Type | FLASH |
Key Features
- Offers a maximum CPU speed of 40 MIPS supporting high efficiency.
- Features 256kB of program memory using FLASH technology.
- Equipped with 16kB of RAM for volatile data storage.
- Includes 9 timers and 18 ADC channels with 10/12 bit resolution.
- Designed for operation between -40°C and 85°C temperature range.
- Supports surface mount technology with a compact 64-pin TQFP package.
- Utilizes a 16-bit data bus with RISC instruction set architecture for optimized performance.
- Operates with a supply voltage range from 3V to a maximum of 3.6V.
Product Description
Microchip PIC24HJ256GP206-I/PT is a 16-bit PIC Microcontroller featuring a 64-pin TQFP package and built on RISC architecture. It operates at a maximum clock frequency of 40 MIPS, ensuring efficient processing performance for embedded applications.
This microcontroller provides 256kB of FLASH program memory and 16kB of RAM, enabling robust application development. It supports peripheral integration with modules such as 10/12-bit ADCs, SPI communication, voltage reference, timers, and UARTs, facilitating versatile project requirements.
The device has an operating voltage range from 3V to 3.6V and is designed to function reliably within a broad temperature range from -40°C to 85°C. Its surface mount 64-pin TQFP package offers a compact footprint, ideal for space-constrained designs.
Applications include industrial control systems, automotive electronics, consumer devices, and general embedded systems requiring a balance of processing power and peripheral options.
Maximum CPU speed of 40 MIPS for high performance. 256kB FLASH program memory and 16kB RAM. Surface mount 64-pin TQFP package for compactness. Wide operating temperature range from -40°C to 85°C. Supports multiple timers, ADC channels, and communication peripherals.
Operates with a supply voltage between 3V and 3.6V. Incorporates RISC instruction set architecture for efficiency. Provides a versatile platform for embedded system development.
This microcontroller is an excellent choice for designers and engineers needing reliable performance in various industrial and commercial applications. Discover more Microcontrollers on EnvMart to fit your exact project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum CPU speed of this microcontroller is 40 MIPS, which supports high processing efficiency for embedded applications.
It features 256kB of FLASH program memory, allowing for robust application development.
This microcontroller is equipped with 16kB of RAM for volatile data storage.
It is designed to operate within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
This model comes in a compact 64-pin TQFP package, which supports surface mount technology.
It includes 18 ADC channels with 10/12-bit resolution, facilitating versatile project requirements.
It operates with a supply voltage range from 3V to a maximum of 3.6V.
It supports various peripherals including 9 timers, ADCs, SPI communication, voltage reference, and UARTs.
The dimensions of this microcontroller are 1.05mm in height, 10mm in length, and 10mm in width.
It utilizes a RISC instruction set architecture, which optimizes performance for embedded applications.
This microcontroller is part of the PIC24HJ series.
The country of origin for this microcontroller is India.
