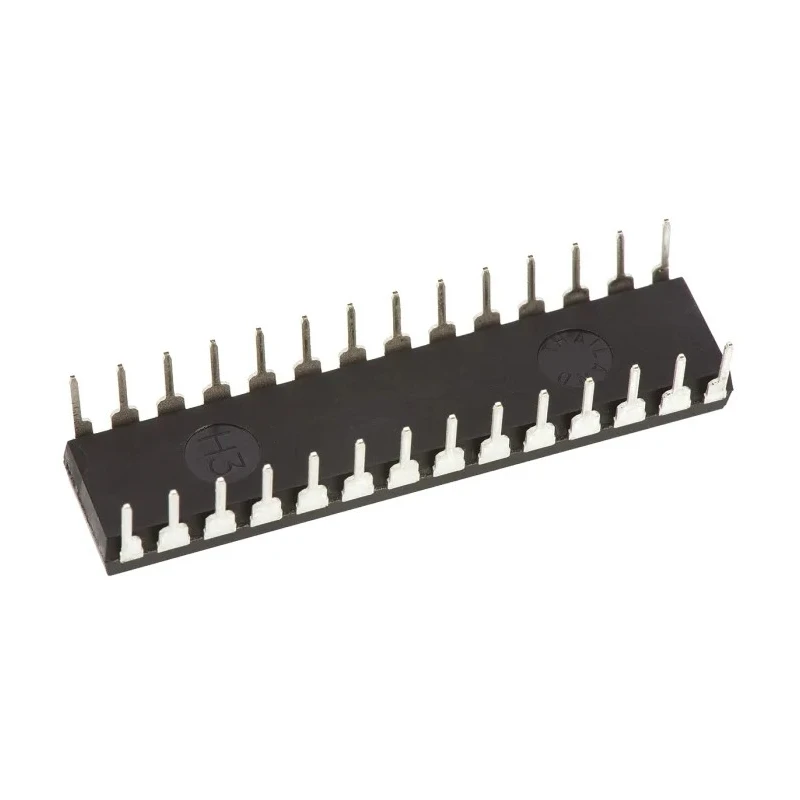

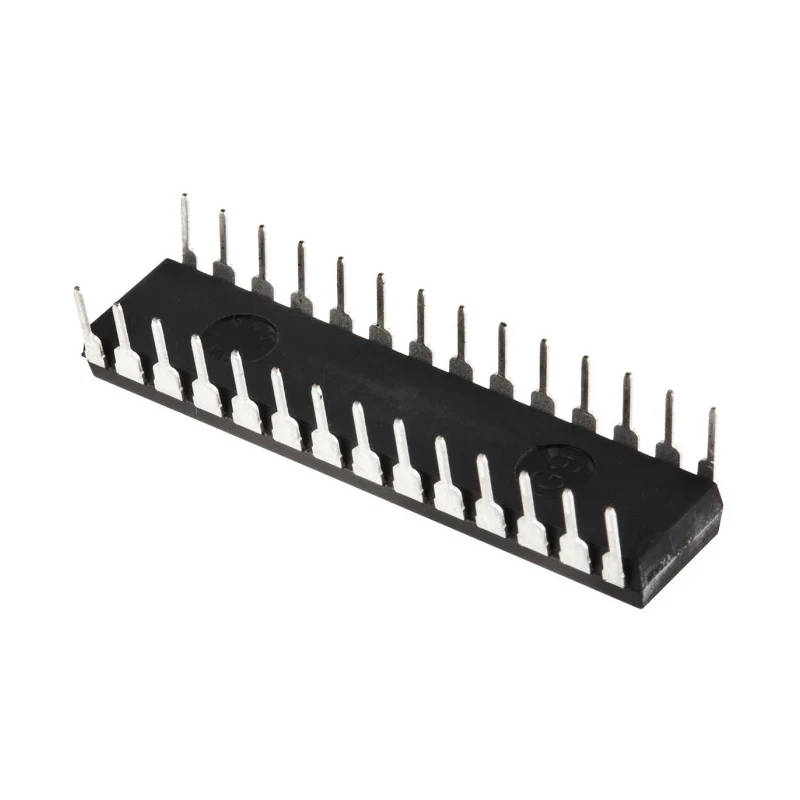

Microchip PIC18F2420-I/SP 8 bit PIC PIC18F Microcontroller 40 MHz 16 kB FLASH 28-Pin SPDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC18F2420-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 768bit |
| Interface Type | SCI |
| Pin Count | 28 |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 16, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 40 MHz for efficient performance.
- Features 16 kB of FLASH program memory for storing embedded code.
- Includes 768 bits of RAM and 25 programmable I/O pins.
- Designed with a 28-pin SPDIP through-hole package for easy mounting.
- Supports an operating voltage range from 2 V to 5.5 V for flexible power supply options.
- Equipped with 10 channels of 10-bit ADCs for precise analog to digital conversion.
- Includes automotive standard AEC-Q101 certification for tough environmental conditions.
- Incorporates multiple timers and low-power features for extended application usability.
Product Description
Microchip PIC18F2420-I/SP is a high-performance 8-bit PIC microcontroller designed for embedded systems requiring reliable operation at up to 40 MHz. This device features 16 kB of FLASH memory and 768-bit RAM, making it suitable for a variety of complex control applications.
The microcontroller comes in a 28-pin SPDIP through-hole package, offering 25 programmable I/O pins that allow flexible interfacing with other hardware. It supports a wide voltage range from 2 V minimum up to 5.5 V maximum, facilitating deployment in diverse power environments.
Designed based on Microchip's PIC18 architecture, the PIC18F2420-I/SP includes a 31-level hardware stack and supports 75 instructions, expandable to 83 with the extended instruction set. It features configurable internal oscillators and multiple timers, including one 8-bit and three 16-bit timers, to support complex timing operations.
The device also integrates 10 channels of 10-bit analog-to-digital converters (ADCs), two analog comparators, and various communication interfaces including SCI, SPI, and I2C via the Master Synchronous Serial Port (MSSP) module. Automotive standard AEC-Q101 certification ensures operational reliability under stringent automotive environmental conditions.
Max CPU Speed: 40 MHz with 75 instructions and extended instruction set. Program Memory: 16 kB FLASH with RAM size of 768 bits. Power Dissipation: Maximum of 800 mW supports efficient power management. Operating Temperature: -40°C to 85°C for broad industrial application range.
Package Dimensions: Length 35.56 mm, Width 7.49 mm, Height 3.81 mm.
This microcontroller is widely used in industrial automation, consumer electronics, automotive systems, and other embedded control applications requiring robust performance and reliable operation.
For further details and compatible design tools, consult the technical documentation and available software resources for the Microchip PIC18F2420-I/SP series. Explore more Microcontrollers and electronic components at EnvMart for comprehensive solutions to your embedded system design needs.
