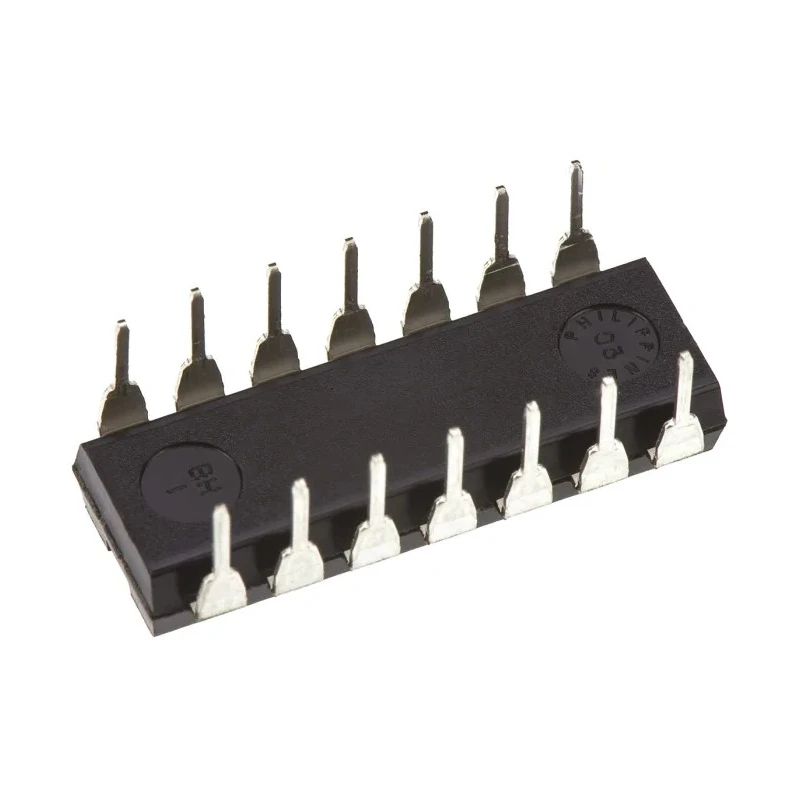

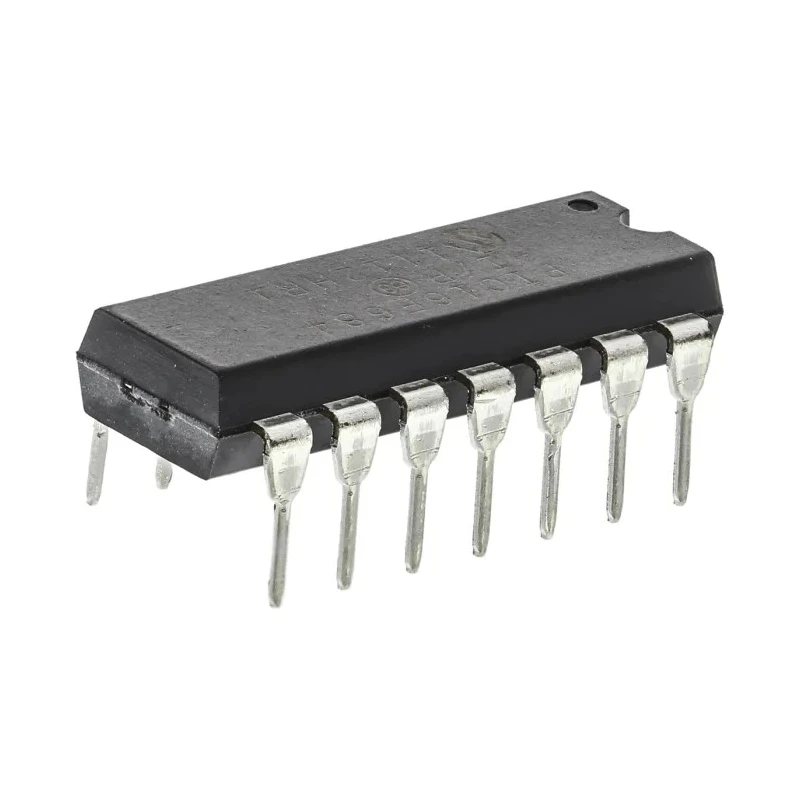

Microchip PIC16F684-I/P 8-Bit PIC Microcontroller 20 MHz 256B FLASH 14-Pin PDIP

Microchip PIC16F684-I/P is a high-performance 8-bit microcontroller designed with Microchip's Mid-range architecture, delivering reliable and efficient processing for a wide range of electronic applications. Operating at a maximum clock frequency of 20 MHz, this device offers a balanced combination of speed and power efficiency.

The microcontroller features 256 bytes of FLASH program memory and 128 bytes of RAM, suitable for moderate code and data storage requirements. It integrates 8 channels of 10-bit Analog to Digital Converters (ADC), enabling precise conversion of analog signals to digital format for various sensing applications.

This 14-pin PDIP device supports through-hole mounting, making it convenient for prototyping and integration into existing electronic assemblies. It includes three timers - two 8-bit and one 16-bit - allowing flexible timing and event counting capabilities.

The PIC16F684-I/P is robust with an operating temperature range from -40°C to 85°C and a voltage supply that ranges from 2V to 5.5V. The device also accommodates a maximum power dissipation of 800mW ensuring adequate thermal handling under typical conditions.

Additional features include two analog comparators, 26 programmable I/O pins, and an 8-level deep hardware stack, enhancing real-time processing and control. Its In-Circuit Serial Programming (ICSP) capabilities simplify firmware updates and development cycles.

This microcontroller suits applications in industrial control systems, consumer electronics, embedded systems, and educational projects requiring efficient 8-bit processing power. Utilizes Microchip's Mid-range PIC architecture with 35 instructions and an 8-level hardware stack.

Features 8-bit data bus width supporting moderate processing tasks efficiently. Includes 8 channels of 10-bit ADC for precise analog signal conversion. Equipped with multiple timers: two 8-bit and one 16-bit timer. Supports In-Circuit Serial Programming (ICSP) for easy reprogramming and development.

Operates over a wide temperature range from -40°C to 85°C, suitable for industrial environments. Power supply voltage ranges between 2V minimum and 5.5V maximum with 800mW maximum power dissipation. Offers 26 programmable I/O pins and two analog comparators enhancing device control possibilities.

Compact dimensions with length 19.69mm, width 7.11mm, and height 4.95mm. Designed as a new, through-hole mounted microcontroller for embedded system applications. Discover a reliable 8-bit Microcontroller solution with Microchip PIC16F684-I/P, ideal for a broad range of embedded and industrial applications available at EnvMart.
