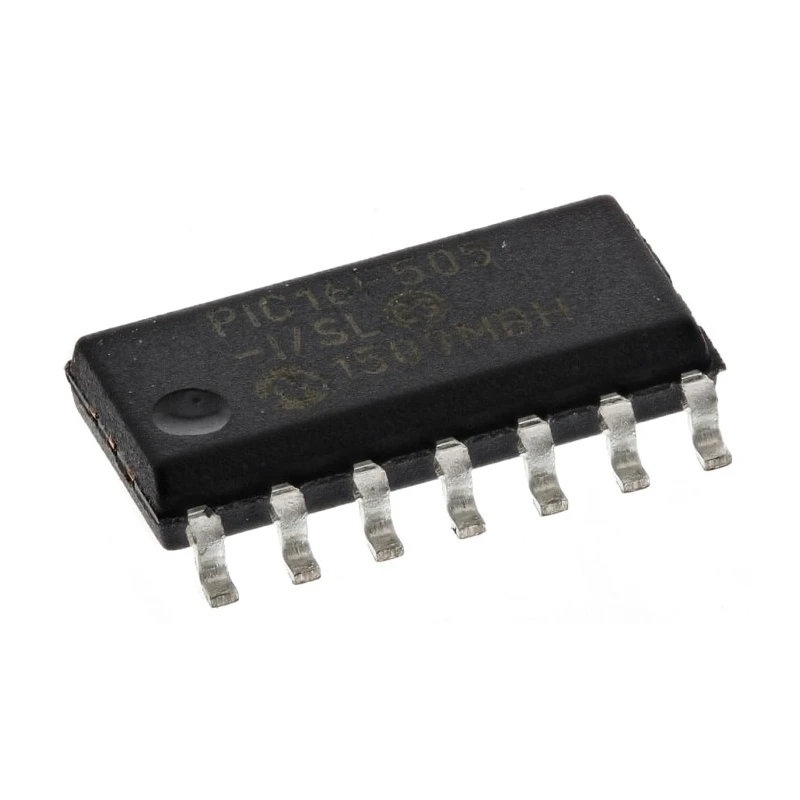

Microchip 8 bit PIC PIC16F Microcontroller 20 MHz 1.5kB FLASH 14-Pin SOIC PIC16F505-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F505-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 72bit |
| Interface Type | SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Microchip, 8bit PIC, PIC16C Microcontroller, 4MHz, 1K EPROM, 14-Pin SOICBrand | Microchip |
Key Features
- High-performance 8-bit PIC16F microcontroller architecture.
- 20 MHz maximum CPU speed for efficient processing.
- 1.5 kB of programmable FLASH memory for code storage.
- 14-pin SOIC surface-mount package suitable for compact designs.
- Contains 22 programmable I/O pins for versatile interfacing.
- Supports SPI interface to connect with peripheral devices.
- Operating voltage range from 2 V to 5.5 V for flexible power supply.
- Includes power-on reset, brown-out reset, and watchdog timer features.
Product Description
Microchip PIC16F505-I/SL is an 8-bit RISC architecture microcontroller designed for reliable embedded applications. It operates at a maximum clock frequency of 20 MHz and includes 1.5 kB of FLASH program memory for robust code storage and execution. Packaged in a compact 14-pin SOIC surface-mount form factor, it facilitates efficient PCB layout and integration.
This microcontroller features 22 programmable input/output pins, enabling versatile interfacing in complex embedded systems. The device supports SPI communication, providing seamless connectivity to peripherals and other components.
Operating voltage ranges from 2 V minimum up to 5.5 V maximum, supporting various power supply scenarios. The controller is equipped with essential reliability features such as power-on reset (POR), brown-out reset (BOR), watchdog timer (WDT), and device reset timer (DRT) to maintain system stability and error recovery.
The device also includes two analogue comparators and a single 8-bit timer, suitable for timing and signal comparison tasks in control applications. It operates reliably within an industrial temperature range from -40 °C to +85 °C.
High-performance 8-bit PIC16F microcontroller architecture. 20 MHz maximum CPU speed for efficient processing. 1.5 kB of programmable FLASH memory for code storage. 14-pin SOIC surface-mount package suitable for compact designs.
Contains 22 programmable I/O pins for versatile interfacing. Supports SPI interface to connect with peripheral devices. Operating voltage range from 2 V to 5.5 V for flexible power supply. Includes power-on reset, brown-out reset, and watchdog timer features.
Operating temperature range from -40°C to 85°C for industrial environments. Single 8-bit timer and two analogue comparators included.
This microcontroller is ideal for embedded industrial, consumer electronics, and control applications requiring fast processing and compact form factors. Its robustness across temperature and voltage ranges suits it for demanding environments.
Explore the Microcontroller category at EnvMart for a wide range of embedded control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates within a voltage range of 2 V to 5.5 V.
This model features 1.5 kB of programmable FLASH memory for code storage.
There are 22 programmable I/O pins available for versatile interfacing.
It is packaged in a 14-pin SOIC surface-mount format.
The operating temperature range is from -40 °C to 85 °C.
Yes, it supports SPI communication to connect with peripheral devices.
The height of this model is 1.5 mm.
The maximum power dissipation for this microcontroller is 800 mW.
This microcontroller includes two analogue comparators.
It uses a RISC instruction set architecture.
The length is 8.65 mm and the width is 3.9 mm.
