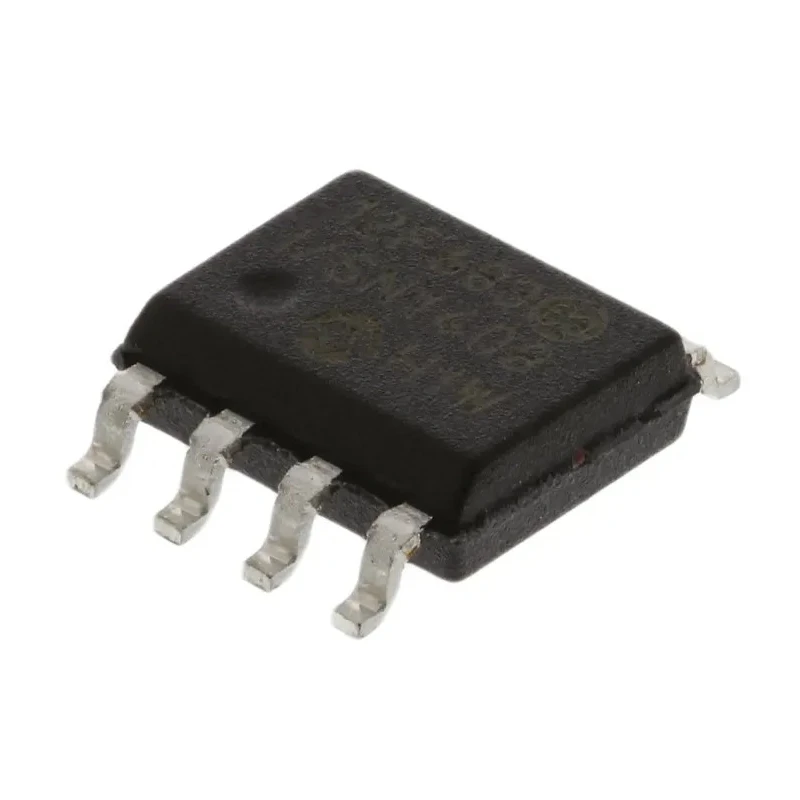

Microchip 8 bit PIC Microcontroller PIC12F683-I/SN, 20 MHz Clock, 256B FLASH Memory, 8-Pin SOIC Package

Microchip PIC12F683-I/SN is an advanced 8 bit PIC microcontroller designed for embedded electronic applications requiring reliable and efficient processing. This device operates at a maximum clock speed of 20 MHz and incorporates a 256-byte FLASH program memory and 128-bit RAM to support various control functions.

It comes in a compact 8-Pin SOIC surface-mount package, which makes it ideal for applications where PCB space is limited. The microcontroller features a RISC instruction set architecture with 35 instructions and an 8-level deep hardware stack for efficient processing.

Equipped with four 10-bit analogue-to-digital converter channels, it provides precise measurement capabilities for sensors and other input devices. It also features a capture, compare, PWM module (CCP) and supports in-circuit serial programming (ICSP), facilitating easy programming and debugging.

The microcontroller can operate on a voltage range of 2 V to 5.5 V and has a maximum power dissipation of 1 watt, making it suitable for low-power embedded solutions. Its wide operating temperature range from -40°C to 85°C ensures robustness for industrial and automotive environments.

With up to 28 programmable input/output pins and three timers, the PIC12F683-I/SN can handle complex control tasks including signal timing, event counting, and PWM generation. This microcontroller is widely used in industrial, consumer electronics, automotive, and embedded control systems where size, power, and performance are critical.

This microcontroller features a RISC architecture instruction set with 35 instructions. It includes 128 bits of RAM and 256 bits of EEPROM for program and data storage. Equipped with four 10-bit ADC channels for analogue-to-digital conversion.

The device supports SPI interface for serial communication needs. It has three timers and up to 28 programmable I/O pins for versatile applications. Operates within supply voltages from 2 V to 5.5 V with a maximum power dissipation of 1 watt.

Designed to operate reliably in temperatures ranging from -40°C to 85°C. Compact dimensions of 4.9 mm length, 3.9 mm width, and 1.5 mm height, suitable for tight PCB layouts. Ideal for embedded system projects requiring a compact, low-power, and feature-rich microcontroller.
