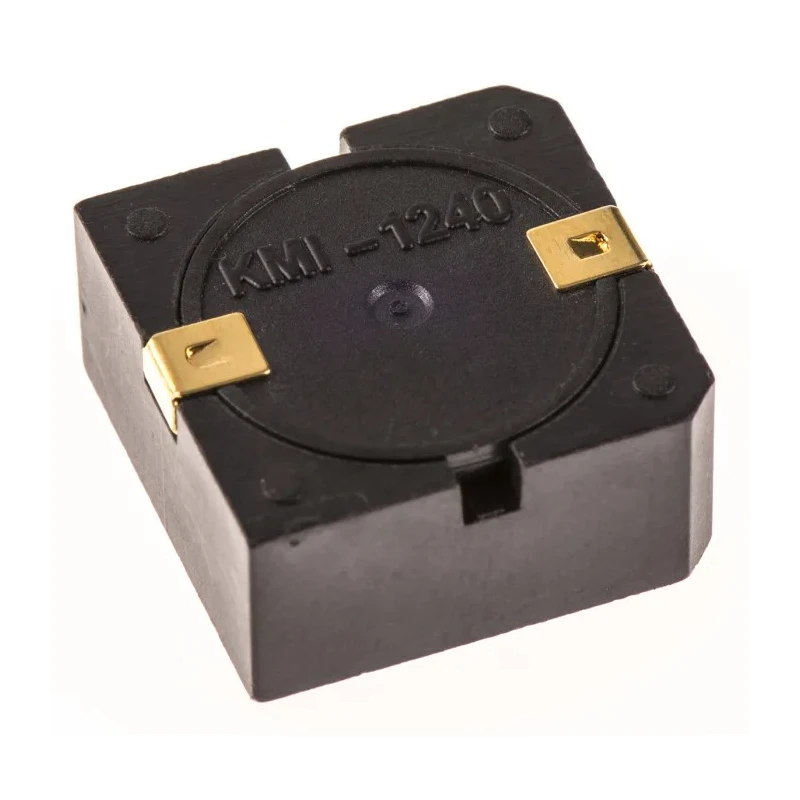

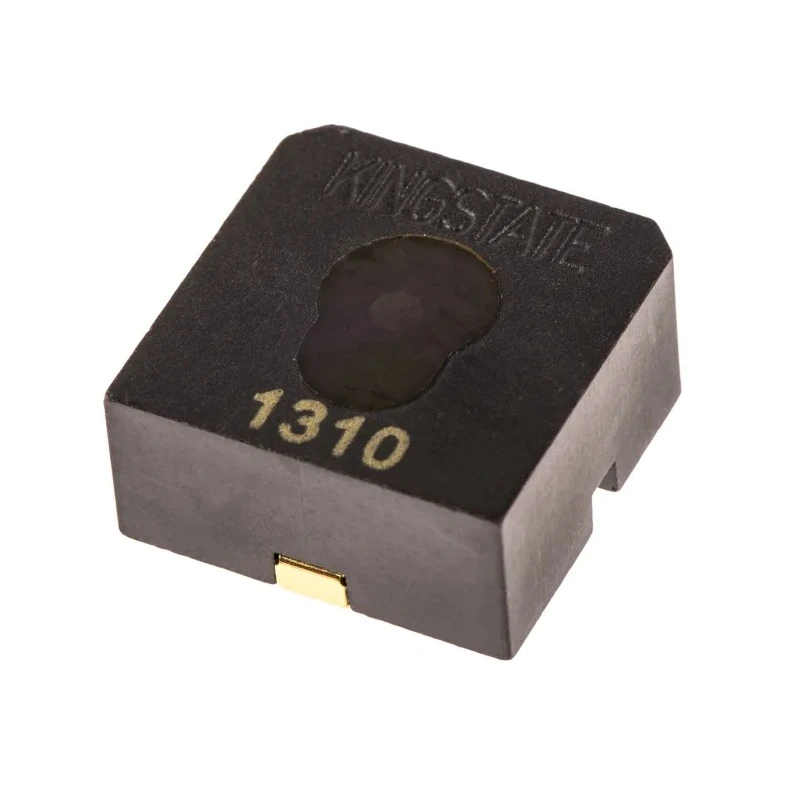

RS Pro 83 dB Surface Mount Continuous Internal Drive Piezo Buzzer 7.8 mm Height 16.9 mm Depth 3 - 20 V DC 6221326P

RS Pro 6221326P is a high-quality piezo buzzer designed for surface mounting with an internal drive that produces a continuous tone. This buzzer operates efficiently within a voltage range of 3 V DC minimum up to 20 V DC maximum, drawing only 8 mA of current. It generates a loud 83 dB sound, making it ideal for use in domestic and commercial warning systems such as door alarms and kitchen appliances.

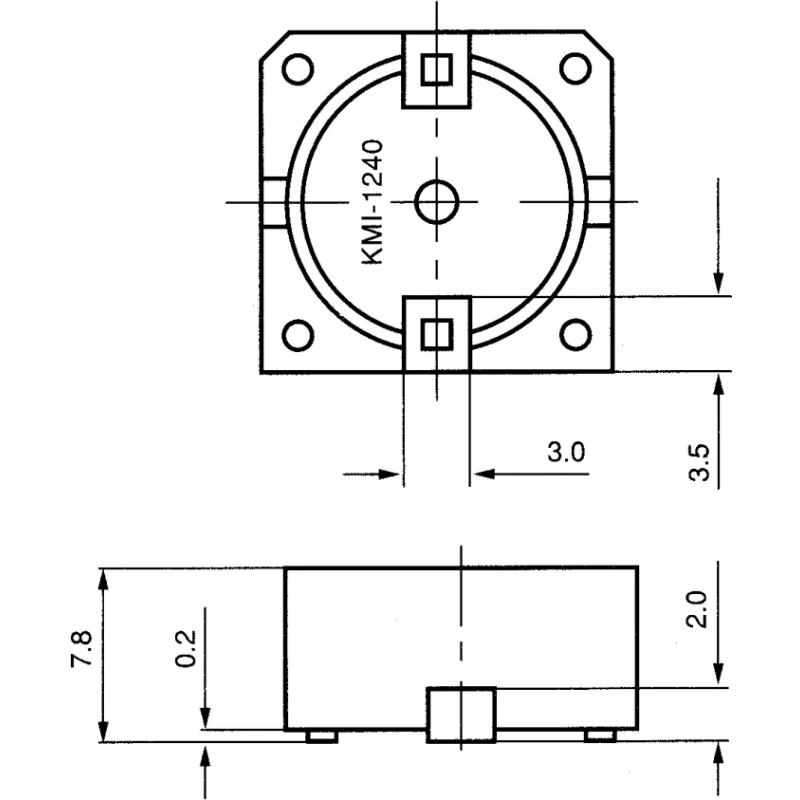

The component has a compact form factor with a height of 7.8 mm and a depth of 16.9 mm, weighing just 2.6 grams. Its wide operating temperature range from -30°C to 70°C allows it to function reliably in a variety of industrial and consumer application environments. The buzzer operates at frequencies between 3500 Hz and 4.5 kHz, producing a crisp and clear continuous tone without shrillness, ensuring effective alert signals over a distance.

The RS Pro 6221326P complies with RoHS directives and has been handled under ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection. Its surface-mount technology facilitates easy installation on printed circuit boards, making it well suited for integration into compact electronic designs.

These attributes make the buzzer particularly suited for industrial, laboratory, manufacturing, and commercial applications where reliable, loud, and clear audible warnings are required. The product is manufactured in Taiwan, Province of China, assuring quality control and precision engineering.

Produces an 83 dB sound level suitable for audible alerts. Compact height of 7.8 mm and depth of 16.9 mm for flexible device integration. Wide operating temperature range from -30°C to 70°C ensures durability in diverse environments.

Draws a low supply current of approximately 8 mA enhancing energy efficiency. Operates within a frequency range of 3500 Hz to 4.5 kHz producing a clear continuous tone. Surface-mount design allows for easy and secure installation on circuit boards.

Lightweight at 2.6 g facilitating minimal impact on device weight. Compliance with RoHS standards and electrostatic discharge handling ensures reliability and safety. Explore more RS Pro components in the piezo buzzer category on EnvMart for high-quality, reliable, and efficient audio signaling devices.
