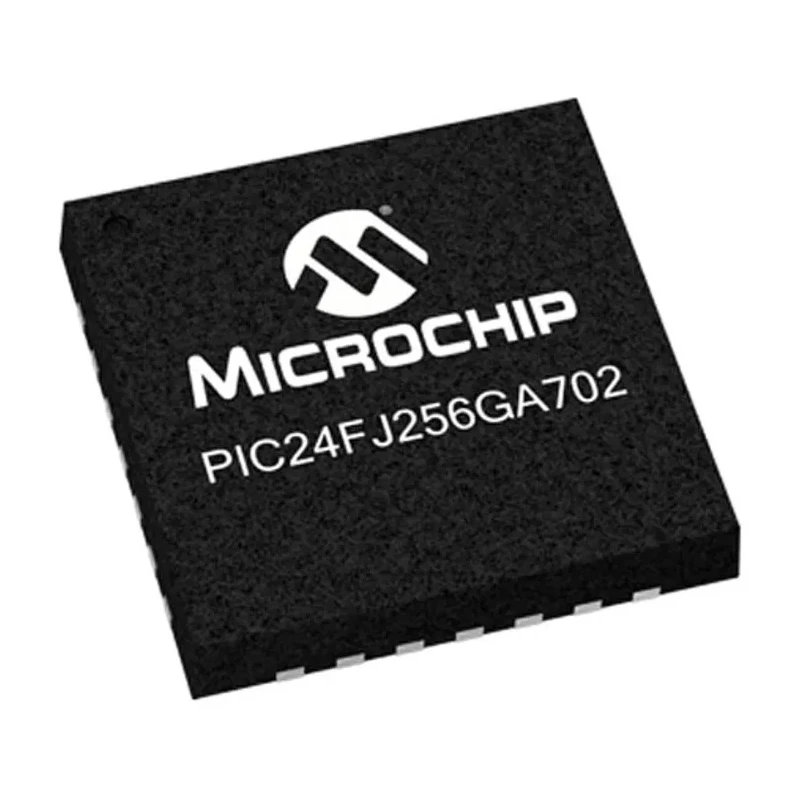

Microchip 32 bit PIC24 Microcontroller, 32 MHz Clock, 256kB FLASH Memory, 28-Pin QFN PIC24FJ256GA702-I/ML

Microchip PIC24FJ256GA702-I/ML 32 bit PIC24 Microcontroller operates at 32 MHz and features 256kB FLASH memory in a compact 28-Pin QFN surface-mount package. This device is built on a PIC architecture with a 32-bit data bus and provides 16kB of RAM memory suitable for complex embedded system applications.

Its operational voltage ranges from 2V minimum up to 3.6V maximum, making it compatible with various power supply designs. This microcontroller integrates extensive communication capabilities, including 6 UARTs, 4 SPI ports, and 3 I2C buses, offering flexibility for communication with multiple peripherals and sensors.

The device supports industrial temperature operations from -40 to 85 degrees Celsius and is certified to automotive AEC-Q100 standards, making it reliable for harsh and automotive-grade environments. Its features include a hardware cryptographic module enabling secure data processing and embedded security functionality, ideal for applications requiring data protection.

Equipped with 10 ADC channels supporting 10/12-bit resolution, 3 analogue comparators, and a 10-bit DAC with high update rates, this microcontroller supports precise analog signal processing and control. The hardware divider accelerates arithmetic operations for computationally intensive tasks.

Its compact dimensions of 6 by 6 mm and just under 1 mm thickness allow for space-efficient PCB designs in embedded systems, industrial controls, or automotive units. This microcontroller is best suited for applications requiring high performance, energy efficiency through eXtreme Low Power technology, and robust security features.

Operates at 32 MHz maximum clock frequency for efficient processing. Large 256kB dual partition FLASH memory supporting live updates without system downtime. Multiple communication interfaces (UART, SPI, I2C) for flexible connectivity.

Integrated advanced peripherals include cryptographic hardware engine. Certified automotive-grade with AEC-Q100 compliance. Low power consumption with eXtreme Low Power technology support. 10/12-bit ADC with up to 24 channels and high conversion speed.

Compact 28-Pin QFN package suitable for surface mounting. Extended operating temperature and voltage range for industrial applications.

For designers and engineers working in industrial automation, embedded security systems, automotive electronics, and IoT devices, the Microchip PIC24FJ256GA702-I/ML delivers performance, reliability, and security in a compact footprint. Explore more Microcontrollers and related components on EnvMart to find the optimal supplies for your project needs.
