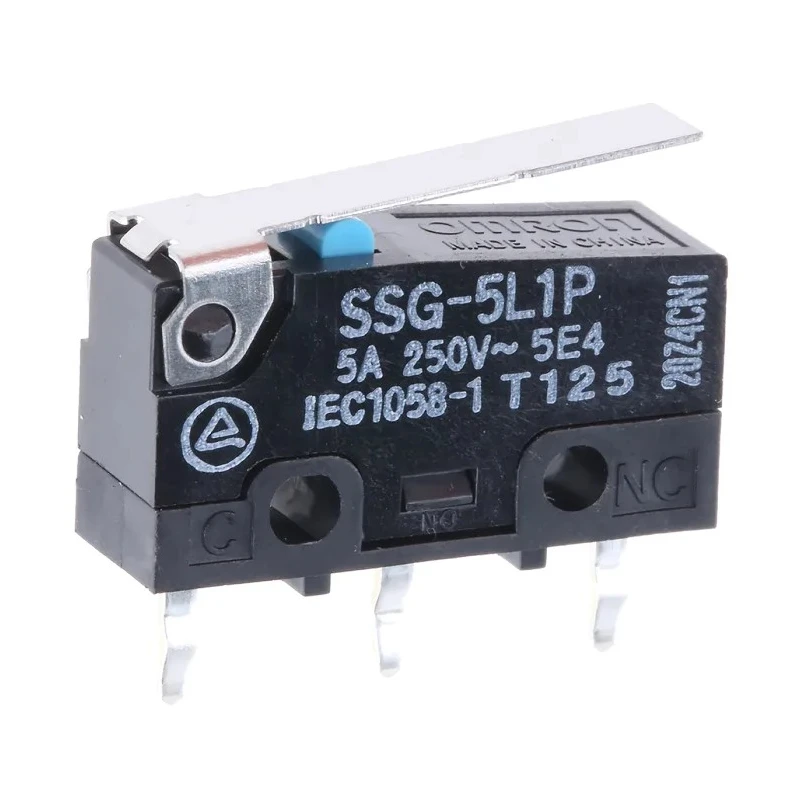

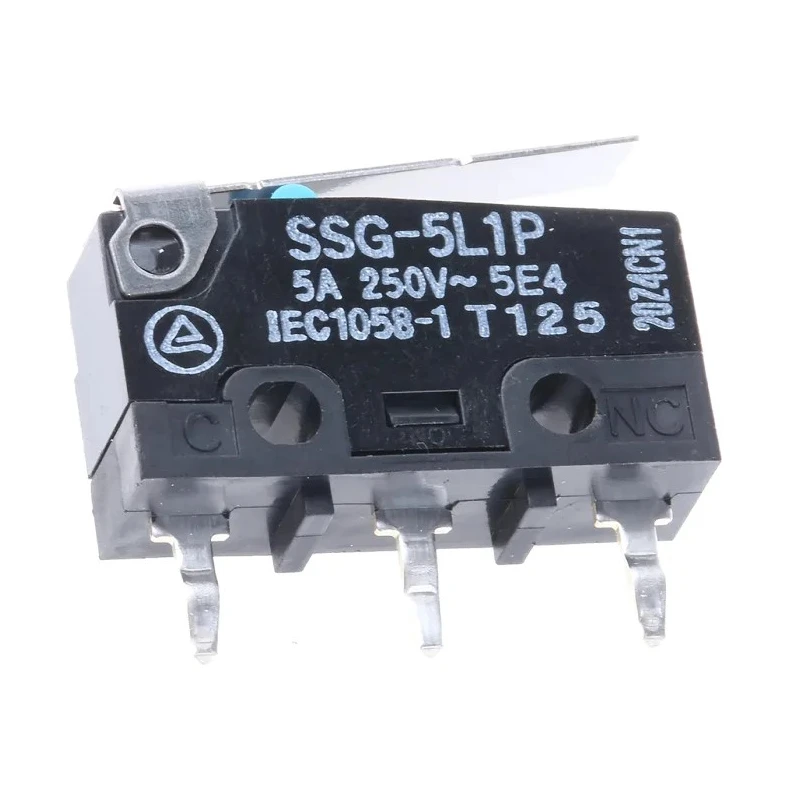

Omron Subminiature Micro Switch with Hinge Lever, PCB Terminal, 5A, 250 V AC, SPDT, IP40 SSG-5L1P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | SSG-5L1P |
| IP Rating | IP40 |
| Series | SSG |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 5A |
| Operating Force | 0.6N |
| Mechanical Life | 10000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
| Dimensions (body) | H9.9mm, W19.8mm, D6.4mm |
Key Features
- The subminiature design enables compact assembly in tight spaces.
- Hinge lever actuator provides precise mechanical operation.
- Features Single Pole Double Throw (SPDT) contact configuration.
- Rated IP40 for protection against solid objects.
- Operating force is 0.6 N, suitable for sensitive actuation.
- Operates reliably between -25°C to 125°C temperature range.
- Robust construction supports 10 million mechanical operations.
- PCB terminals resist flux corrosion for longevity in soldering processes.
Product Description
Omron SSG-5L1P subminiature micro switch with hinge lever and PCB terminal is engineered for industrial, automation, and electronic applications requiring compact, high-performance switching components.
This switch supports an electrical rating of 5 amps at 250 volts AC and offers a Single Pole Double Throw (SPDT) contact configuration, providing versatility in circuit control.
The hinge lever actuator ensures precise operation with an operating force of only 0.6 Newton, making it suitable for sensitive control mechanisms. This subminiature switch conforms to an IP40 ingress protection rating, safeguarding against solid particle intrusion.
Designed for durability, the switch withstands a broad operating temperature range from -25°C to 125°C and endures up to 10 million mechanical cycles, ensuring long service life in demanding environments. The PCB terminal design offers resistance to flux during soldering, enhancing reliability in printed circuit board mountings.
The subminiature design enables compact assembly in tight spaces. Hinge lever actuator provides precise mechanical operation. Features Single Pole Double Throw (SPDT) contact configuration. Rated IP40 for protection against solid objects.
Operating force is 0.6 N, suitable for sensitive actuation. Operates reliably between -25°C to 125°C temperature range. Robust construction supports 10 million mechanical operations. PCB terminals resist flux corrosion for longevity in soldering processes.
Compliant with RoHS environmental standards. Compact body dimensions: Height 9.9 mm, Width 19.8 mm, Depth 6.4 mm.
This switch is ideal for applications in industrial automation, instrumentation, HVAC systems, consumer electronics, and other sectors requiring dependable low-voltage control elements.
Omron is renowned for quality and reliability in electromechanical components, and the SSG-5L1P model upholds this standard with precision engineering and compliance certifications including UL, CSA, VDE, TUV, BEAB, and IMQ.
Explore more Micro Switches and related automation components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an electrical rating of 5 amps at 250 volts AC.
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
It operates reliably between -25°C and 125°C, making it suitable for a variety of environments.
The operating force is 0.6 Newton, which is suitable for sensitive actuation applications.
This micro switch has an IP40 rating, providing protection against solid objects.
It is designed to support up to 10 million mechanical operations, ensuring a long service life.
It features PCB terminals that resist flux corrosion, enhancing reliability during soldering processes.
The dimensions are 9.9 mm in height, 19.8 mm in width, and 6.4 mm in depth.
Yes, it is compliant with RoHS environmental standards.
It uses a hinge lever actuator for precise mechanical operation.
This micro switch is suitable for applications in industrial automation, instrumentation, HVAC systems, and consumer electronics.
It complies with several certifications including UL, CSA, VDE, TUV, BEAB, and IMQ.
