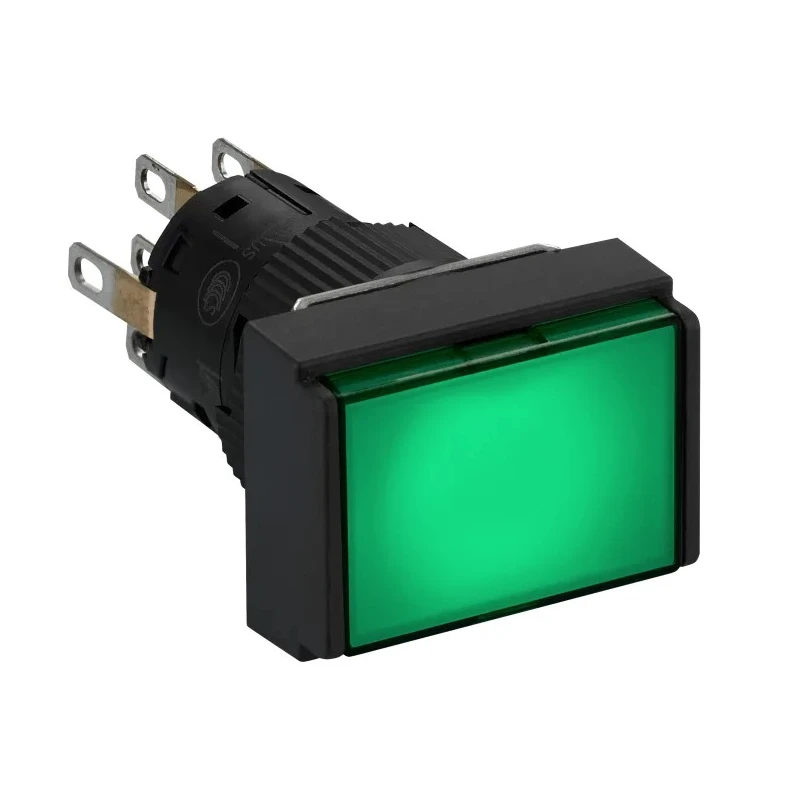

Schneider Electric Harmony XB6E Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout XB6EDW3B2P

Schneider Electric XB6EDW3B2P Harmony XB6E Series Illuminated Push Button Switch is designed for durable and reliable panel mounting in industrial and automation environments. Featuring a spring return operation and a rectangular green actuator, this push button switch is engineered for precise control and visibility.

The switch supports a 16 mm panel cutout size and has a double pole double throw (DPDT) contact configuration suitable for complex circuit requirements. It incorporates gold-flashed silver contacts for enhanced electrical performance and longevity, alongside a bright green LED illumination for clear user indication.

Rated at IP65, this switch can withstand dust ingress and water jets, making it ideal for strenuous industrial applications and adverse environments. Its sturdy construction supports operation in temperature ranges from -25°C to 55°C, providing stable performance under fluctuating temperatures.

Wiring flexibility is ensured through quick connect and solder tag terminal types, accommodating various installation needs. The switch carries international standards approvals including IEC 60947-1 and UL 508, guaranteeing compliance with industrial safety and quality norms.

Typical applications include control panels in industrial machinery, signalling systems in automation, and lighting control in commercial settings. Its spring return actuator allows ease of use in multi-user control scenarios, maintaining operational efficiency.

The push button features an integrated green LED for clear illumination. Spring return mechanism ensures reliable momentary switch action. Panel mounting with a 16 mm diameter cutout suits various control panels. Double pole double throw (DPDT) contact configuration supports versatile switching.

Rated IP65 for dust and water jet protection, suitable for harsh environments. Quick connect and solder tag terminal types provide flexible wiring options. Operates reliably within a temperature range of -25°C to 55°C. Gold-flashed silver contacts enhance conductivity and increase durability.

Rectangular actuator style makes the button easy to identify and operate. Ideal for industrial automation, signalling, and lighting control applications. Explore EnvMart’s range of Push Button Switches and components for comprehensive industrial automation solutions.
