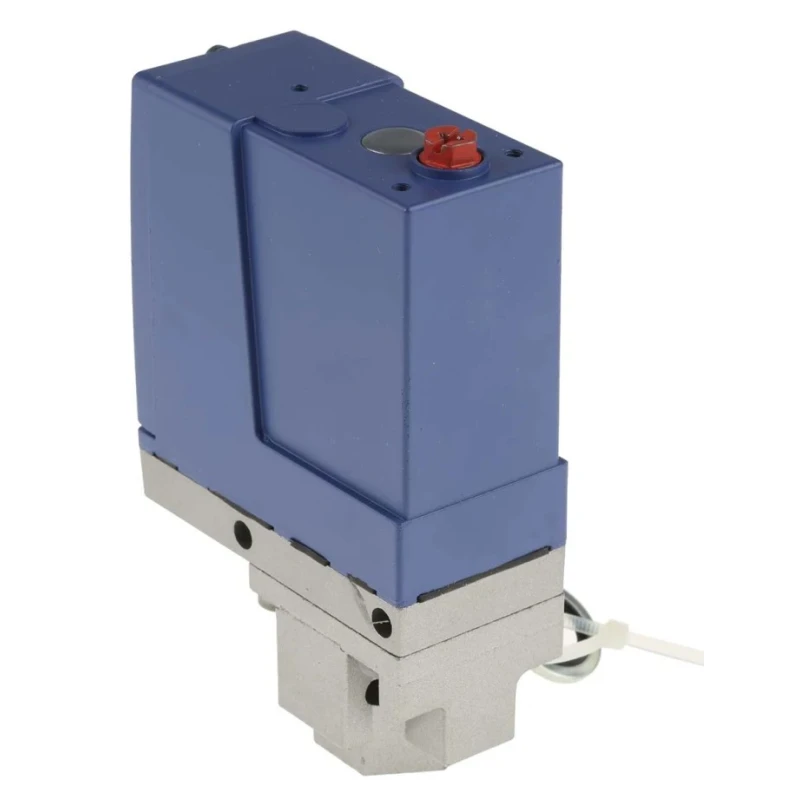

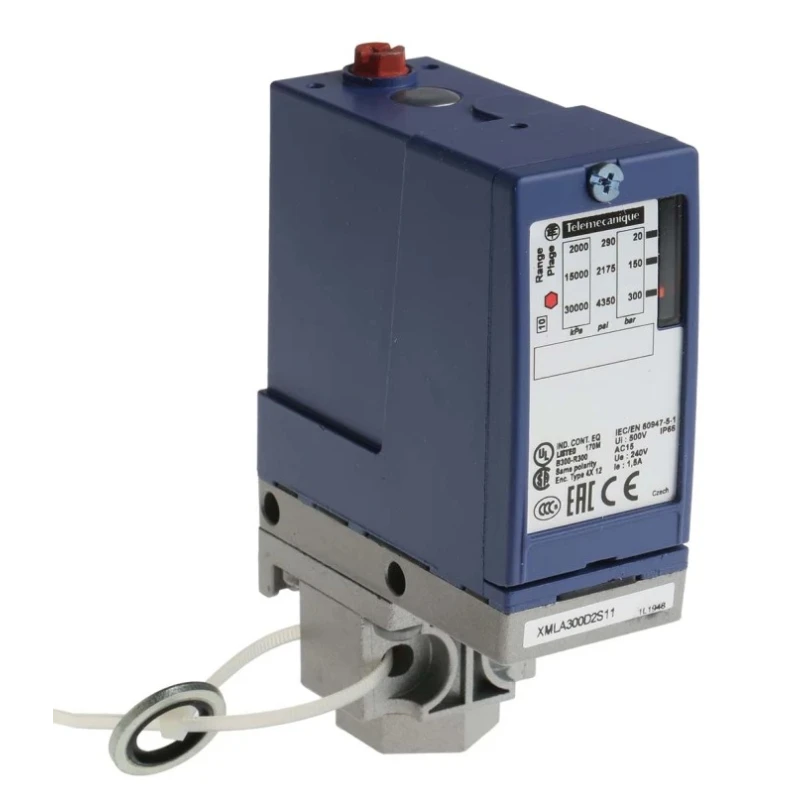

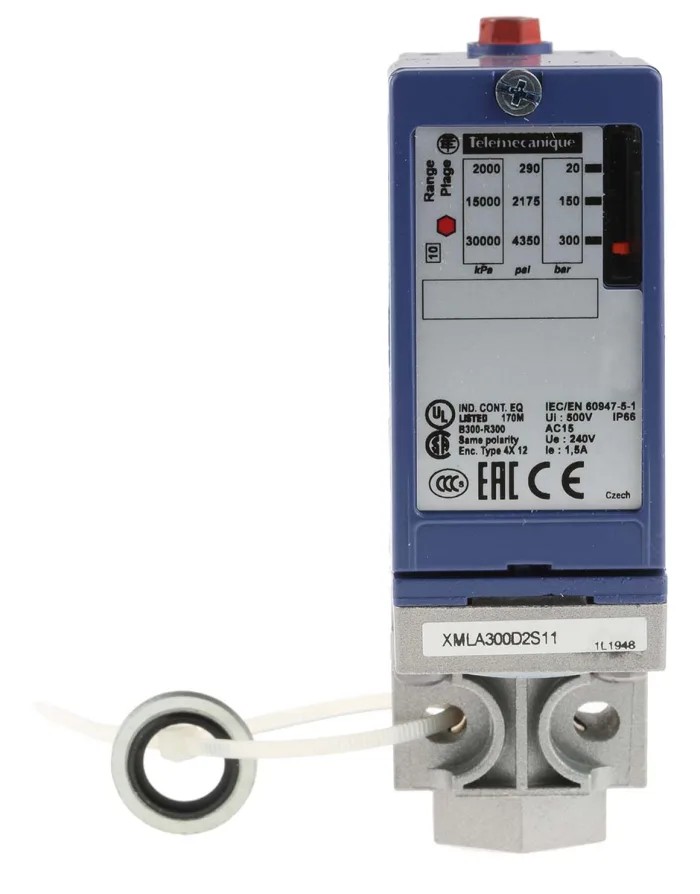

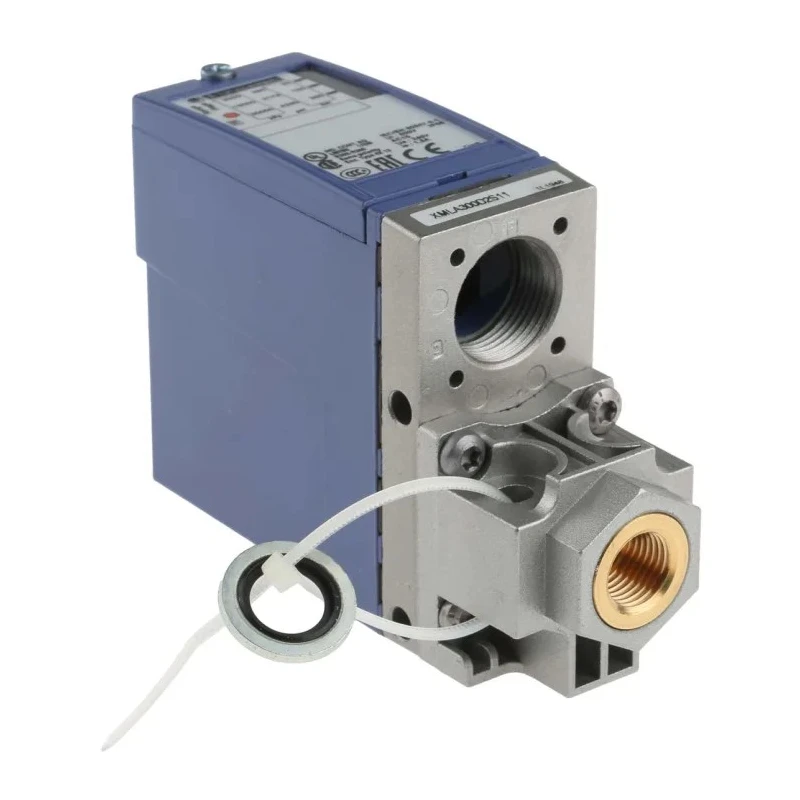

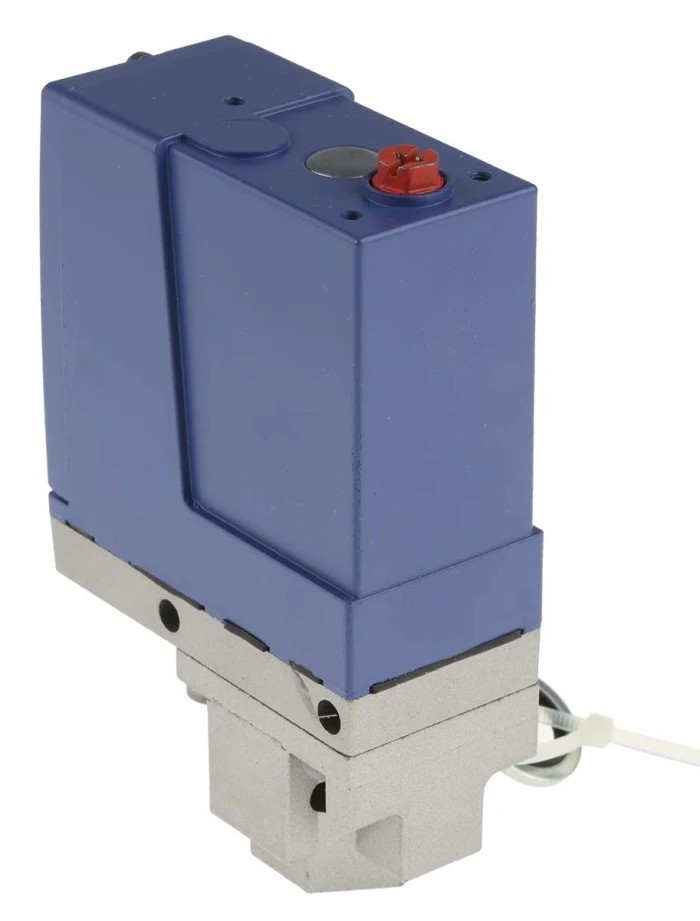

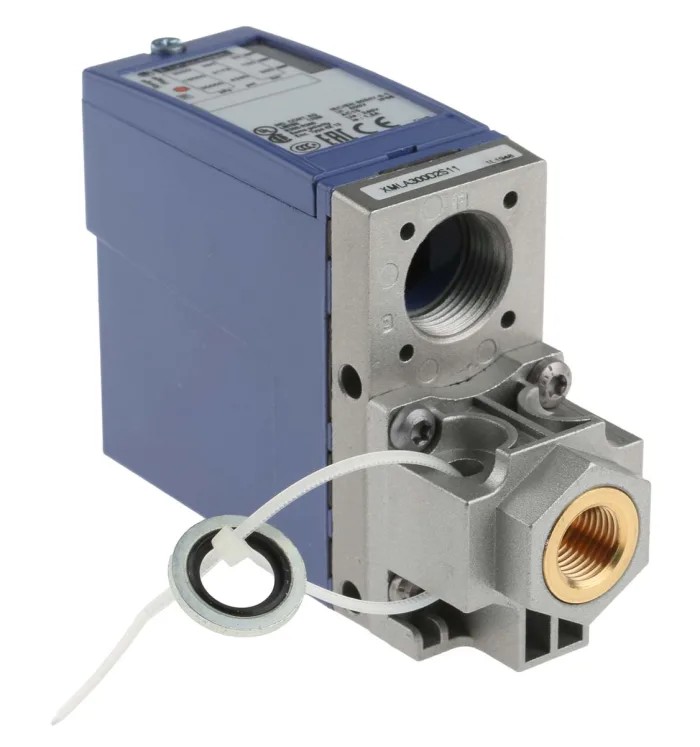

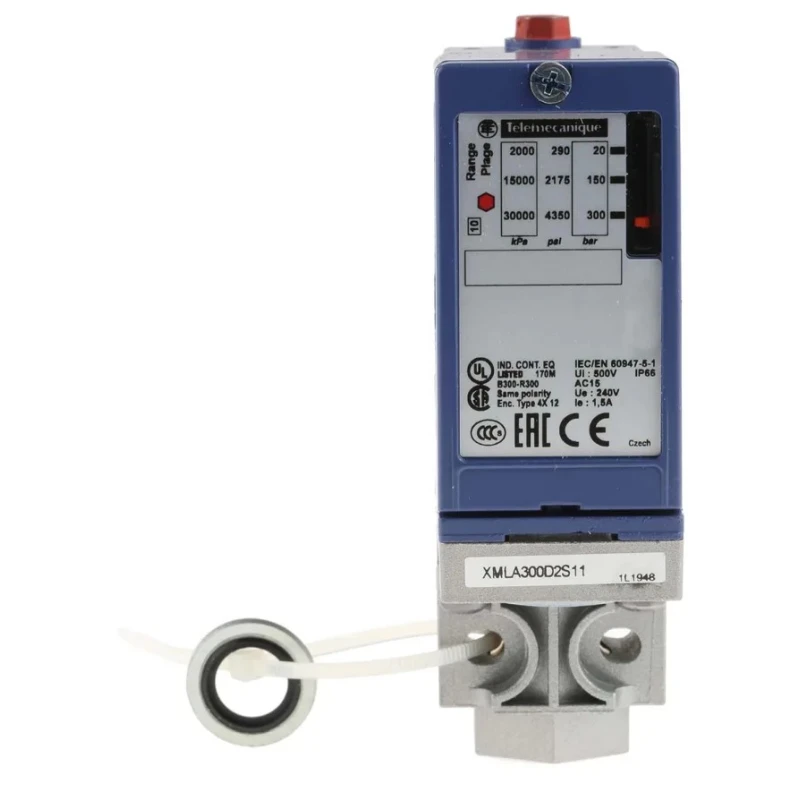

Telemecanique Sensors XMLB Series Differential Pressure Sensor, Relay Output, 22 bar Min, 300 bar Max, 2% XMLB300D2S11

Free Delivery in India | Lowest Global Shipping Charges

Telemecanique Sensors XMLB Series Differential Pressure Sensor, Relay Output, 22 bar Min, 300 bar Max, 2% XMLB300D2S11

Name: Telemecanique Sensors XMLB Series Differential Pressure Sensor, Relay Output, 22 bar Min, 300 bar Max, 2% XMLB300D2S11
Brand: Telemecanique Sensors
SKU: 198137
Price: 321.85 USD
Availability: InStock



Category Pressure Sensor Brand Telemecanique Sensors Condition New

Specifications

Country of Origin	Czech Republic
Accuracy	2 %
Brand	Telemecanique Sensors
Temperature range	- 25 to +70 °C
Model	XMLB300D2S11
IP Rating	IP66
Housing Material	Zinc Alloy
Output type	Relay
Series	XMLB
Maximum Operating Temperature	70°C
Enclosure Rating	IP65 with plug-in connector, IP66 with terminal connections
Minimum Operating Temperature	-25°C
Terminal type	Screw Clamp
Maximum Pressure Measurement	300bar
Minimum Pressure Measurement	22bar
Maximum Supply Voltage	500V
Minimum Supply Voltage	120V
Pressure Reading Type	Differential
Media Measured	Hydraulic Fluid
Operating rate	up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection	1/4"" NPT
Conduit connection	1/2"" NPT

Key Features

Measures differential pressure from 22 bar minimum to 300 bar maximum.
Features relay output for reliable switching function.
Provides 2% accuracy ensuring precise pressure detection.
Robust zinc alloy housing rated IP66 for harsh environments.
Suitable for hydraulic fluid media and compatible with pressures up to 300 bar.
Operates within a temperature range of -25°C to 70°C.
Equipped with screw clamp terminals for secure connections.
Standard compliance with EN/IEC 60947-5-1, CE, UL 508, CSA C22-2 No 14.

Product Description

Telemecanique Sensors XMLB300D2S11 is a differential pressure sensor with relay output, designed for accurate pressure monitoring in industrial applications involving hydraulic fluid media. It ensures reliable switching through a relay contact, suitable for control circuits.

The sensor supports pressure measurement from a minimum of 22 bar up to a maximum of 300 bar, with a precision accuracy of 2%. Its zinc alloy housing promises durability and protection with an IP66 rating, making it fit for harsh and demanding environments.

Operating temperature ranges from -25°C to 70°C, making it suitable for various thermal conditions. The sensor terminals use screw clamps for firm electrical connections, facilitating stable and maintenance-friendly setups.

The XMLB300D2S11 sensor complies with international standards including EN/IEC 60947-5-1, CE marking, UL 508, and CSA C22-2 No 14, affirming its safety and reliability in industrial contexts.

This sensor features adjustable differential and allows external pressure setting visibility for ease of calibration. Media connection is secured via a 1/4" NPT port, with conduit connectivity through 1/2" NPT, supporting straightforward integration.

Measures differential pressure from 22 to 300 bar. Relay output enables effective switching functionality. Robust zinc alloy housing with IP66 ingress protection. Standards-compliant for industrial safety and quality. Operating range supports temperatures from -25°C to 70°C.

Screw clamp terminals provide secure electrical connections. Media and conduit connections are 1/4" and 1/2" NPT respectively. Manufactured in Czech Republic ensuring premium build quality.

This product is ideal for industrial automation, hydraulic systems, water treatment plants, and other commercial and manufacturing applications requiring precise pressure control and monitoring. Explore more pressure sensor solutions in the Electronics & Electricals > Sensors > Pressure Sensor category at EnvMart.
