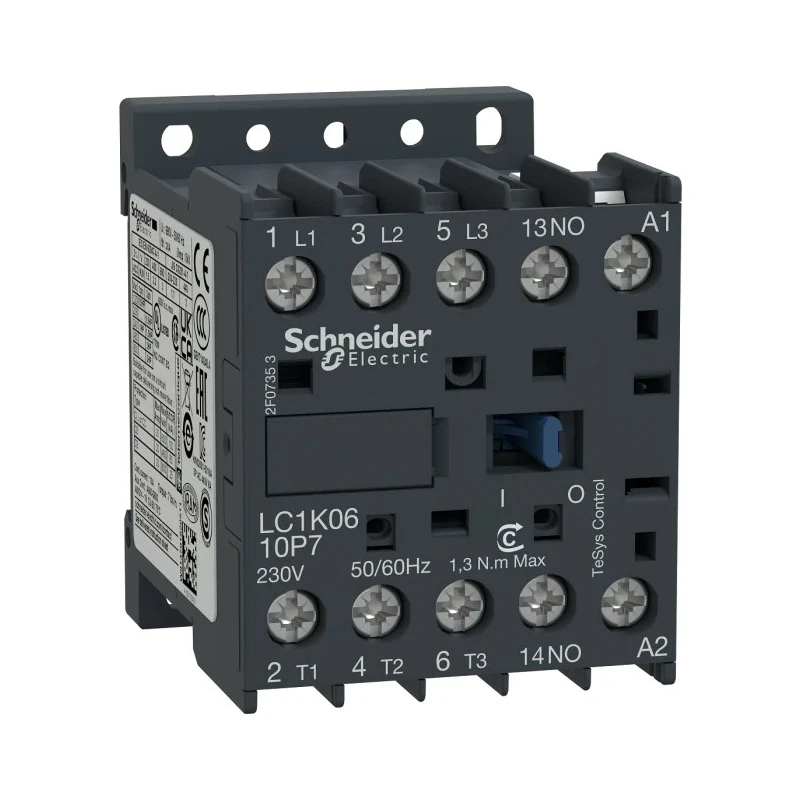

Schneider Electric 3-Pole Contactor LC1K0610P7 230V AC Coil 6 A 2.2 kW 690V AC 3 NO Auxiliary Contact
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LC1K0610P7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1K |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 6A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 6A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| WEG CWC Contactor, 230V ac Coil, 3-Pole, 7 A, 3 kW 230V ac, 3 NO, 690V acBrand | WEG |
Key Features
- Compact 3-pole contactor for efficient motor control applications.
- 230V AC coil compatible with 50/60Hz control circuits.
- Rated current of 6 A and power rating of 2.2 kW at 690V AC.
- Includes 1 normally open auxiliary contact for enhanced operational flexibility.
- DIN rail mountable with screw clamp terminals for secure connections.
- Operational from -25°C to +50°C for reliable performance.
- Compliance with international standards IEC, UL, CSA, CCC, EAC, and RoHS certified.
- Compact form factor with dimensions 58mm length, 45mm width, and 57mm depth.
Product Description
Schneider Electric LC1K0610P7 is a robust and compact 3-pole contactor designed primarily for motor control and resistive load switching in industrial and automation environments. Featuring a 230V AC coil compatible with both 50Hz and 60Hz control circuits, it offers reliable switching capacity of up to 6 A current and a power rating of 2.2 kW at 690V AC contact voltage.
Designed for mounting on standard DIN rails, the LC1K0610P7 includes screw clamp terminals that ensure secure and easy wiring connections. This contactor incorporates one normally open (NO) auxiliary contact to provide additional control functionalities vital for complex motor management systems.
The contactor is built to operate reliably within a temperature range from -25°C up to +50°C, making it suitable for varied industrial climates, particularly indoor controlled environments.
Its compact dimensions of 58mm length, 45mm width, and 57mm depth allow installation in dense electrical panels without compromising accessibility. The product conforms to multiple international standards including IEC, UL, CSA, CCC, and EAC, and meets environmental safety requirements with RoHS compliance.
Ideal for use in industrial motor control systems, automation processes, and machinery operation, the LC1K0610P7 can be complemented with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K) to extend its operational capabilities.
Compact 3-pole design for precise motor control applications. 230V AC coil supports flexible control circuit voltages at 50/60 Hz. Rated at 6 A, suitable for high voltage switching tasks. Incorporated 1 NO auxiliary contact enhances versatility.
Durable screw clamp terminals for secure and easy wiring. Operates efficiently across a wide temperature range (-25°C to +50°C). Conforms to international standards IEC, UL, CSA, CCC, EAC, with RoHS certification. Compact dimensions facilitate easy DIN rail and panel mounting.
Explore Schneider Electric Contactors and automation control gear on EnvMart for reliable industrial solutions.
