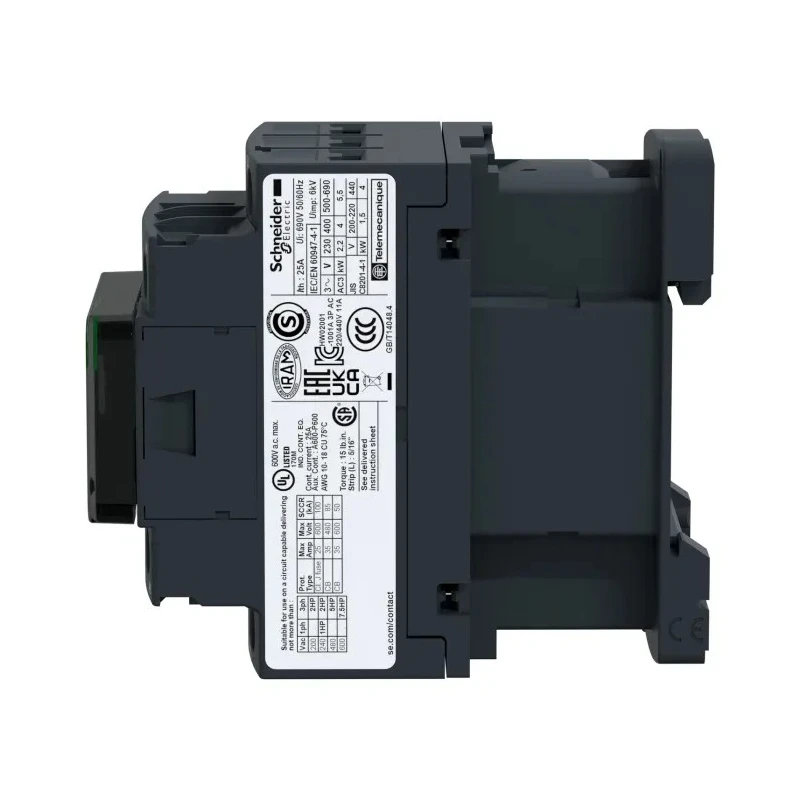

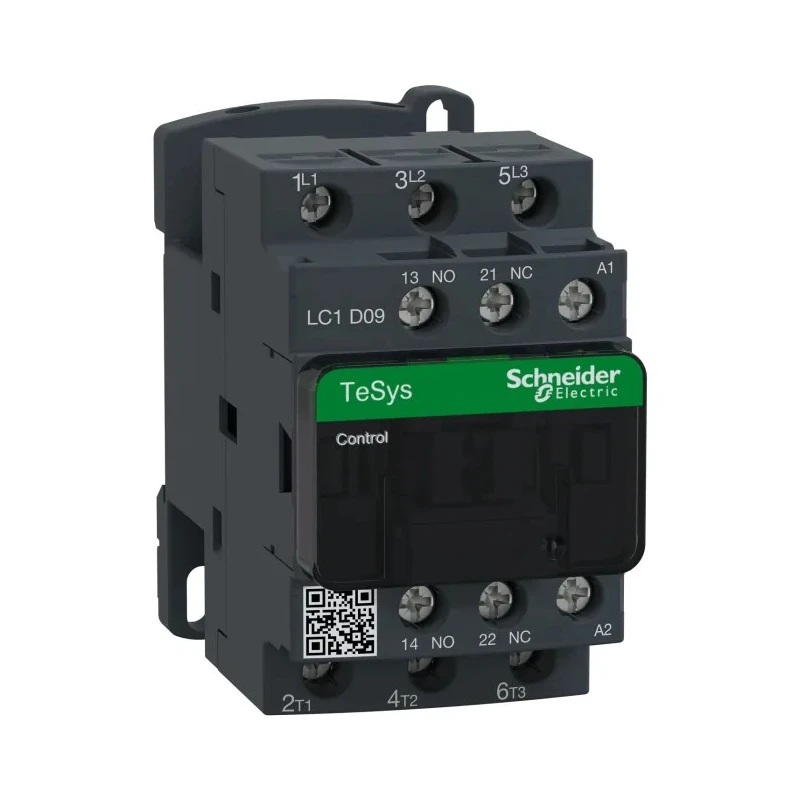

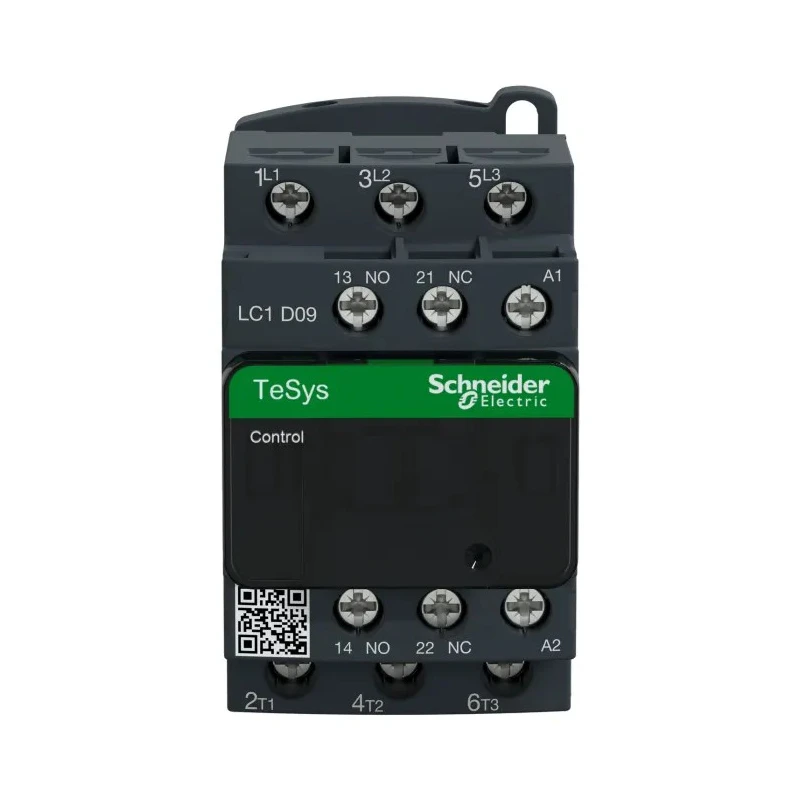

Schneider Electric LC1D Contactor 115V AC Coil, 3-Pole, 9A, 4kW Power, 3NO Main Contacts, 690V AC LC1D09FE7

Schneider Electric LC1D09FE7 Contactor is a high-quality 3-pole switching device designed for industrial motor control and resistive load applications. Featuring a 115V AC coil and rated for 9A operational current, this contactor supports power loads up to 4kW at voltages ranging from 380 to 440V, making it suitable for a wide range of industrial motors and general-purpose power circuits rated up to 690V AC. It is compliant with standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL.

This contactor facilitates reliable switching for motor starters, conveyor handling systems, and resistive heating controls in process plants. Its 3 NO main contacts allow effective three-phase power interruption, while the auxiliary contacts (1 NO / 1 NC) support signaling and interlocking functions.

Mounting flexibility is provided by plate or rail options, and the screw clamp terminals ensure secure and robust electrical connections. The operational temperature range from -5°C to 60°C enables dependable performance in diverse industrial environments.

The coil requires approximately 70VA during pull-in and maintains around 7 to 7.5VA holding power depending on frequency. It withstands short-time fault currents of 210A for 1 second and 105A for 10 seconds at 40°C, ensuring resilience under transient electrical faults.

Rated 9A operational current suitable for AC-3 motor switching duties. 115V AC coil voltage compatible with 50/60Hz control circuits. 3 NO contact configuration for three-pole motor control. Auxiliary contacts provide 1 NO and 1 NC for control signaling.

Screw clamp terminals for secure wiring connections. Support for resistive and motor control applications. Compact dimensions: Length 77mm, Width 45mm, Depth 84mm. Mount type options include plate and rail mounting. Designed for disassembly, aligning with environmental and sustainability considerations.

This Contactor is ideal for industrial automation applications including motor starters in workshops, conveyor system controls, and process plant heating elements control. It offers a robust and reliable solution for electrical panel installations requiring precise switching and control of electrical loads at voltages up to 690V AC.
