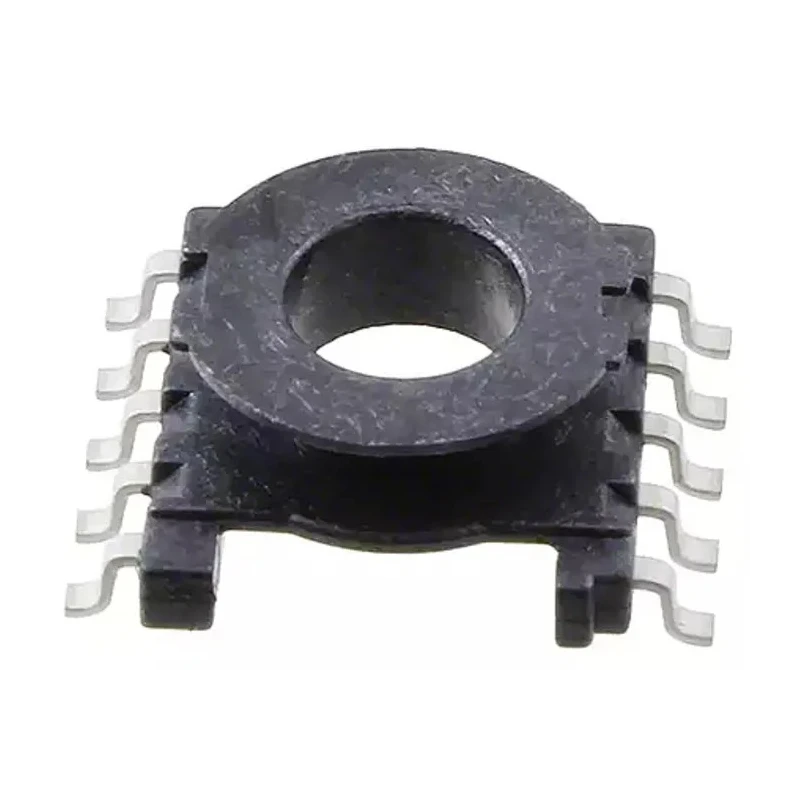

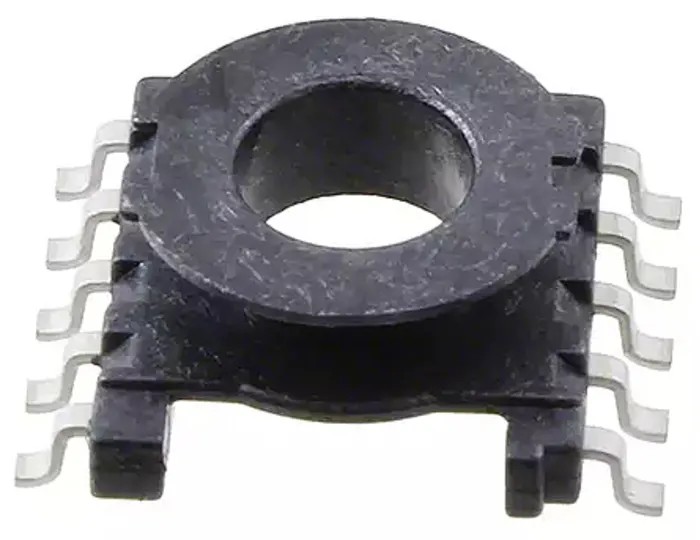

TDK SMD Coil Former for use with ER 11/5 Core Fibreglass Reinforced Liquid Crystal Polymer 10-Pin B65526B1010T001

Free Delivery in India | Lowest Global Shipping Charges

TDK SMD Coil Former for use with ER 11/5 Core Fibreglass Reinforced Liquid Crystal Polymer 10-Pin B65526B1010T001



Category Transformer Accessories Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Material	Fibreglass Reinforced Liquid Crystal Polymer
Length	12.3mm
Model	B65526B1010T001
Depth	4.7mm
Width	10.5mm
Maximum Operating Temperature	155°C
Accessory Type	SMD Coil Former
For Use With	ER 11/5 Core
Standards/Approvals	RoHS
Number of Pins	10

Key Features

Constructed from Fibreglass Reinforced Liquid Crystal Polymer for durability.
Compatible for use with ER 11/5 Core transformers.
Features 10 pins for secure mounting and electrical connections.
Maximum operating temperature rated at 155°C for reliable performance in demanding environments.
Compact dimensions with length 12.3 mm, width 10.5 mm, and depth 4.7 mm.
RoHS compliant ensuring environmentally safe manufacturing standards.
Solderability meets IEC 60068-2-58 for robust assembly quality.
Designed for use in transformer and power supply applications requiring stable coil mounting.

Product Description

TDK B65526B1010T001 SMD Coil Former for use with ER 11/5 Core is engineered as a high-performance accessory made from Fibreglass Reinforced Liquid Crystal Polymer (GFR LCP). This material selection provides excellent electrical insulation and thermal stability with an operating temperature up to 155°C, making it ideal for power supply and transformer applications.

The coil former features 10 pins and gullwing terminals, facilitating easy surface-mount soldering and durable electrical connections. Its compact size, measuring 12.3 mm in length, 10.5 mm in width, and 4.7 mm in depth, ensures effective space utilization in compact transformer designs.

Designed specifically for compatibility with ER 11/5 Cores, this coil former supports efficient coil winding and improves overall transformer reliability. It meets RoHS environmental compliance and is made with materials that conform to insulation class UL94 V-0 according to IEC 60085, promoting long-term operational safety.

This accessory is widely used in industrial electronics, power supplies, control equipment, and transformer manufacturing sectors where thermal resistance and mechanical strength are critical for performance and longevity.

Constructed from Fibreglass Reinforced Liquid Crystal Polymer for durability. Compatible with ER 11/5 Core transformers. Features 10 pins for secure electrical connections. Maximum operating temperature of 155°C ensures reliability under heat stress.

Compact footprint supporting space-efficient transformer design. RoHS compliant to meet international environmental standards. Solderability validated by IEC 60068-2-58 for assembly quality. Ideal for industrial, electrical, and power applications.

This TDK coil former ensures excellent thermal durability and electrical insulation in transformer accessory applications. Explore more Transformer Accessories and related components at EnvMart for your industrial and electronic manufacturing needs.
