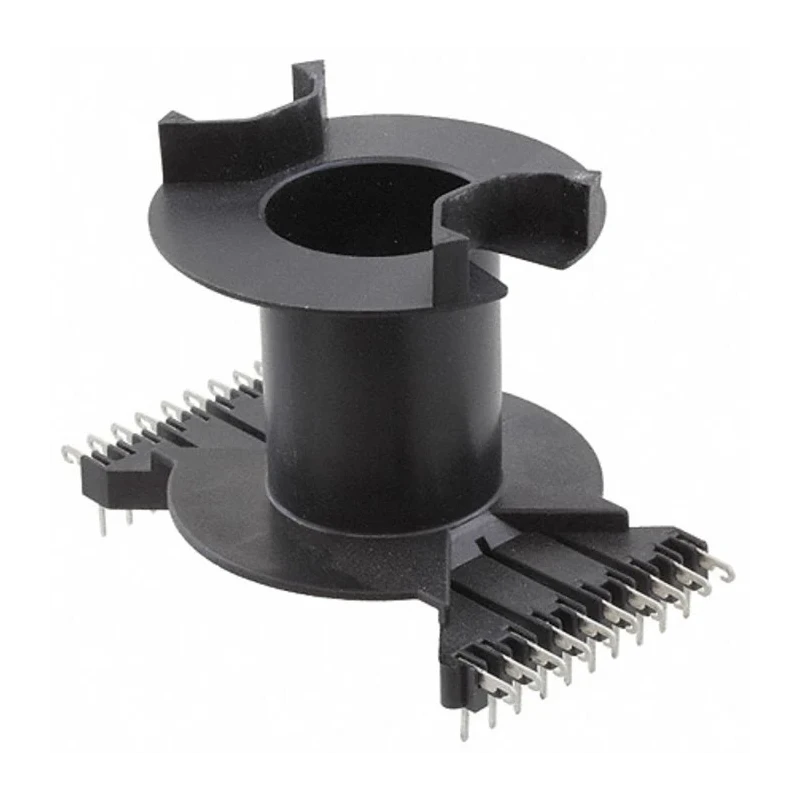

TDK Vertical Coil Former for Use with PM 87 x 70 Core Fibreglass Reinforced PolyTerephthalate 20 Pins B65714K1020T001

TDK B65714K1020T001 vertical coil former is specifically designed for efficient use with PM 87 x 70 transformer cores. Made from high-quality fibreglass reinforced polyterephthalate material, it assures excellent mechanical strength and thermal resistance, suitable for demanding electrical transformer applications.

With a maximum operating temperature of 155°C, this coil former withstands elevated thermal conditions, ensuring longevity and stable electromagnetic characteristics. Featuring 20 pins, the design accommodates robust coil winding and mounting, enhancing transformer assembly integrity.

The product dimensions of approximately 87.6 mm in length and 66.2 mm in width provide a compact form factor ideal for various transformer designs. It is part of the B65713 and B65714 series, widely recognized for quality and compatibility in transformer accessories.

Manufactured in the Czech Republic, this coil former complies with stringent industrial standards, suitable for industrial, commercial, and laboratory transformer manufacturing and repair environments.

Compatible with PM 87 x 70 transformer cores. Durable fibreglass reinforced polyterephthalate construction. 20 pins support secure coil mounting. Maximum operating temperature of 155°C ensures thermal stability. Compact dimensions of 87.6 mm length and 66.2 mm width.

Belongs to B65713 and B65714 series. Manufactured in Czech Republic for assured quality.

This vertical coil former is essential for transformer manufacturing and repair, providing reliable coil support and alignment. It is ideal for use in electronic component production, power supply units, and related industrial applications.
