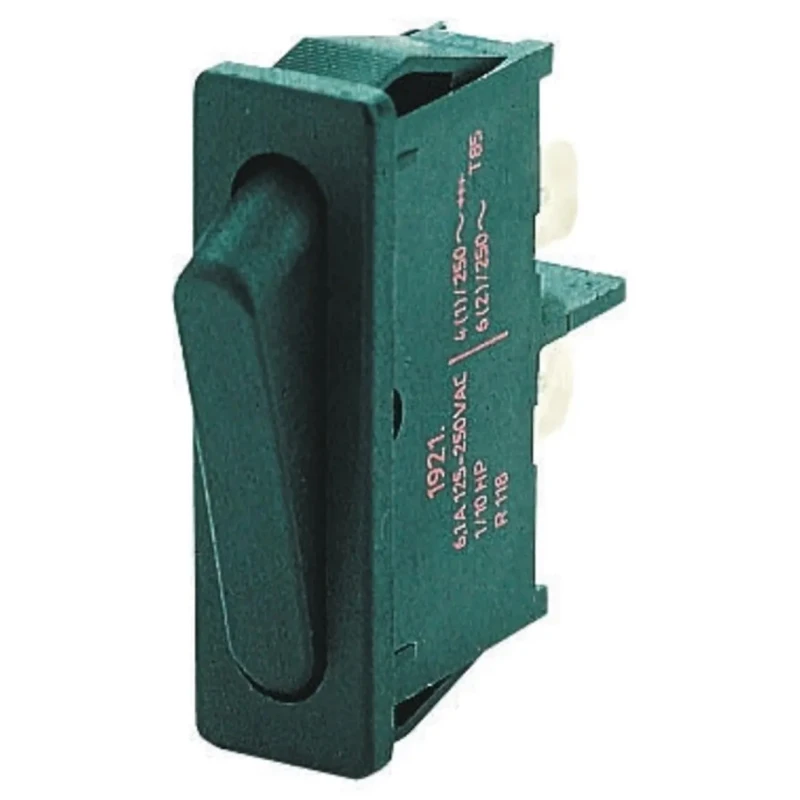

Marquardt SPST On-Off Rocker Switch Panel, Black Actuator, Polyamide Housing, Panel Mount, 250V AC, 6A, Model 1921.1102
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Marquardt |
| IP Rating | IP40 |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | 1921 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 30.2 x 6.8 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | UR, EN, CSA |
| Switch Operation | On-Off |
| Actuator Colour | Black |
| Actuator Style | Rectangular |
| Switch Contact Current | 6A |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 250V ac |
| Legend | Blank |
Key Features
- This rocker switch is designed for panel mounting with a compact cutout size of 30.2 x 6.8 mm.
- It features a SPST contact configuration and supports up to 6A switch contact current at 250V AC.
- The actuator is rectangular and non-illuminated with a sleek black color.
- The switch housing ensures a secure fit for panels with thickness between 0.75 and 3 mm.
- Rated IP40 for protection, it operates reliably from -20°C to 85°C.
- The switch is built for longevity with a mechanical life of 1,000,000 cycles.
- It uses quick connect 4.8mm Faston terminals for easy electrical connection.
- High inrush current capacity up to 50A makes it suitable for capacitive loads.
Product Description
Marquardt 1921.1102 SPST On-Off Rocker Switch Panel is a high-quality electrical component designed for reliable switching in various industrial, commercial, and automation applications. Featuring a black rectangular actuator and robust polyamide housing, this rocker switch suits panel mounting with a precise cutout size of 30.2 x 6.8 mm and panel thickness compatibility between 0.75 and 3 mm.
It supports a maximum switch contact current of 6A at 250V AC with a SPST (Single Pole Single Throw) contact configuration, making it suitable for controlling electrical circuits with on-off functionality. The switch is non-illuminated and built with quick connect 4.8mm Faston terminals for efficient electrical connections.
This rocker switch is engineered for durability, offering a mechanical lifecycle of 1,000,000 cycles and capable of handling high inrush currents up to 50A, important for capacitive loads. The IP40 rating provides protection against solids larger than 1mm, suitable for general indoor applications where dust protection is required.
Operating reliably within temperature ranges of -20°C to 85°C, the switch complies with recognized standards including UR, EN, and CSA, and features UL 94 V-2 flammability rating for safe usage.
Typical use cases include electrical switch panels, home appliances, industrial machines, and automation systems where a dependable on-off switch is required. Manufactured in Mexico, the switch combines quality materials and precision engineering to meet demanding operational requirements.
This rocker switch panel is part of the Marquardt 1900 series known for slimline profile and reliable performance. Its high contact resistance of 100MΩ ensures minimal voltage drop across contacts. The snap-fit housing design with fixing ribs guarantees tight panel installation without the need for additional hardware.
The polyamide material housing enhances electrical insulation and mechanical stability. It is an ideal solution for Class II appliances and general electrical automation systems requiring compact and robust switching. Explore the full range of Marquardt Rocker Switches in the EnvMart catalog to find components tailored to your industrial and commercial electrical switch requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this rocker switch is 6A at 250V AC.
The required panel cutout size for installation is 30.2 x 6.8 mm.
This model operates reliably within a temperature range of -20°C to 85°C.
It uses quick connect 4.8mm Faston terminals for easy electrical connections.
The mechanical life of this rocker switch is rated at 1,000,000 cycles.
The housing of this switch is made from polyamide, providing good electrical insulation and mechanical stability.
This rocker switch has an IP40 rating, providing protection against solids larger than 1mm.
This switch complies with recognized standards including UR, EN, and CSA.
The actuator style is rectangular and it is colored black.
This rocker switch is suitable for applications such as electrical switch panels, home appliances, industrial machines, and automation systems.
The switch can handle a high inrush current capacity of up to 50A, making it suitable for capacitive loads.
This switch is compatible with panel thicknesses ranging from 0.75 mm to 3 mm.
