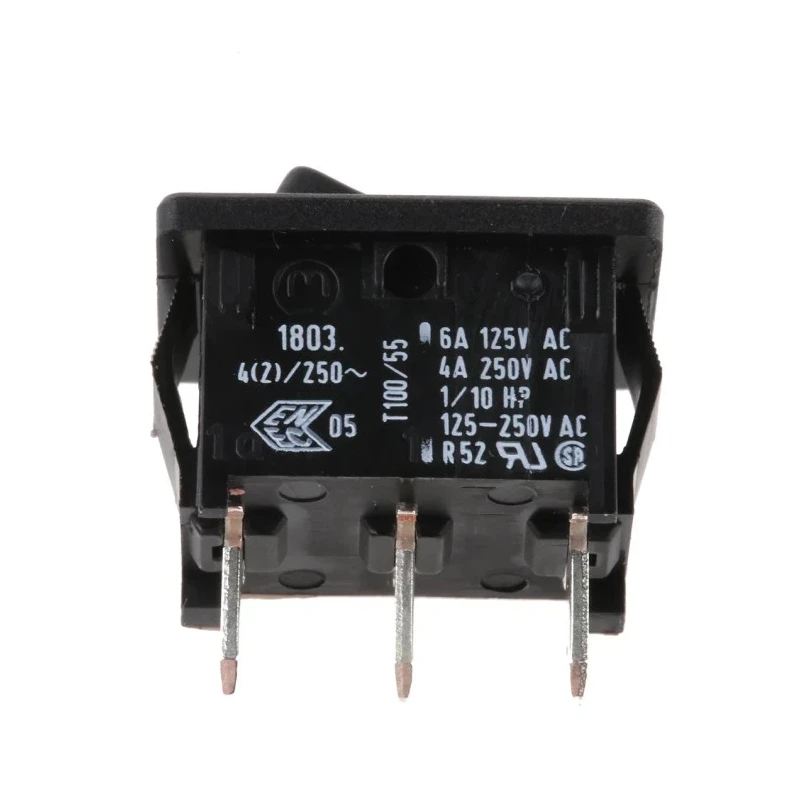

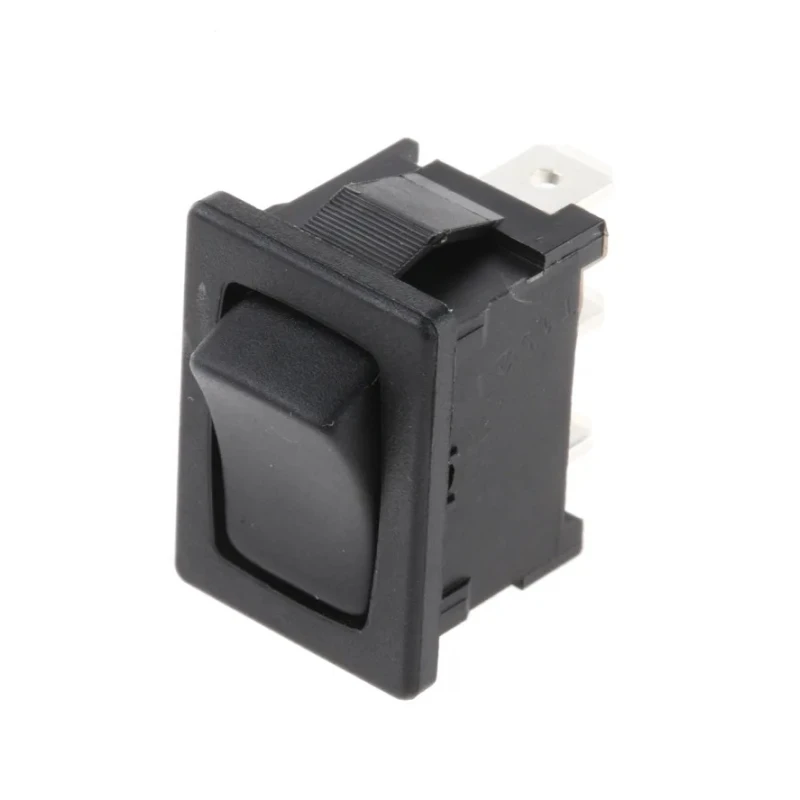

Marquardt SPDT On-On On-(On) Polyamide Housing Rocker Switch Panel 1803.1202

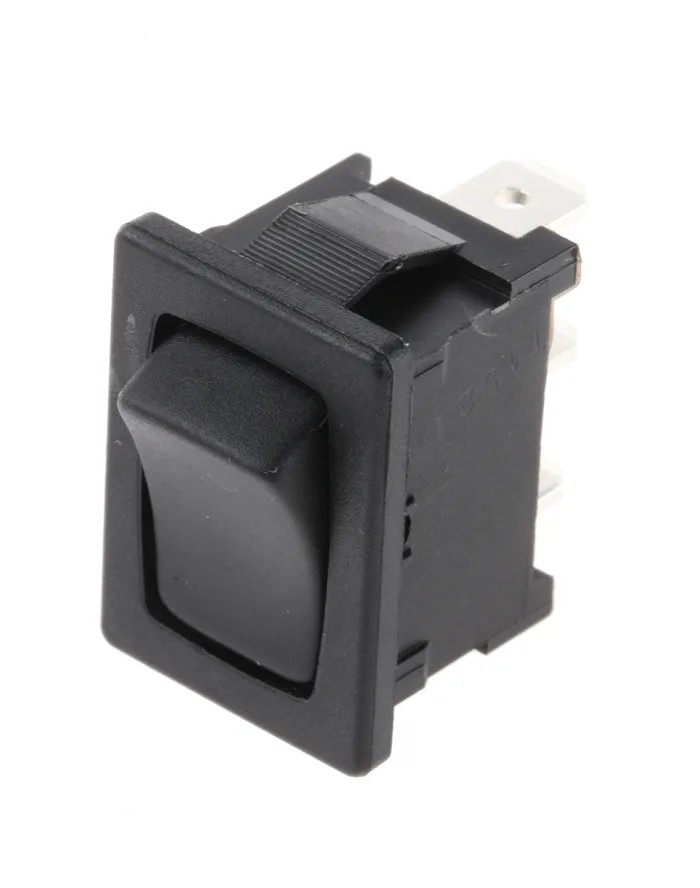

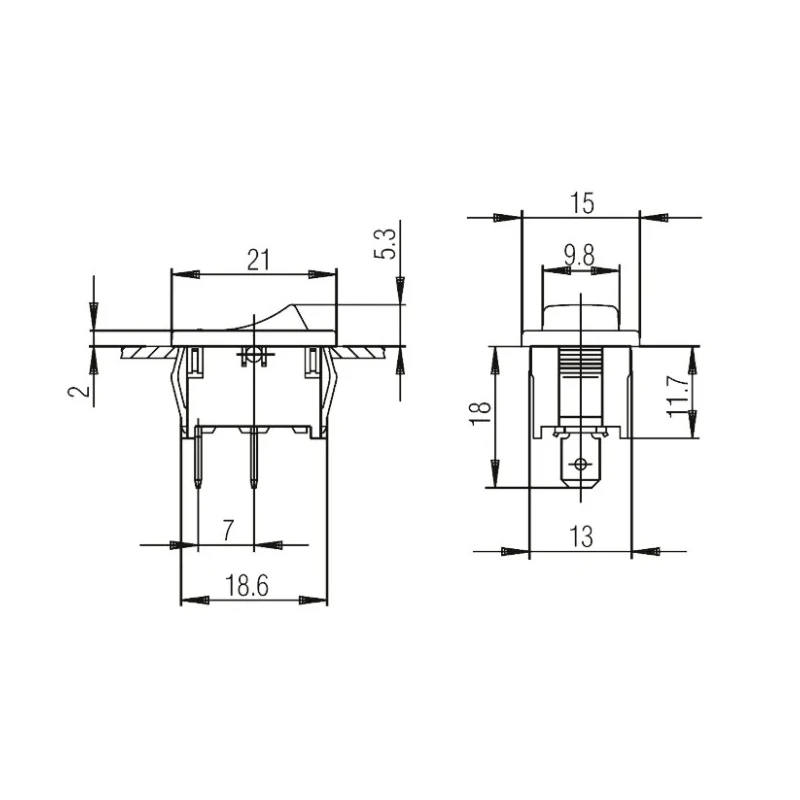

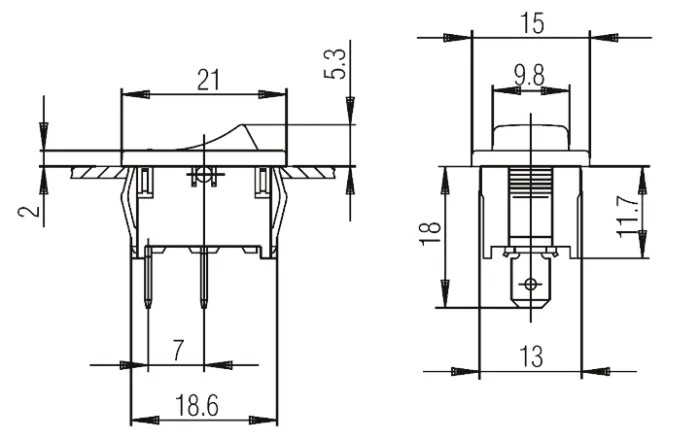

Marquardt 1803.1202 is a reliable SPDT On-On On-(On) rocker switch panel with a durable polyamide housing designed for panel mounting in electrical and automation systems. Its rectangular black actuator provides tactile and user-friendly operation while fitting securely into panel cutouts measuring 19.4 x 12.9 mm.

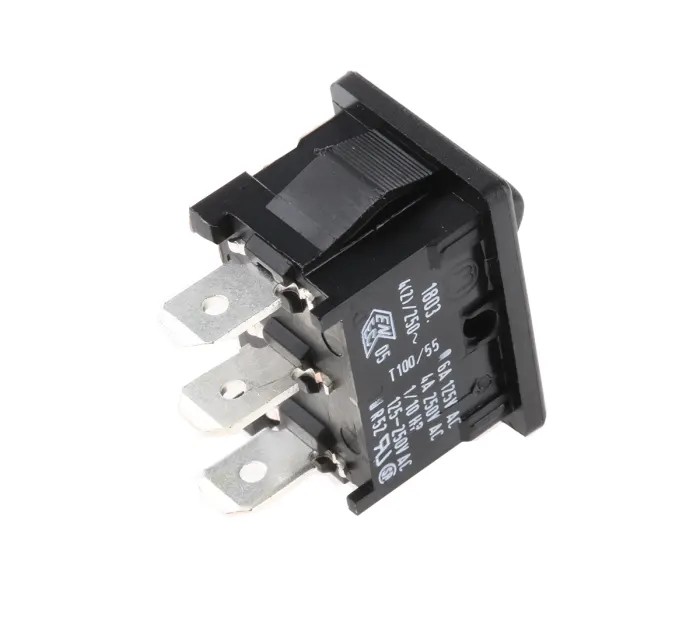

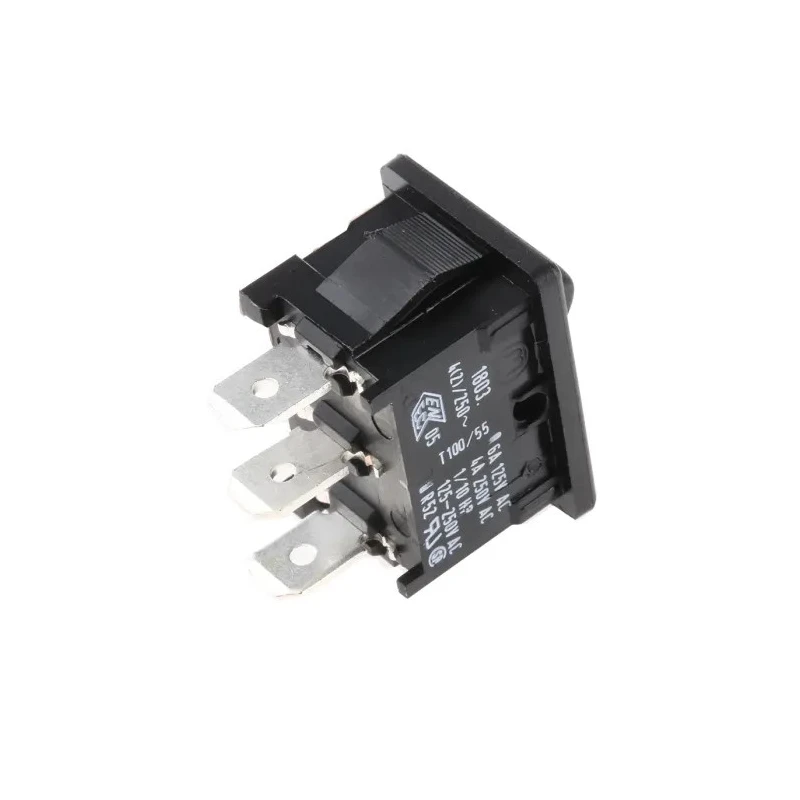

This rocker switch supports a contact current rating of 4A, enabling its use in Class II appliances and general electrical equipment. It features quick connect terminals for efficient wiring and installation.

The switch operates within a temperature range of -20°C to 55°C, making it suitable for use in various industrial, HVAC, manufacturing, and commercial environments where reliable switching is essential. It meets multiple international standards including RoHS, UL, CE, BS, CSA, and VDE, ensuring compliance with safety and environmental regulations.

Designed for longevity, the 1803.1202 has a mechanical life of 100000 operations. Although non-illuminated, its design supports easy integration with control panels and automation setups requiring precise on/off and changeover control functions. The switch configuration supports multiple switching states with On-(On) options, facilitating flexible electrical control.

This product is rated IP40, providing protection against solid objects greater than 1 mm and making it suitable for general indoor electrical panel applications. The actuator style is rectangular, with a robust polyamide housing that snap fits panels with thickness ranging from 0.75 to 3 mm, ensuring a secure fit without additional hardware.

Marquardt rocker switches are ideal for industrial automation, electrical panels, HVAC control systems, and equipment manufacturing where reliable and durable switching solutions are mandatory.

Choose Marquardt 1803.1202 rocker switch panel for dependable electrical control with assured quality and compliance. Explore more Rocker Switches and electrical components in the Electronics & Electricals category on EnvMart.

The switch features a single-pole double-throw (SPDT) contact configuration. Designed for panel mounting with a cutout size of 19.4 x 12.9 mm. Operates at 4A contact current with quick connect terminals. Black rectangular actuator style with no illumination.

Built for robust use with mechanical life rated for 100000 operations. Operating temperature range from -20°C to 55°C suitable for diverse environments. Rated IP40 for protection against solid objects larger than 1 mm. Complies with RoHS, UL, CE, BS, CSA, and VDE standards ensuring safety and quality.

Suitable for AC voltage up to 250V and DC voltage up to 28V.
